Jerr-Dan carriers deliver the strength, stability and rapid hydraulics you need for more efficient loading and unloading that get you to the next job, faster. We spec and build them better because we care about the folks working them! We collaborate with tow companies to build value in the products we offer. All the right options to make your operators job easier, safer and faster are included on our towing & recovery equipment! Lots of lighting for visibility, extra tie down points for easier loading and options to help keep operators away from danger including dual winch release.
.

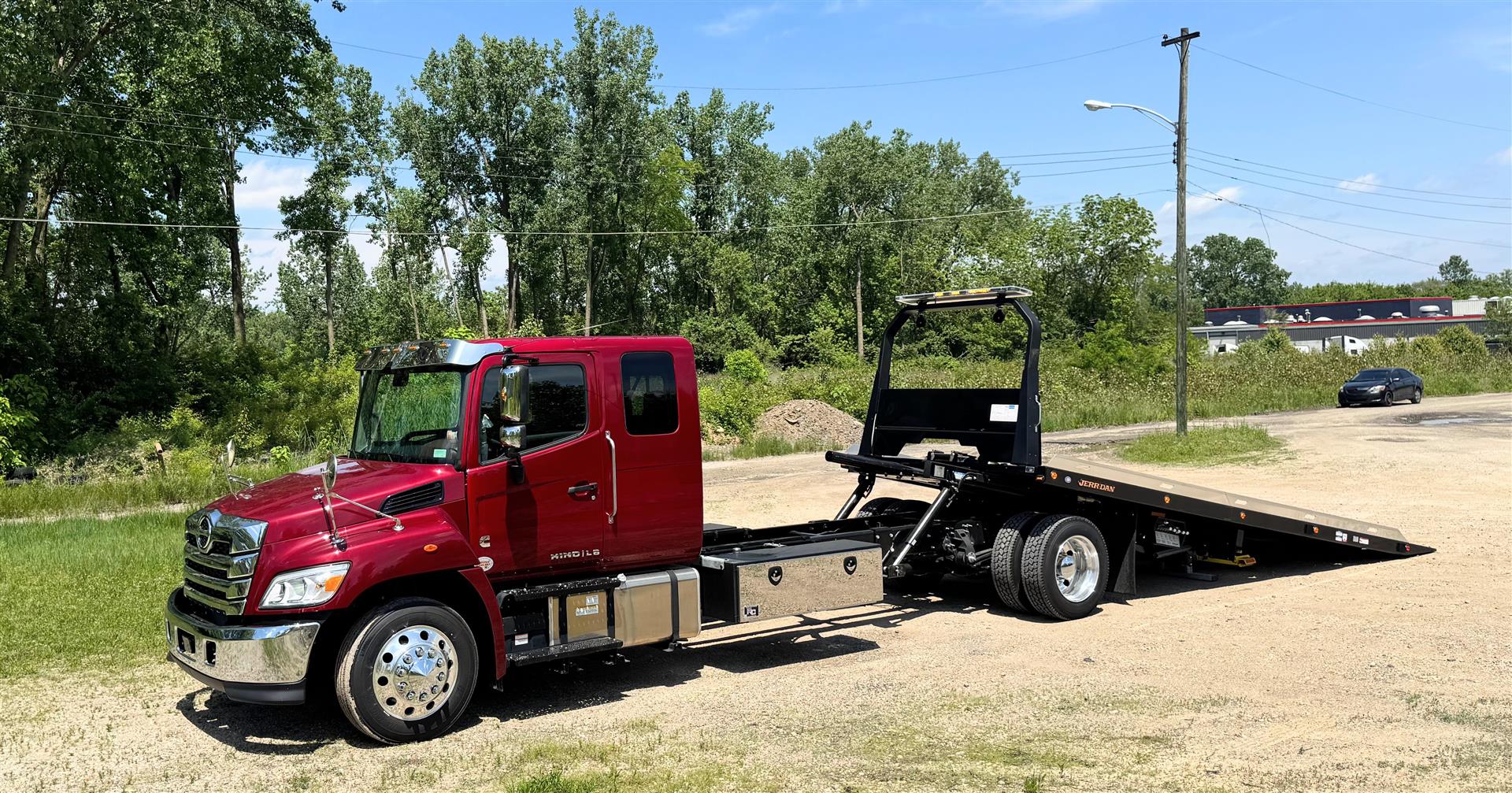

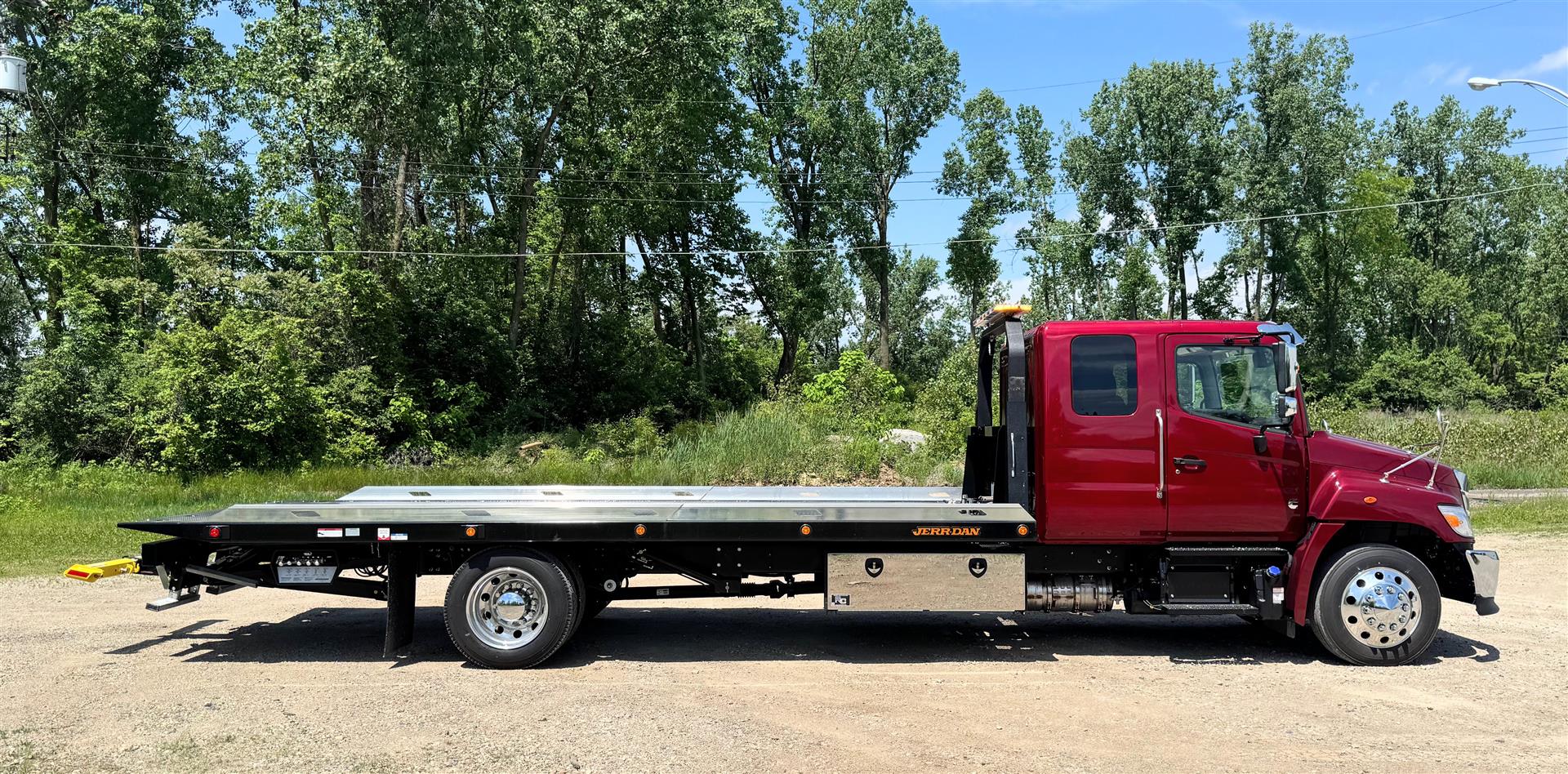

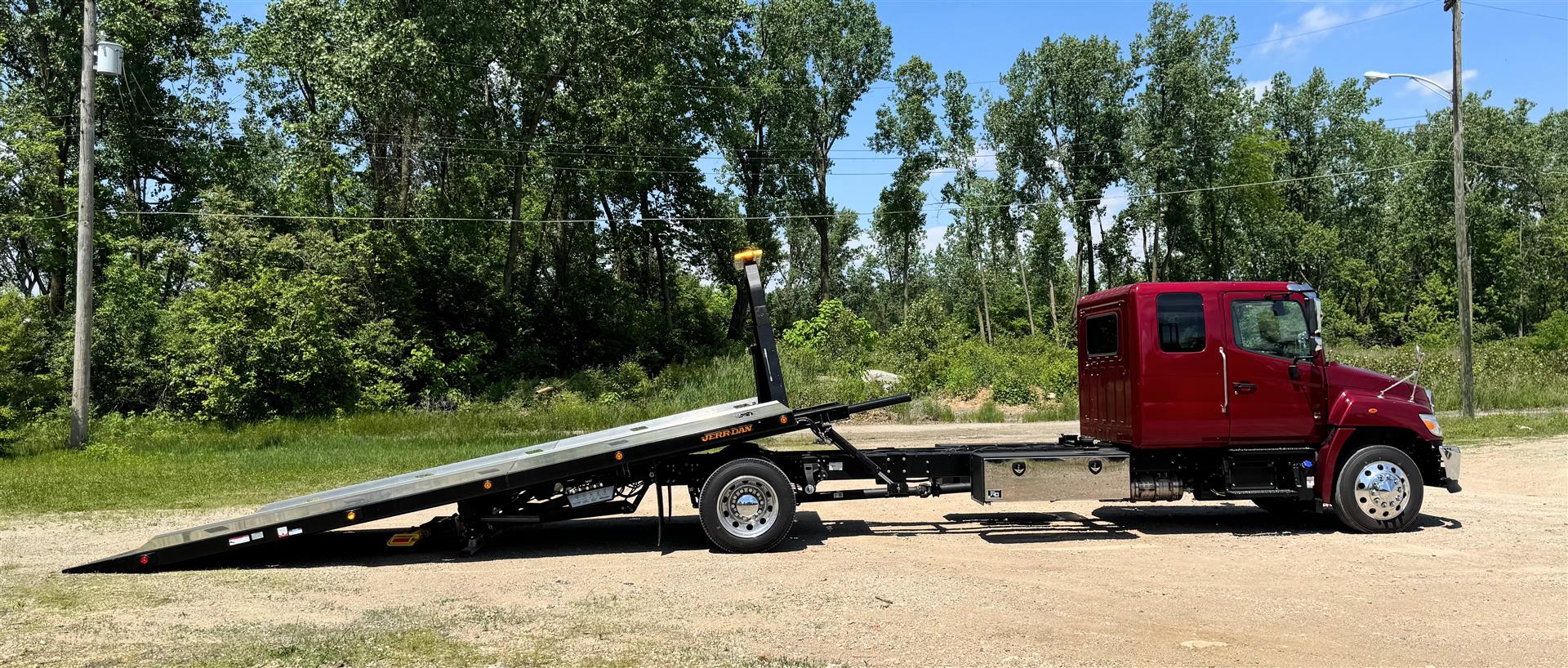

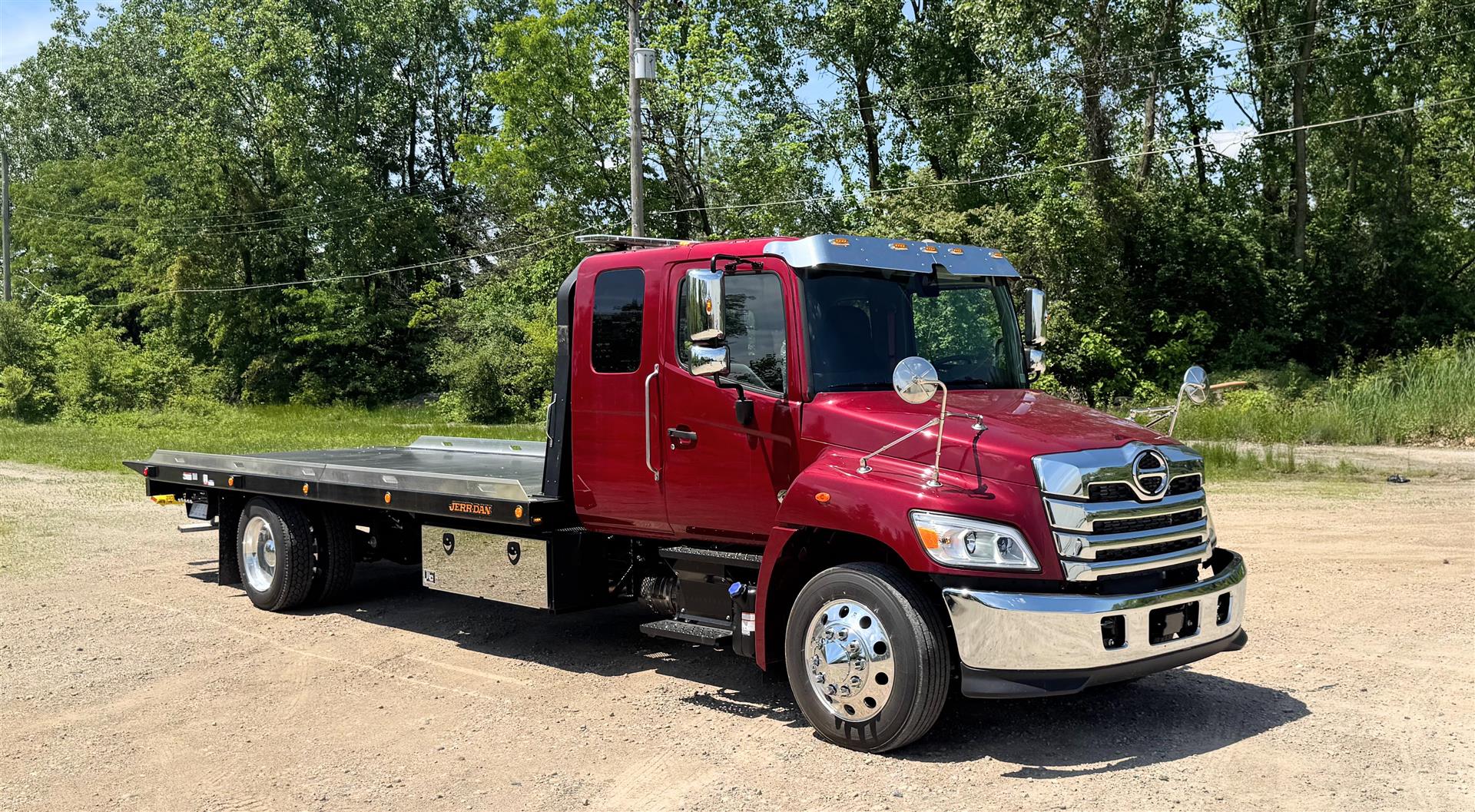

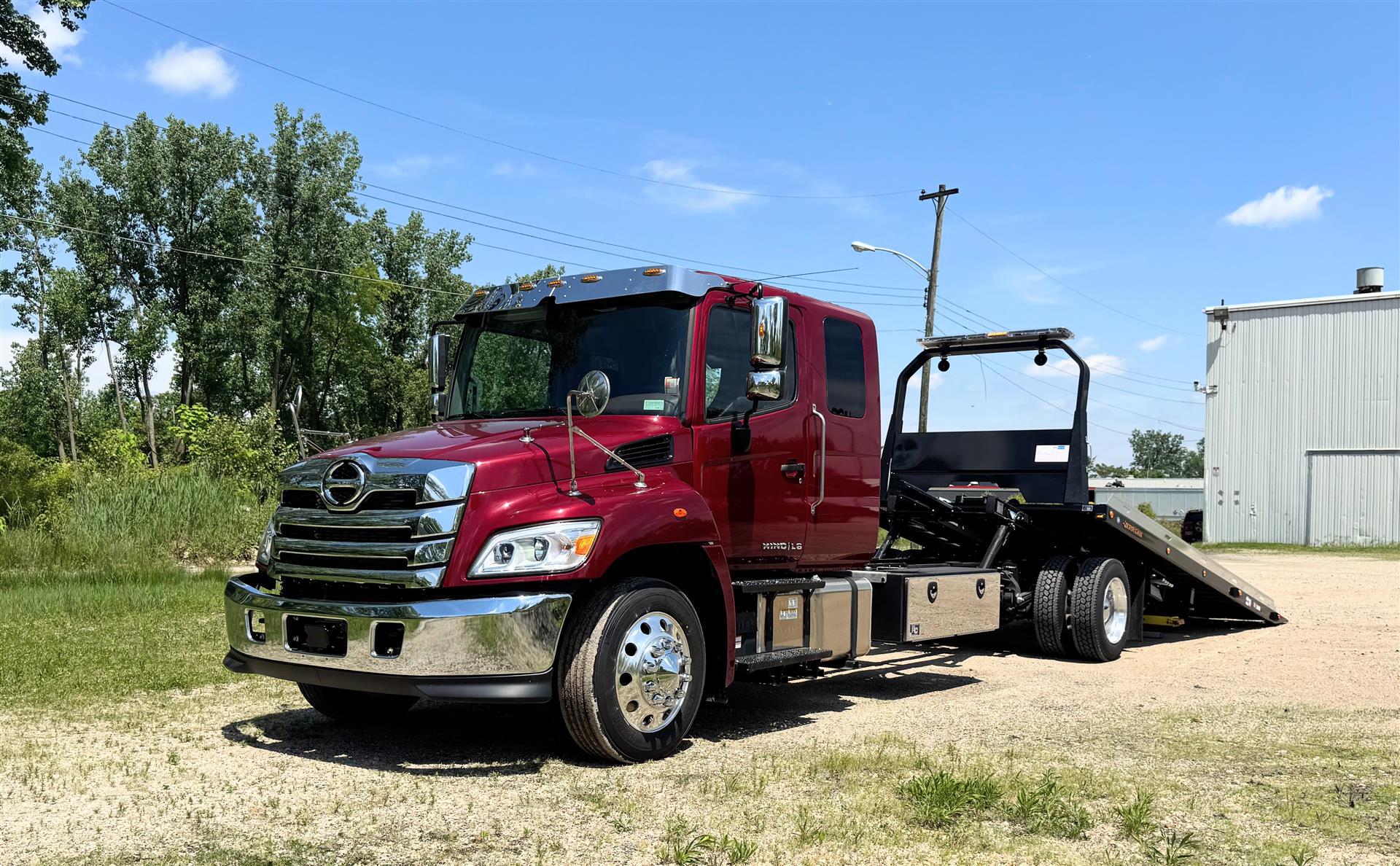

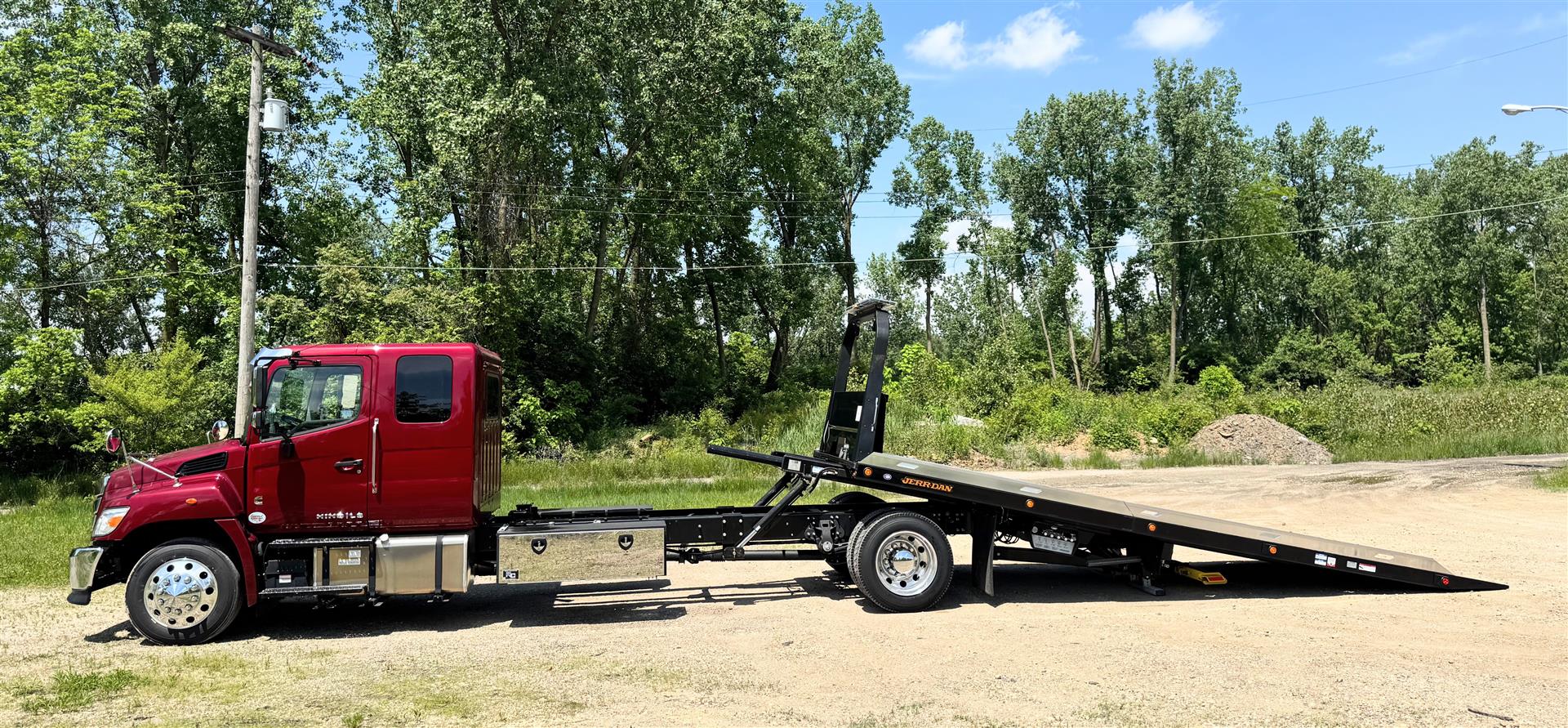

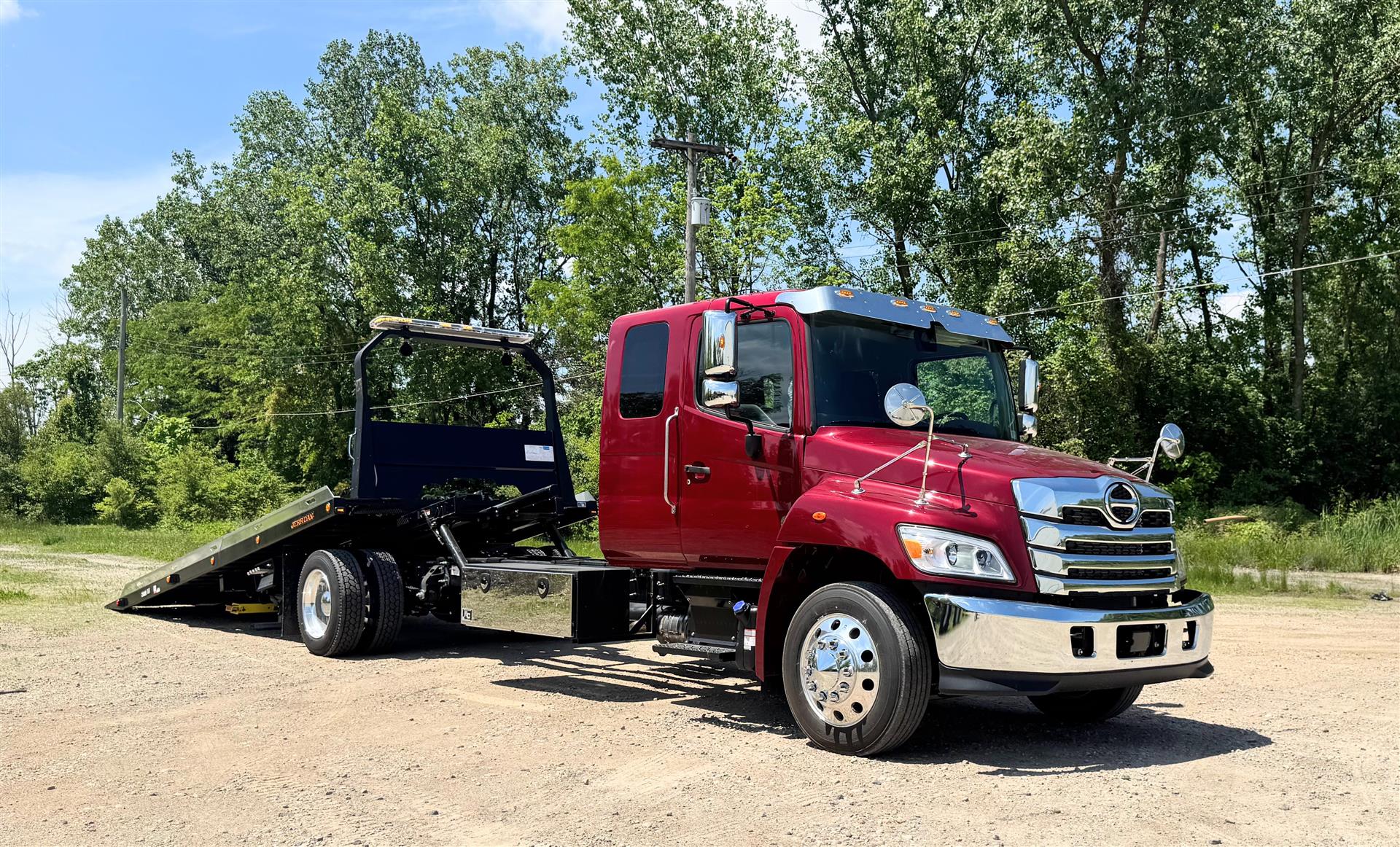

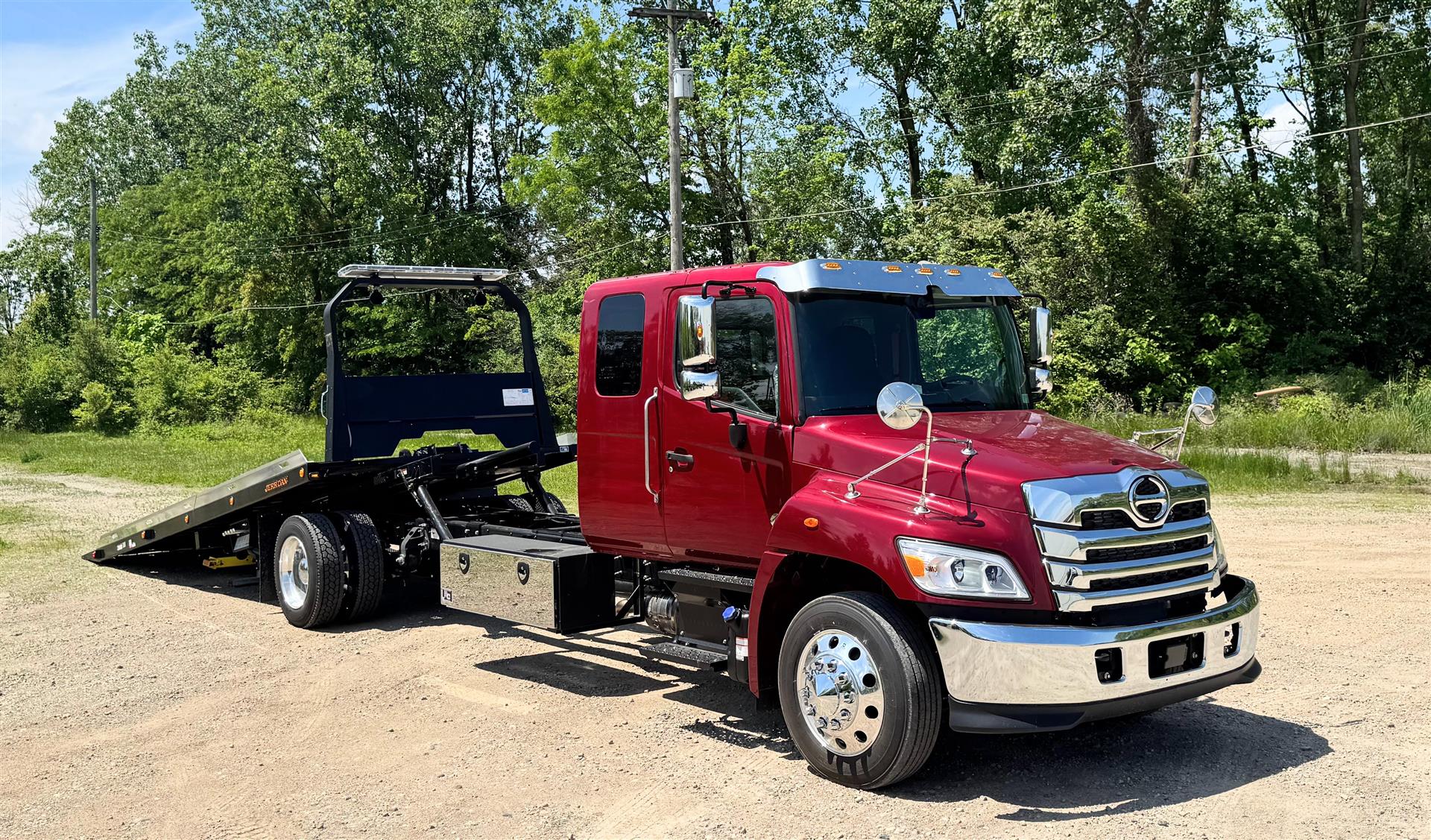

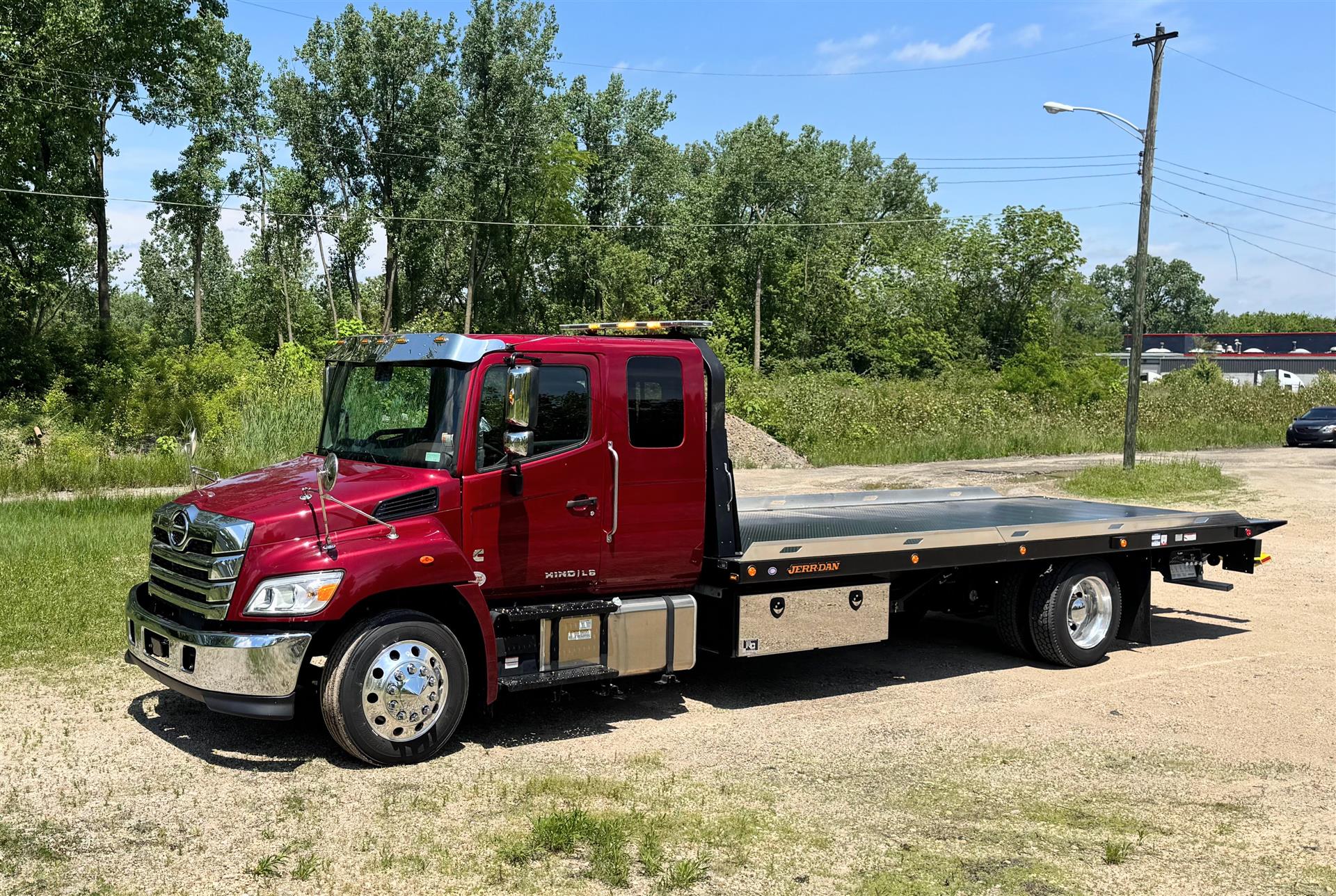

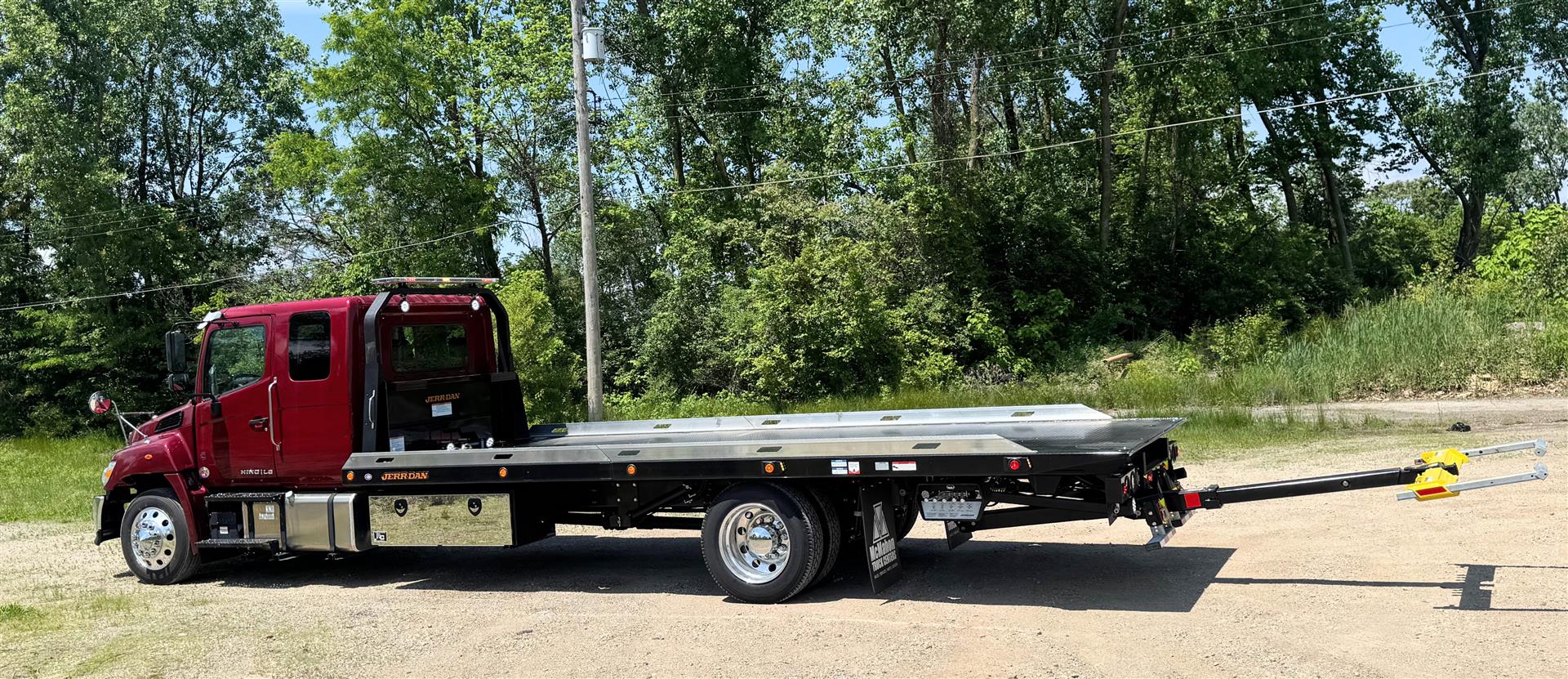

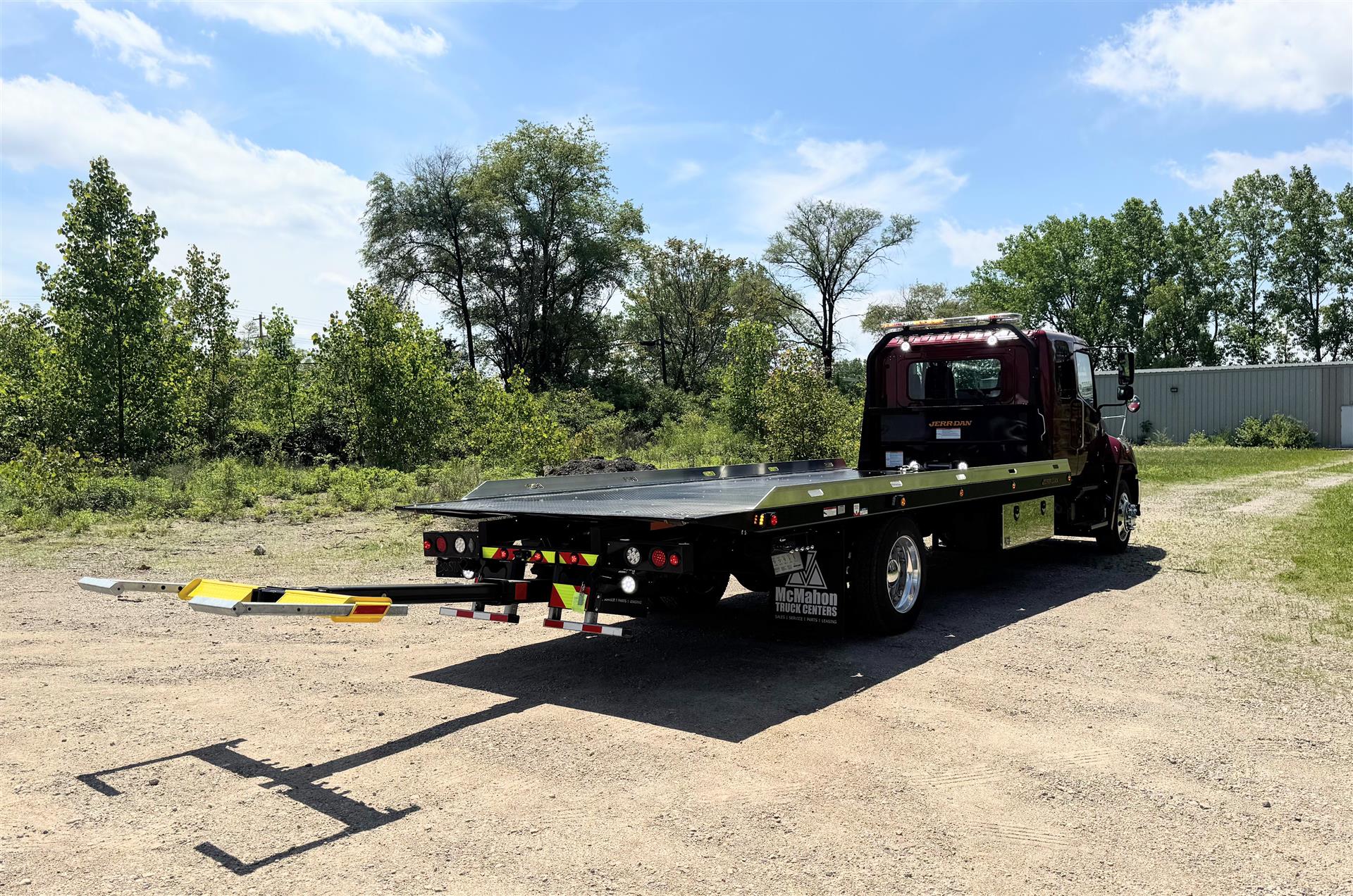

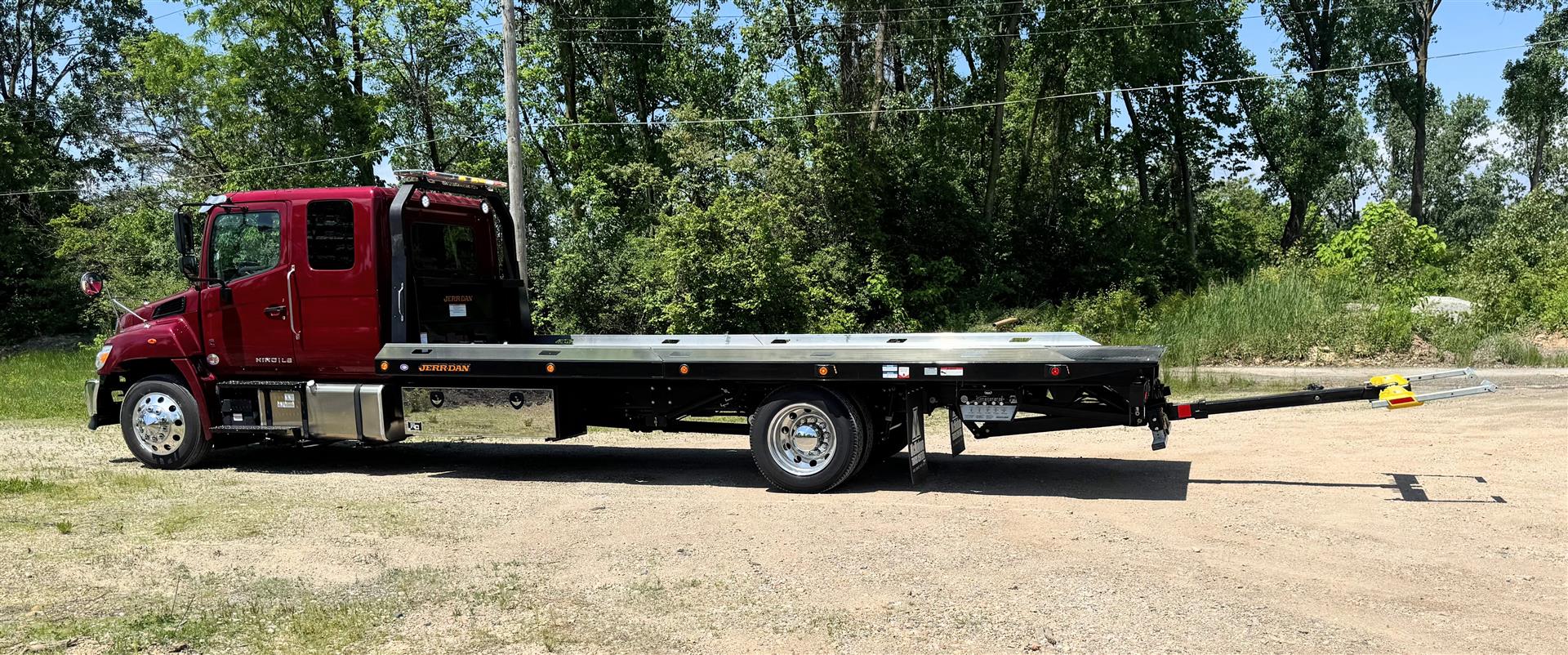

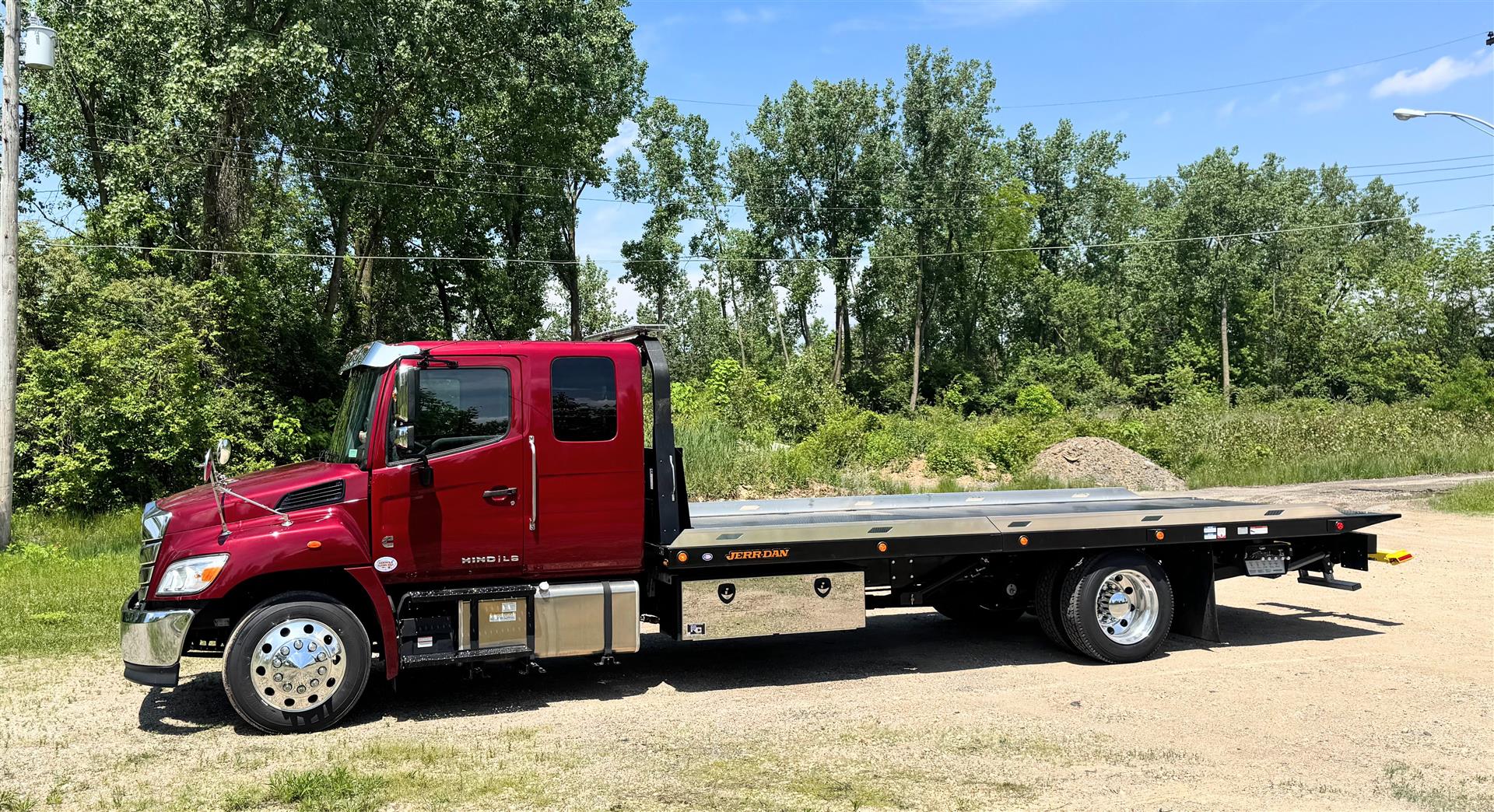

Equipment: 22’ Long x 102" Wide Steel Low Profile Carrier

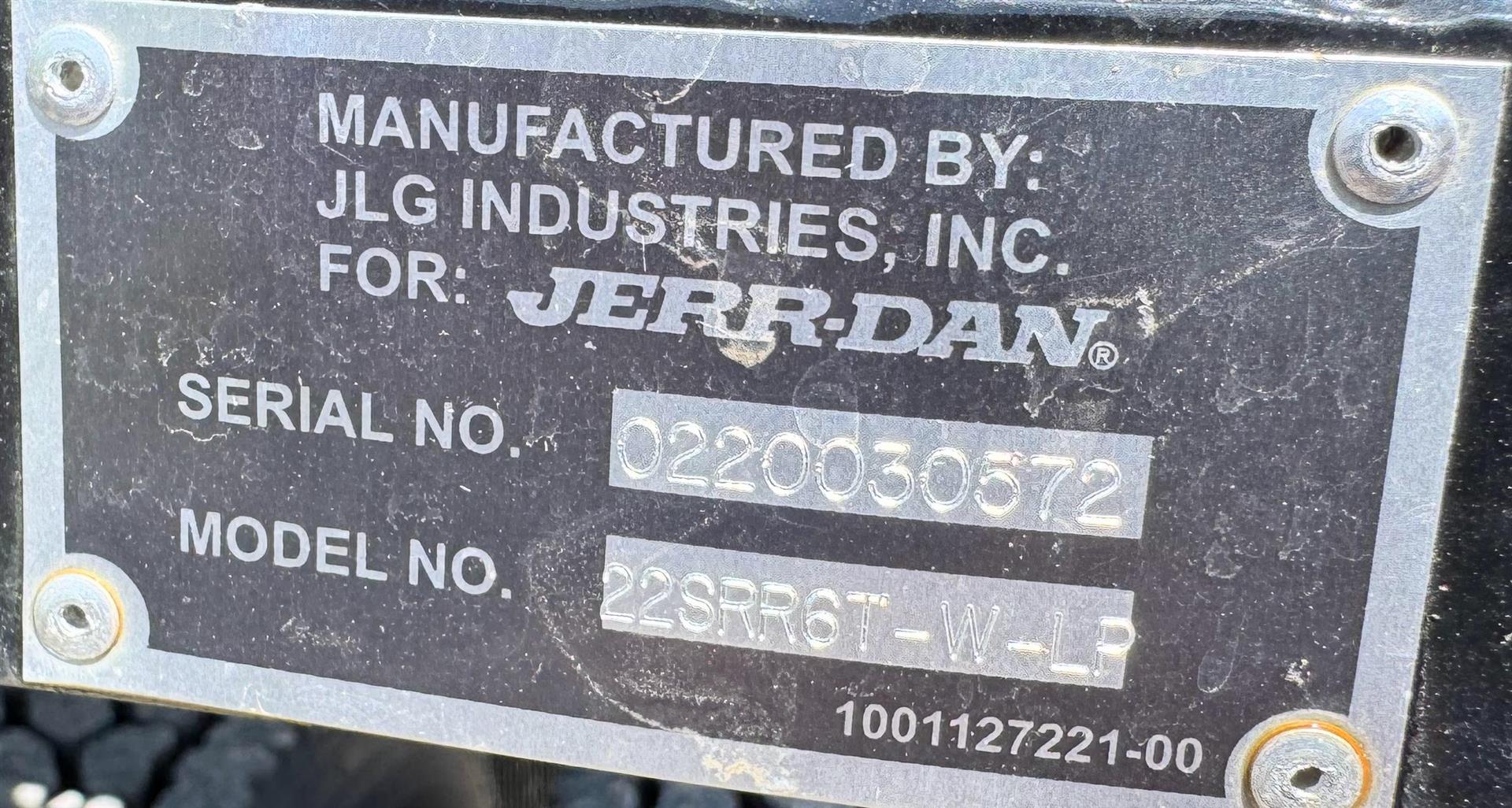

Serial: 0220030572
Model Carrier:
1 6-Ton Steel XLP
Standard Features:
1 •Standard LED Marker Lights (5 Pair Evenly Spaced along Outside Rubrail)
1 •Standard Keyslots (2 Keyslots @ Front, 6 Keyslots Along Rubrail, 4 Keyslots Across Rear)
1 •Painted Subframe for 6-Ton Low Profile Carrier
Deck:

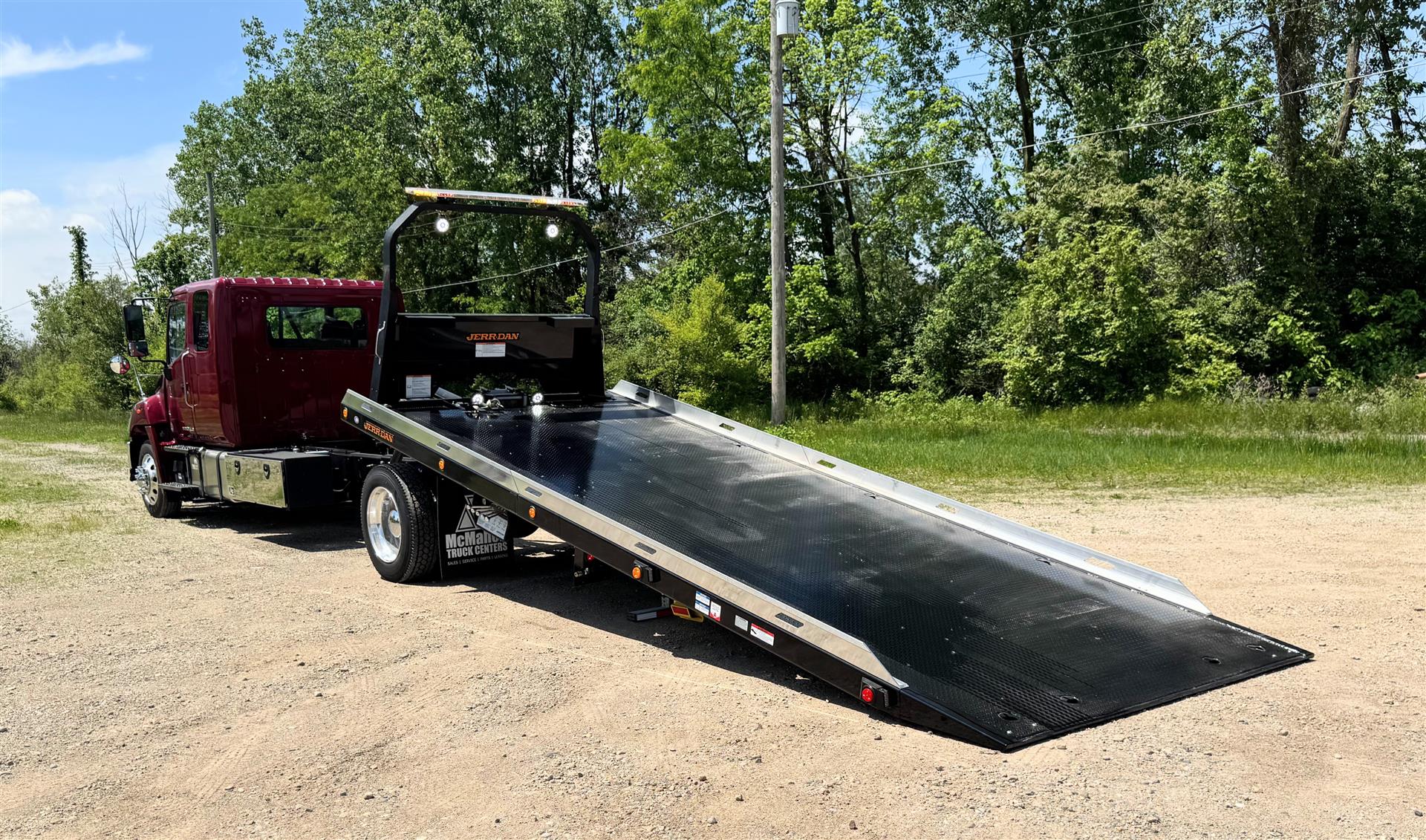

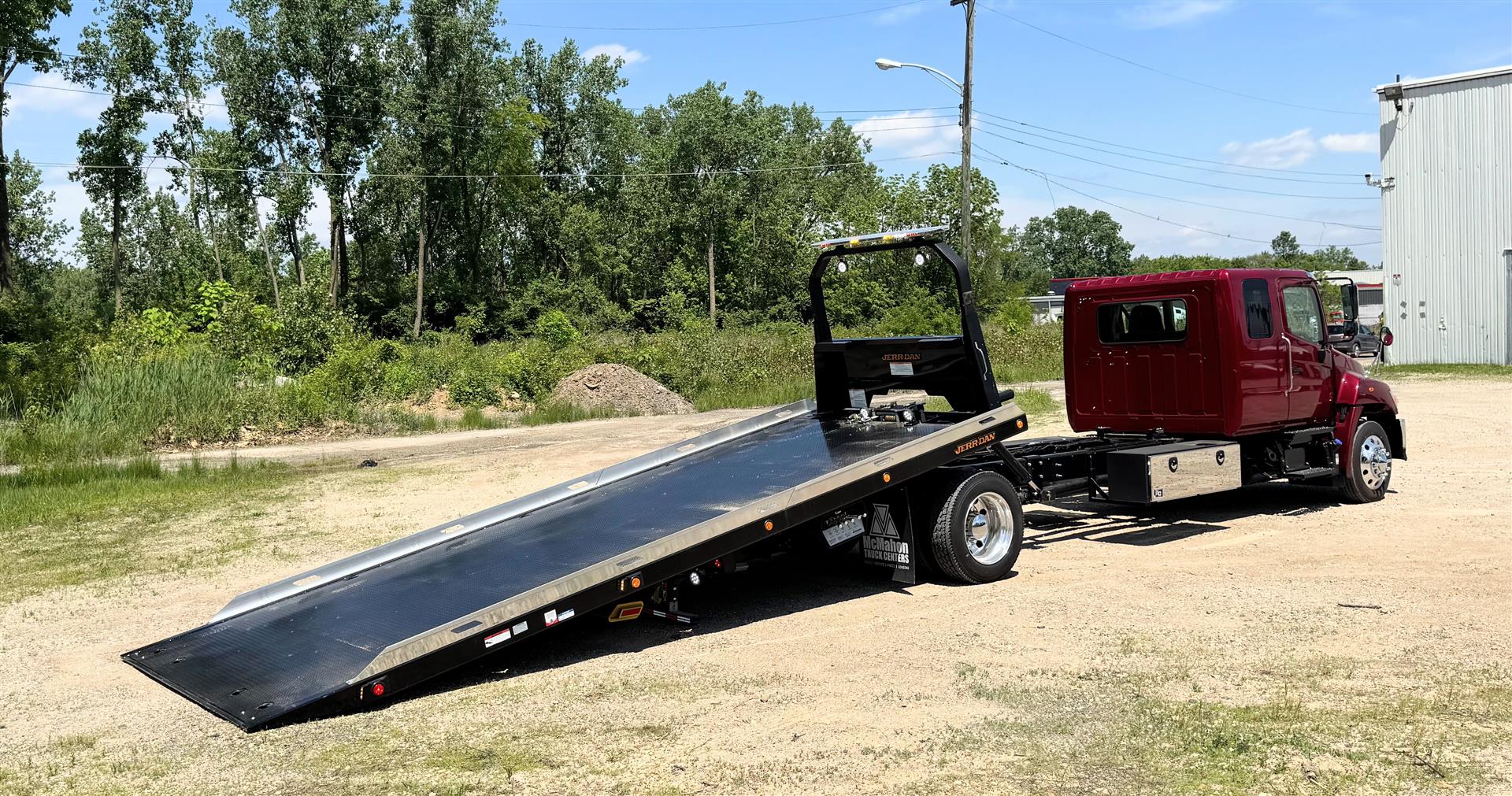

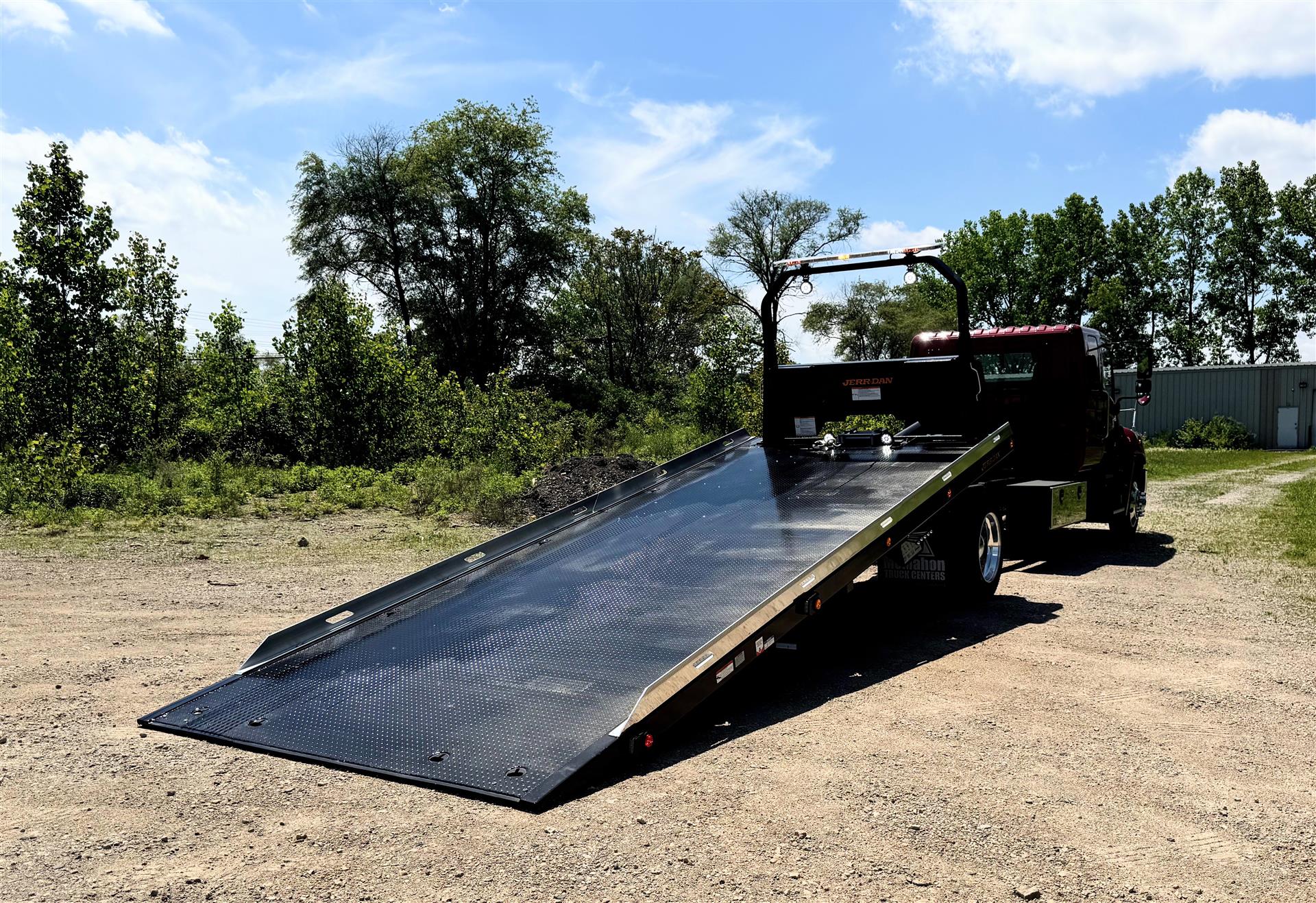

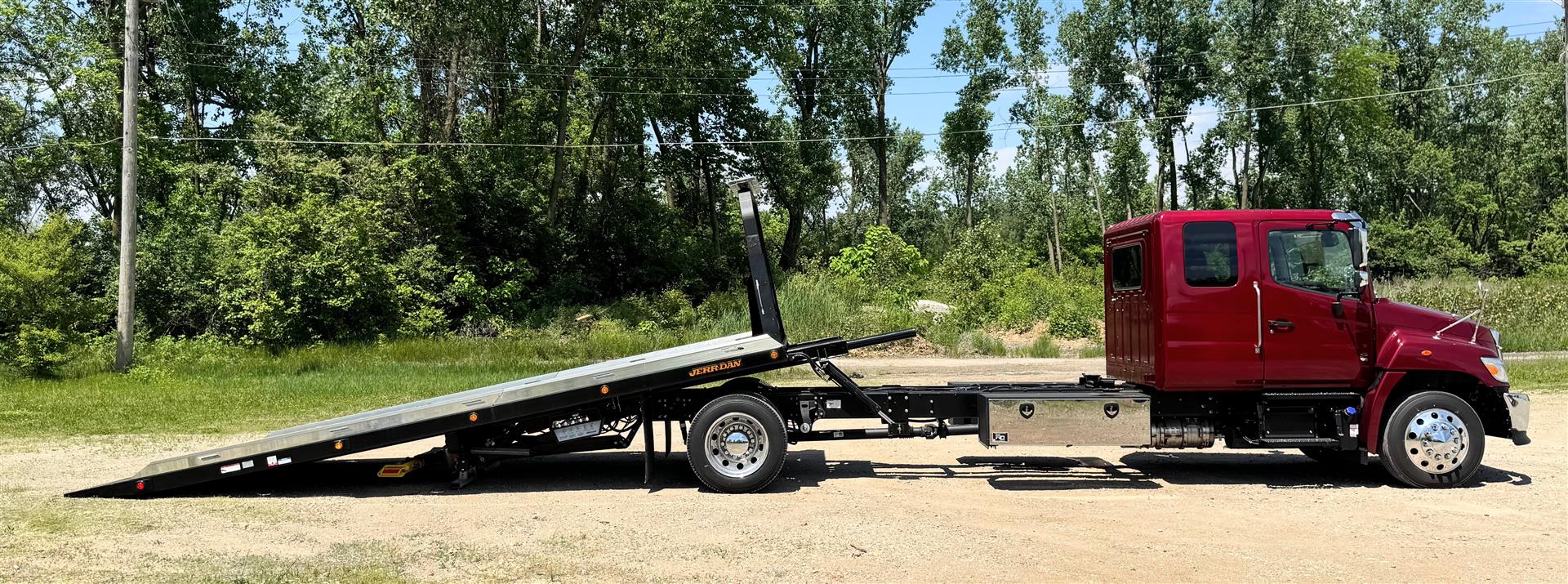

1 22’ Long x 102" Wide Steel Low Profile XLP Deck for Removable Rails
Decking Material:
1 •Diamond Plate Steel, 3/16" Thick, 1-Piece, 36 KSI
Deck Options:
1 Polished Aluminum Removable Blade Rails 5" High 22' Removable Rail Decks
1 Deck Approach Tip Rollers
Winches:

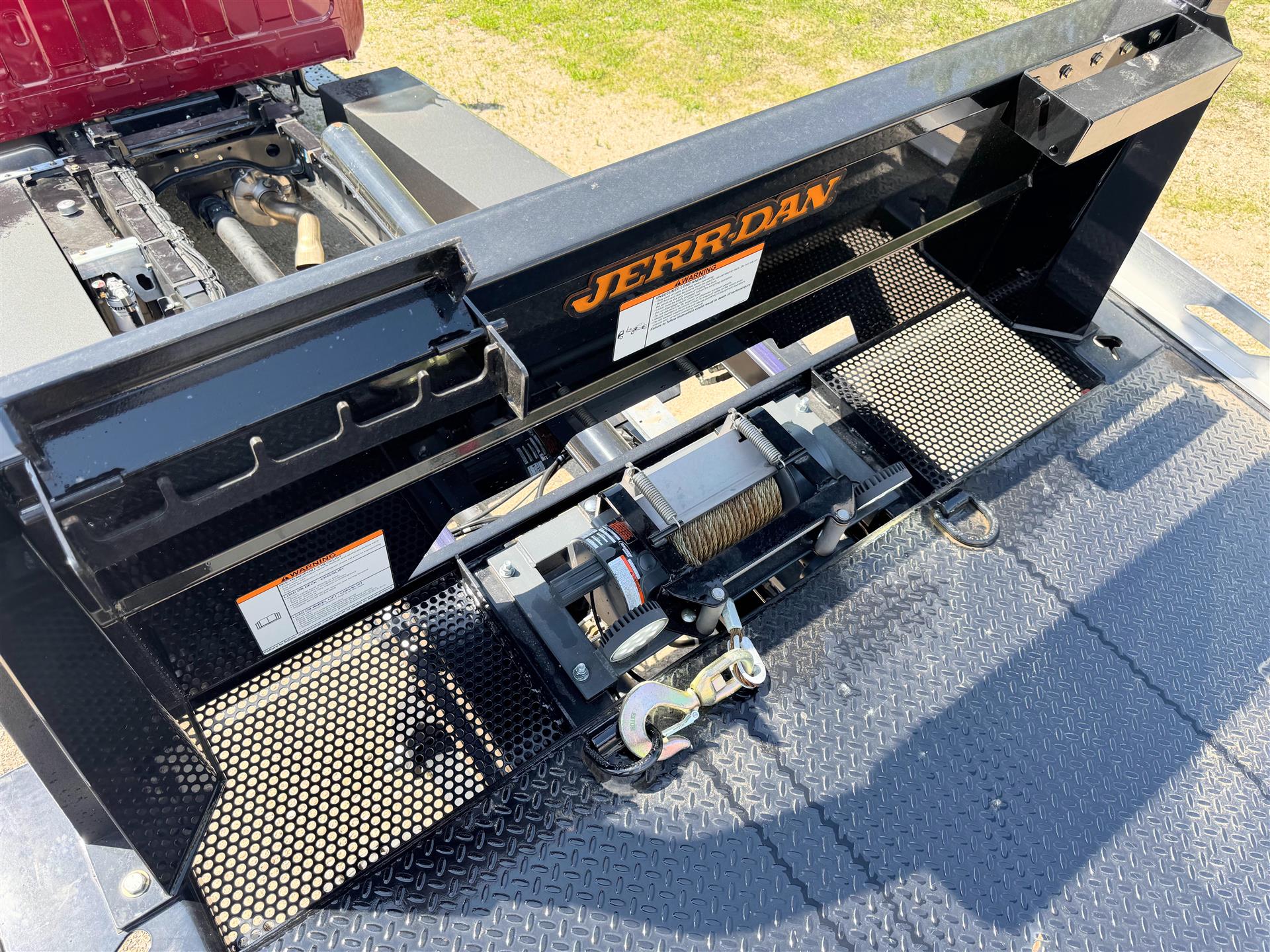

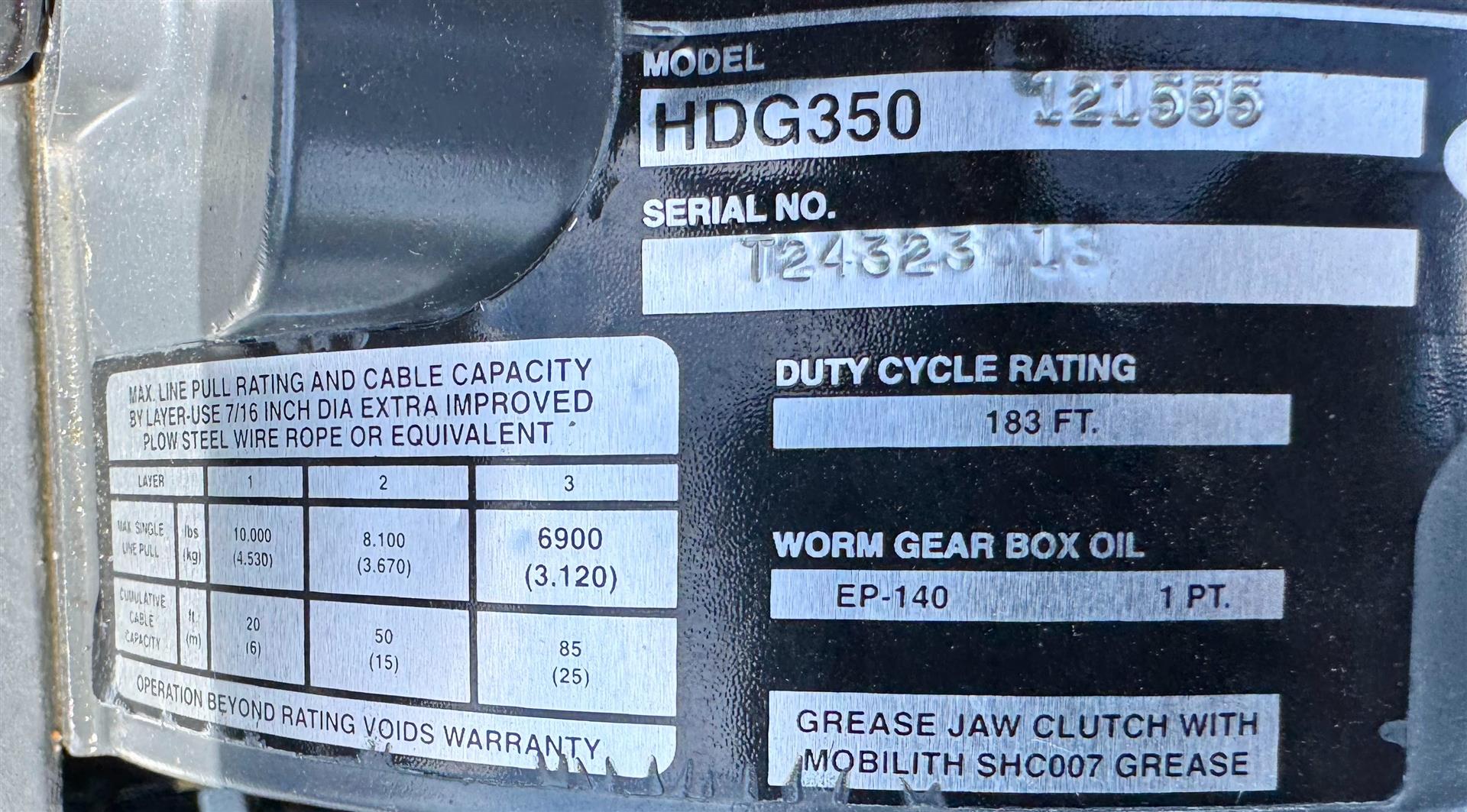

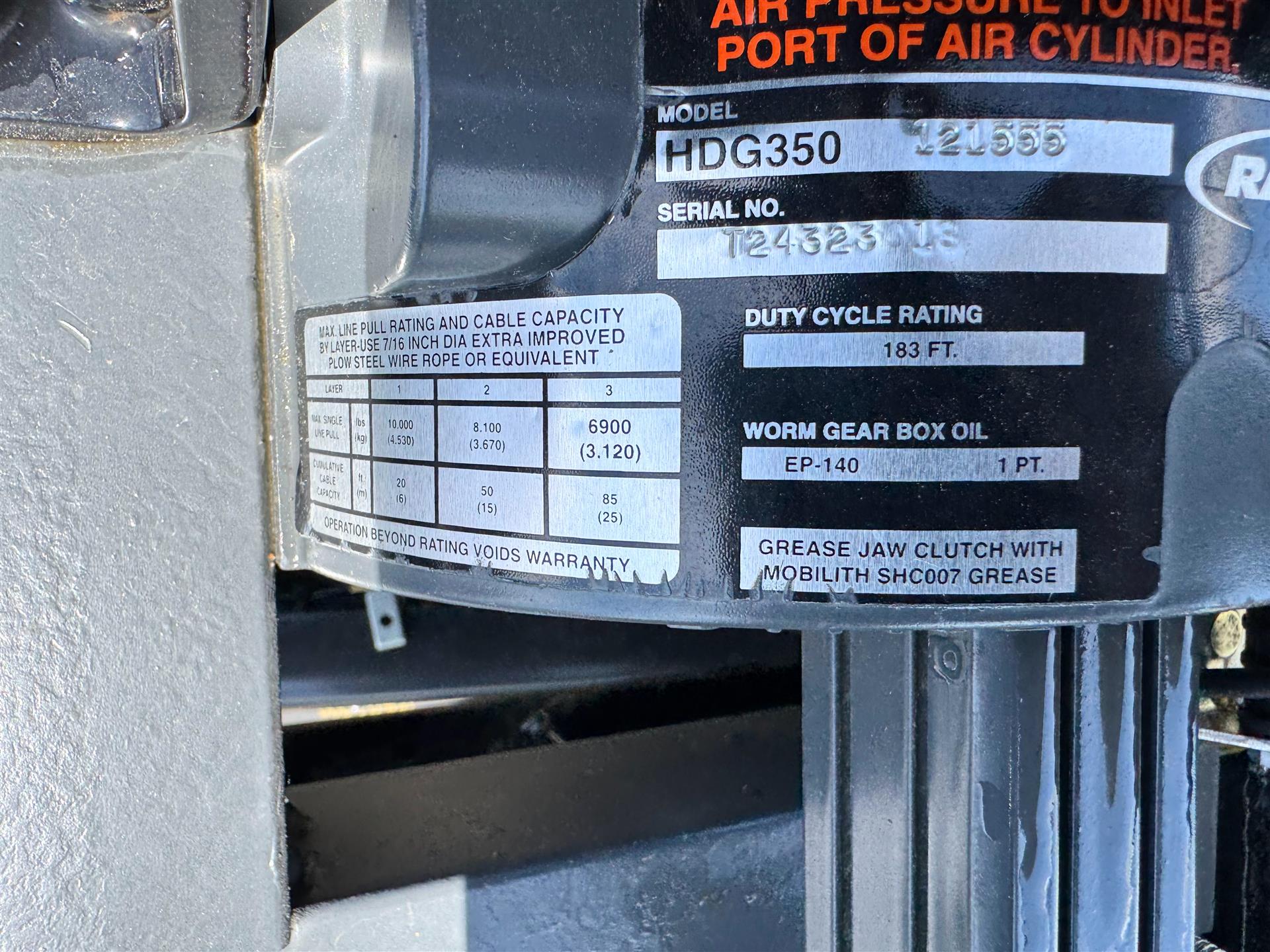

1 10,000 lb Worm Gear Winch
Winch Options:
1 Dual Manual Free Spool for 8K/10K Winch
1 5/8" Weld-on D-Rings Installed Near Winch (Pair)
1 LED Work Lights Abreast of Winch (Pair)
Subframe:
1 Painted Subframe for 6-Ton Low Profile Carrier
Subframe Accessories:
1 Add Greaseable Feature to any Subframe and/or Wheel Lift Combination
1 Hydraulic Oil Filter Cover Protector
Headboard:
1 45 in - 65 in Adjustable Height Headboard
Headboard Options:
1 Locking Chain Racks
1 Grab Handles for Adjustable Headboard (Pair)
1 LED Work Lights on Headboard (Pair)
Carrier Paint Options:
1 All Steel Components Jerr-Dan Gloss Black (Standard)
Wheel Lifts with Painted Finish:

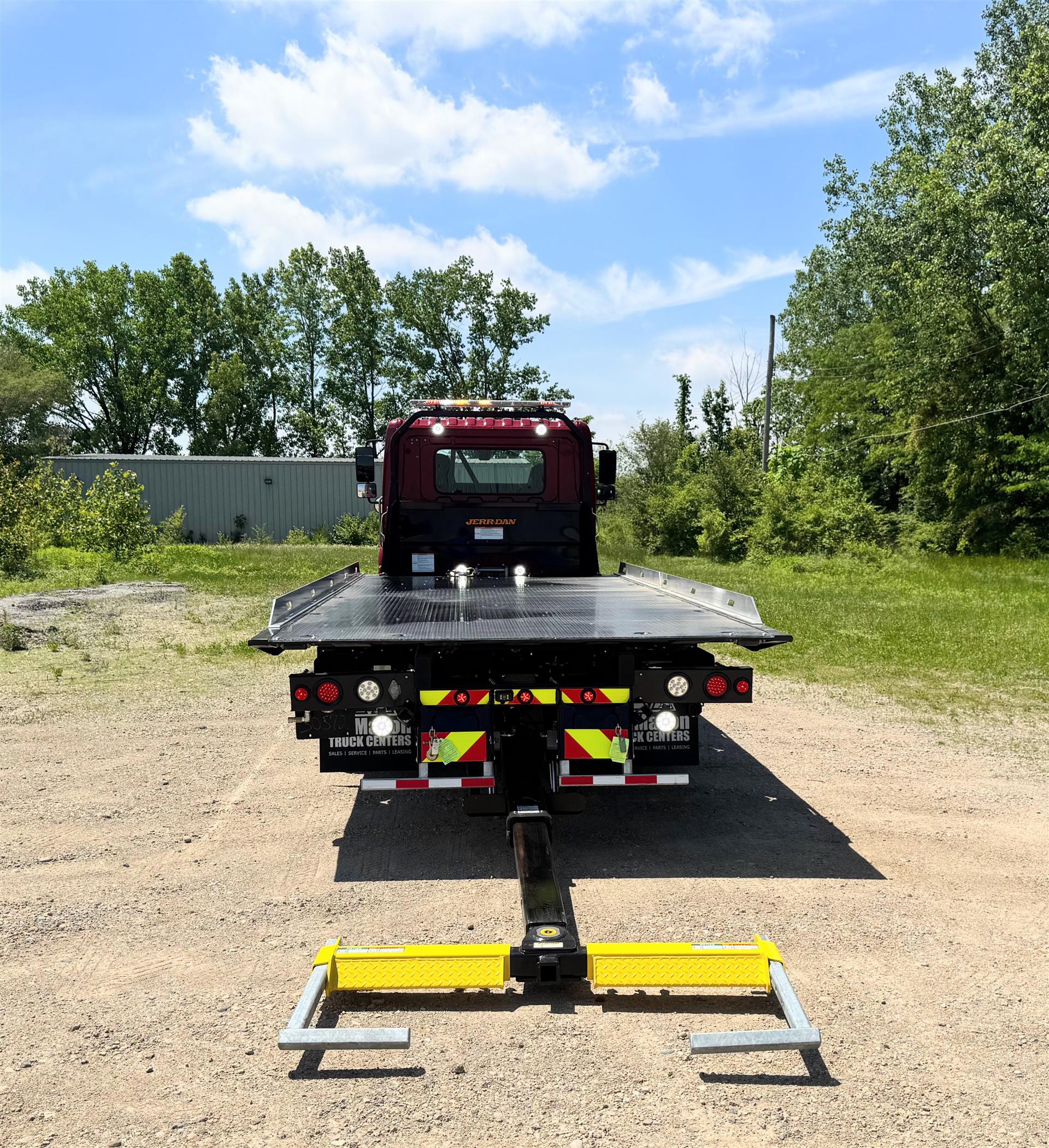

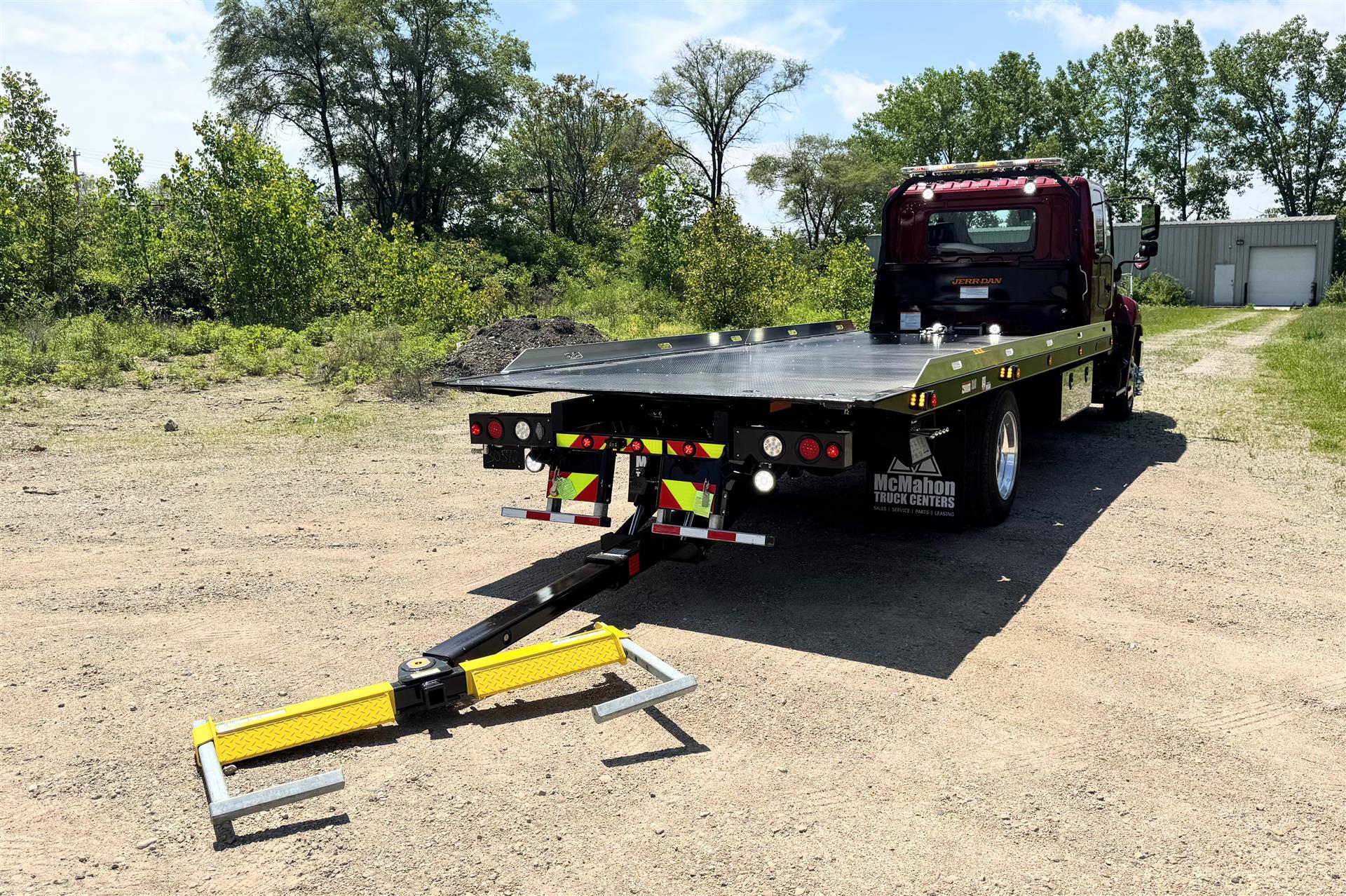

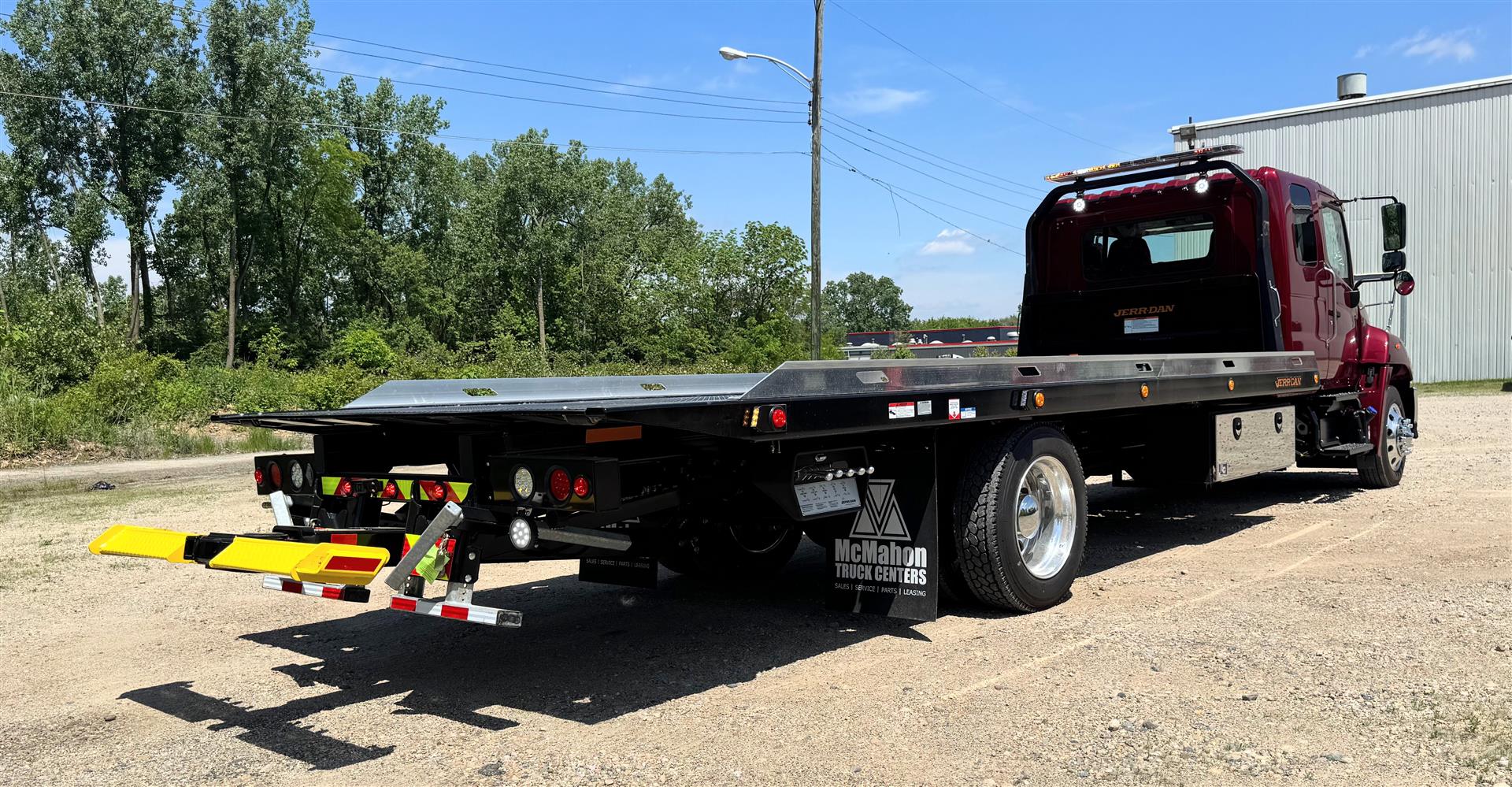

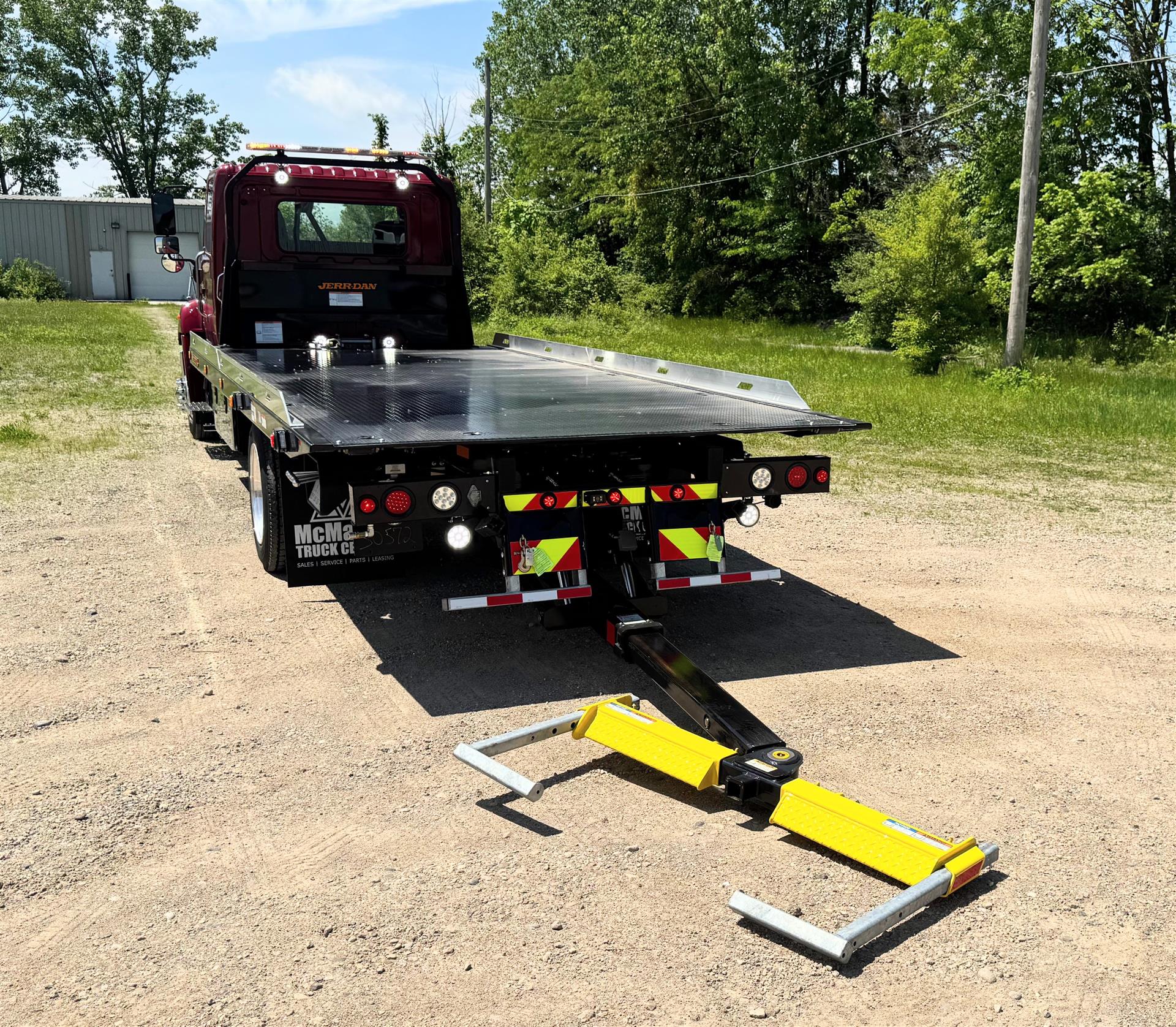

1 Painted 3.5K IRL w/Manual L-Arms & Galvanized Grids w/2" Reese Receiver
Accessories for Wheel Lifts:
1 Cam-Locks ILO T-Handle Tighteners on any Wheel Lift
Lighting Options:
1 Whelen or Federal Signal 10-Head LED Amber Light Bar

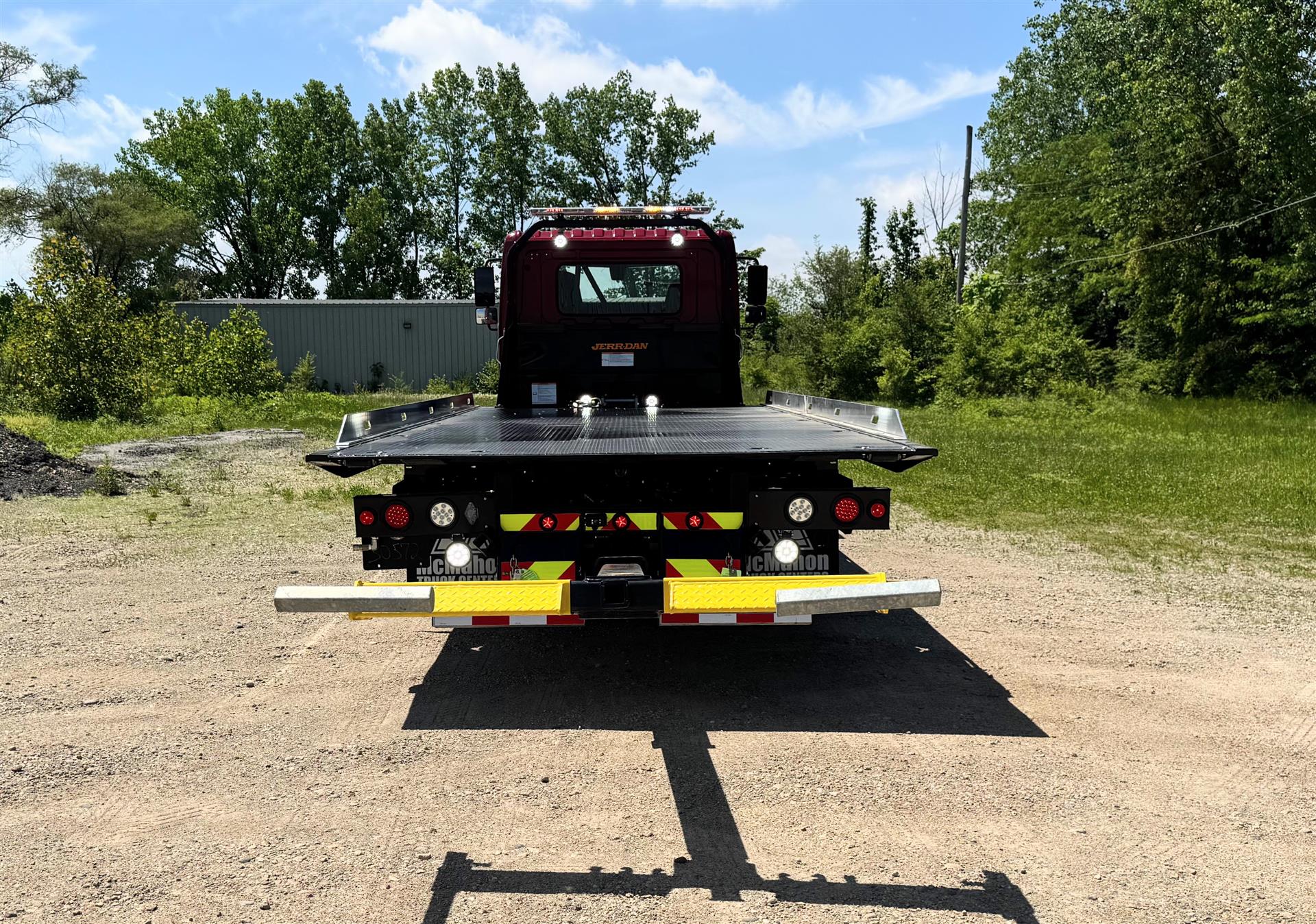

1 R.A.I.L. Lighting System - Rear Illumination Deck Lighting
1 LED Work Lights at Rear of Subframe (Pair)
Switch Panel Options:
Does the Chassis have OEM Switch Panels?

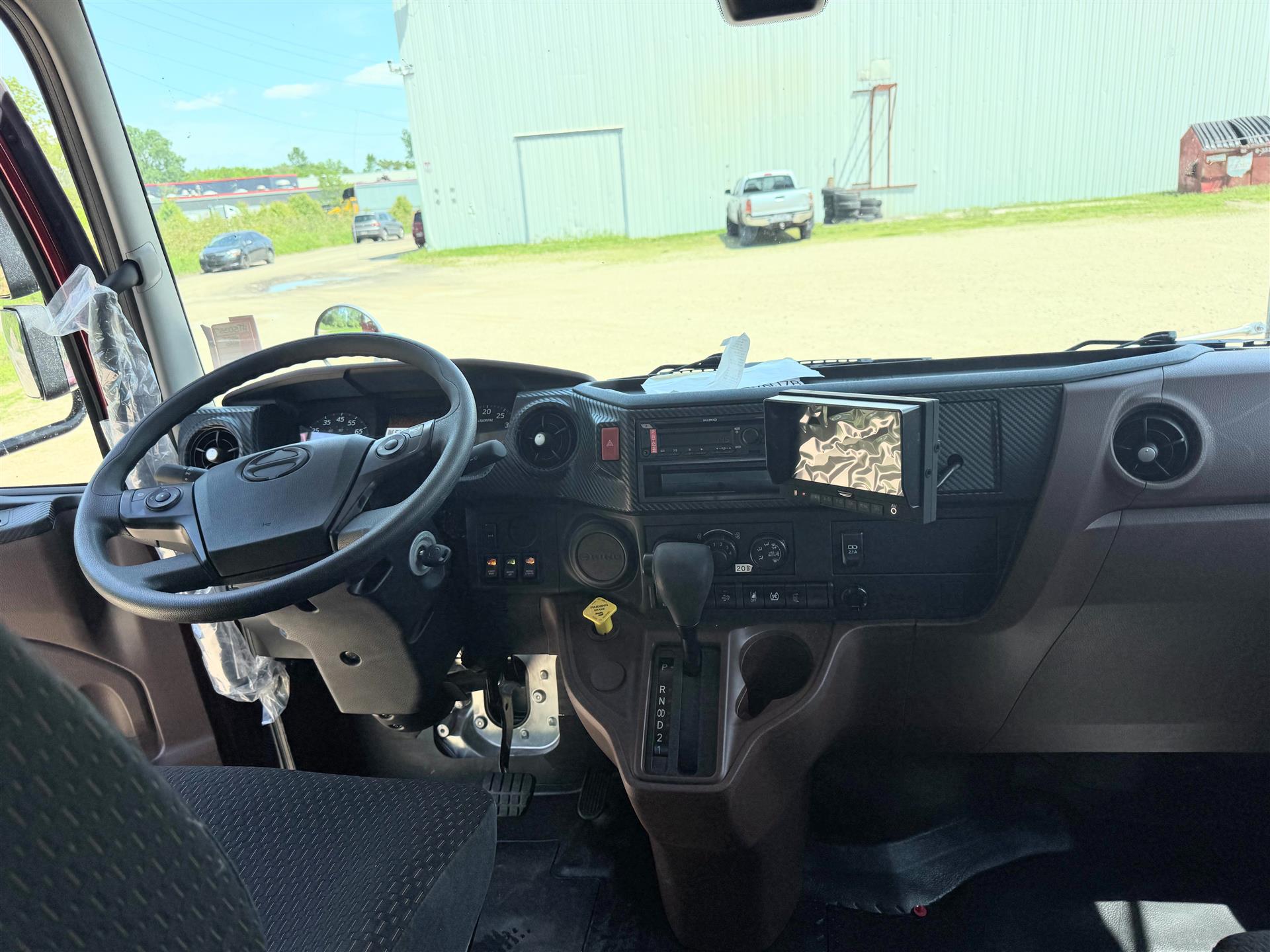

1 5 Function In-Dash Compact Switch Panel
1 ***In-Dash Switch Panels will only be installed when dash space is available
Transmission Mtd PTO:
1 Clutch Shift PTO (Generic)
Hydraulic Pump:
1 11 Gallon-Per-Minute Hydraulic Pump
Remote Controls:
1 Wireless Remote Control (1-Operation)
Remote Control Options:
1 Buzz Box Holder for Remote Control
Hydraulic Tank Mounting Brackets When No Toolbox is Ordered:
1 Standard Mounting Bracket Kit
Miscellaneous Towing Options/Accessories:
1 Air Supply Disconnect at Rear of Subframe (Chassis Must Have Air Supply)
1 Backup Camera - JD Supplied Option
1 High Visibility Tape Installation at Rear of Subframe
1 Standard Jerr-Dan Tie Down Package
1 8 Point Tie Down
1 Wireless Tow Light
Miscellaneous Chassis Related Options/Accessories:
1 Chassis Mounting Kit (Generic)
1 Chrome Hub Covers
