Description
Equipment:
1 35T INT
Features:
1 •2-Section High-Strength Hydraulic Boom
1 •Telescoping Rear Stabilizer with Integrated Flip-down Spade Feet
1 •Eight Rear Recovery Anchor Points at Rear of Subframe
1 •3-Location Multiplex Electrical Controls
1 •2-Location Multiplex Air Controls
1 •Hydraulic Reservoir with Sight Gauge
1 •Recessed Glad Hands and 7-Pin Connectors
1 •Passenger Side Hydraulic Pressure Gauges
1 •LED Lighted Steps and Grab Handles for Nighttime Tailboard Access
1 •Diamond Tread & Anti-skid Surfaces for Service Access to Top of Body
1 •Frame Forks (Set) with Storage in Base Body, to include:
1 ▪Chain Hook Adapters with Clevis Pins and Cotter Keys (Qty 2)
1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (RH)
1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (LH)
1 ▪3.00 Short Fork Casting (Qty 2)
1 ▪3.00 Medium Fork Casting (Qty 2)
1 ▪4.50 Medium Fork Casting (Qty 2)
1 ▪4.50 Long Fork Casting (Qty 2)
1 ▪Hitch Pins (Qty 2)
1▪Heavy-duty Tie-Down Straps (Pair)
112" Base Body:

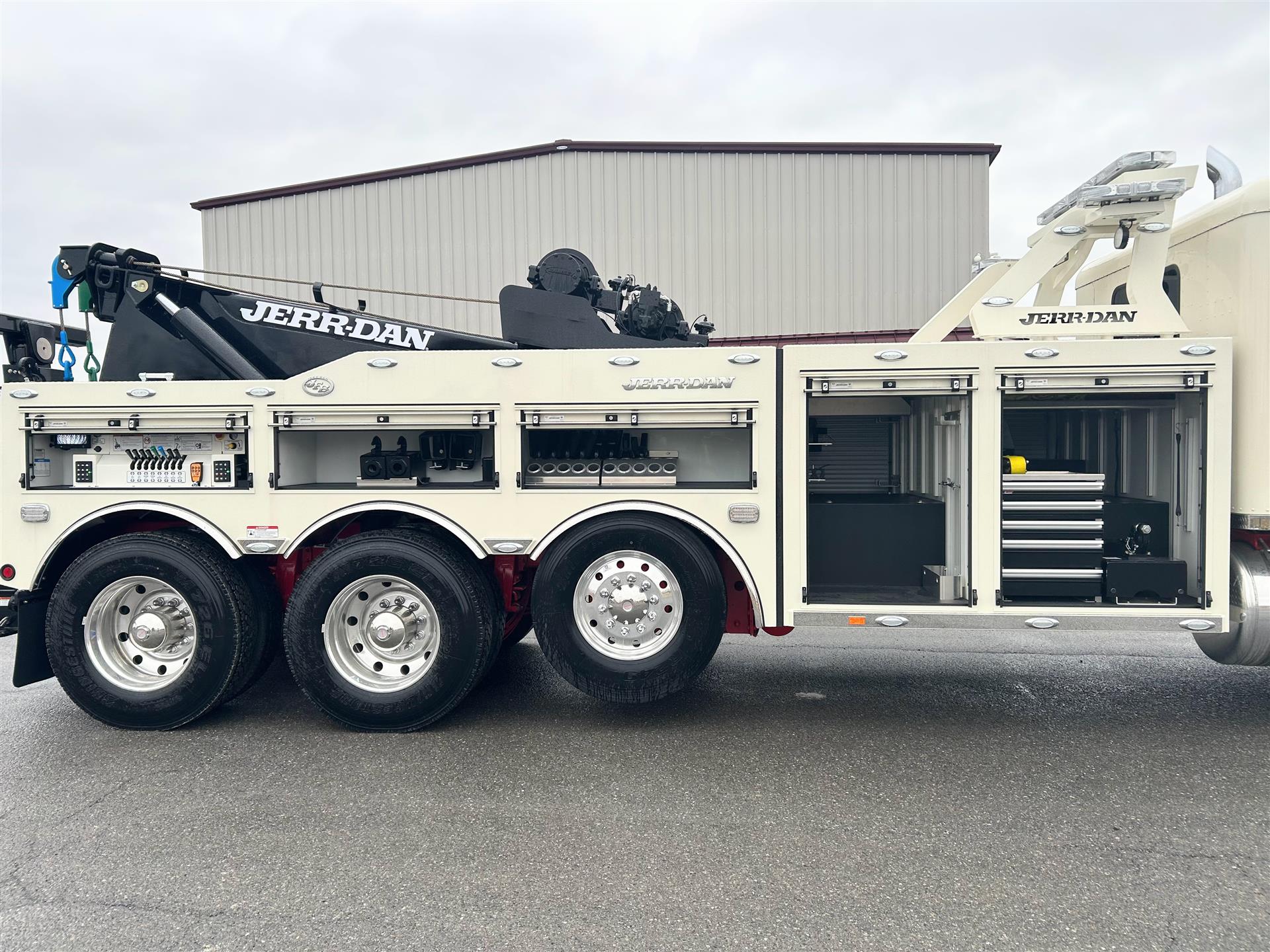

1 Tri-axle Base Body with Painted Roll-up Doors:
1 Position A - Tunnel Toolbox:15
1 88" Tunnel with Painted Roll-up Doors
Recovery Boom:
1 (2) Stage
1 Rated Capacity @ 30° Retracted 70,000 lb
1 Rated Capacity @ 30° Extended 22,000 lb
Reach Past Tail Board
1 Extended @ 0° 132"
1 Extended @ 30° 87"
Operating Range
1 Maximum Boom Angle 39°
1 Maximum Hook Height 225"
Boom Winch:
1 Dual Ramsey 35K Planetary Winches for 5/8" Wire Rope
Boom Winch Wire Rope:
1 Wire Rope 5/8" Diameter x 250' EIPS Galvanized with Swivel Hooks (Qty 2)
Boom Winch Options:
1 Winch Camera Kit (Rear Winch Mounted w/PS Control Station Monitor)
1 Optional Driver Side Monitor Add-on (Must Include Above Winch Camera Kit)
Underlift Options:
1 350X 35,000 lb Retracted 16,000 lb Ext for JD35INT (147" Reach)
1 Centerline of Rear Axle to Tailboard 66"
1 Rated Capacity - Retracted 35,000 lb
1 Rated Capacity - Extended 16,000 lbs.
1 Reach Past Tailboard- Retracted with Forks at Ground Level 69"
1 Reach Past Tailboard- Extended with Forks at Ground Level 147"
1 Postive Tilt 20°
1 Negative Tilt 10°
1 Tow Capacity 80,000 lb
Diamond Plate Dress-up Kits Options:
1 Diamond Plate with Marker Lights (Pair) for Front of any Tunnel Toolbox:
! Rubrail Dress-Up Kit 25/35T
Battery Option:
1 Battery Relocation Hardware (Required to relocate truck batteries to JFB Tunnel)
Back-up Alarm Options:
1 Back Up Alarm
Lighting Options:
1 Whelen Amber LED 60" Light Bar
1 Lower Hook-up Lights LED (Pair)1Upper Hook-up Lights LED (Pair)
1 Upper Work Lights LED (Pair) (Requires Pylon Wing Lights/Brackets)
1 Underlift Light LED
1 Strobe Light Kit (1-Pair Front/1-Pair Rear/1-Pair Left Body Side/1-Pair Right Body Side)
In-Cab Floor Mounted Switch Panel Options:
1 Switch Panel for Lighting & Underlift - Generic Chassis
Light Pylon Options:
1 22" Whelen LED Amber Wing Lights with Mounting Brackets (Pair)
Wireless Controls:
1 12-Function Proportional Wireless Remote
1 6-Function Non-Proportional Wireless Remote
Driver Side Hydraulic Gauges
1 Color Coded Winch Control Handles:
1•Left Hand Main Winch - Green
1•Right Hand Main Winch - Blue
Paint Options:
1 Subframe/Boom/Under Lift - Black
Jerr-Dan Boom Logo Options:
1 White Jerr-Dan Logo over Black Steel
Power Take-off (PTO) Options:
1 PTO AIR SH8S-U6807-A1PX
1 25 GPM Pump
Tow Options:
1 Fork Risers Storage (Pair)Fork Risers for 5" x 5" Crossbar (Pair)
JFB Storage Solution Options:
1 Gold Series Storage with 25K Bus Arm Towing Package
1 '-25,000 Tire Lift/Bus Arms w/Bus Arm and Ratchet Strap Storage Solution
1 '-5th Wheel Storage Solution
1 Tool Drawer
1 Snatch Block Storage (2 Snatch Blocks)
1 Rotary Chain Rack
********************************************************************************
