Description
Rugged, reliable Jerr-Dan 15 ton low profile transporters offers the perfect combination of strength, stability, weight savings, low maintenance and gentle load angle to haul more, improve productivity and lower your overall cost of doing business! We supply Jerr-Dan beds w/lots of tie down points for maximum flexibility to handle whatever you haul.

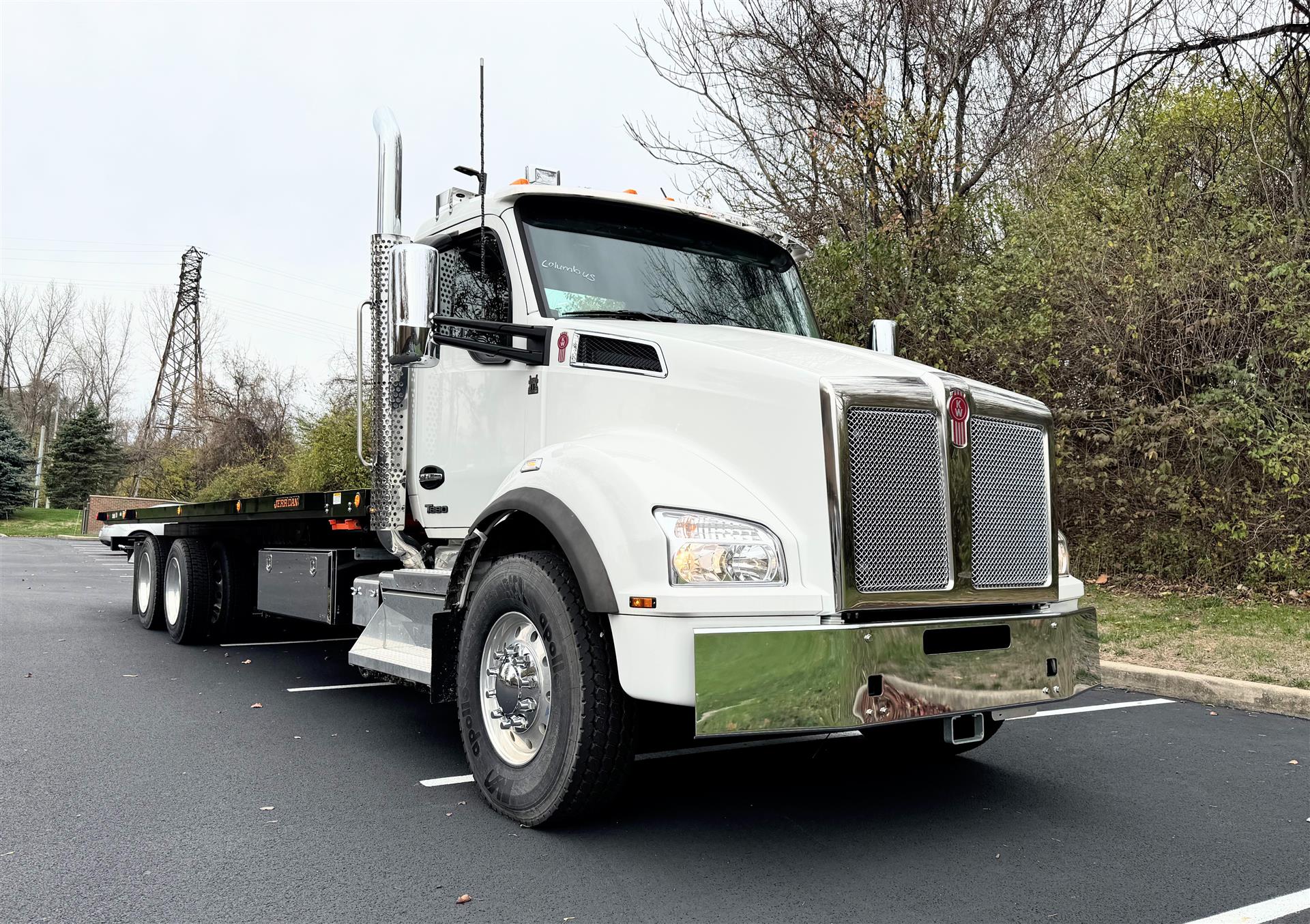

Images are courtesy images to visualize installed carrier. Last image actual carrier waiting for install.
Equipment: Serial: 0220031363
15-Ton Low Profile Transporter
Standard Features:
1 •Tropical Hardwood Decking
1 •1" X 5" Center Beam Plates
1 •Standard LED Marker Lights (5 Pair Evenly spaced along Outside Rubrail)
1 •Standard Keyslots (1 Pair @ Front and 4 Keyslots Evenly Spaced Across Rear)
Transporter Decks with Tropical Hardwood Decking:
1 30' Long x 96" Wide 15-Ton Low Profile Transporter
Deck Options:
1 Morton Star Decking
1 Inside Keyslot Strips Along Center Beam Plates for 30' Deck
1 Outside Keyslot Strips Along Rubrail
1 Outside Stake Pockets w/Rubrails & Pipe Spools for 96” Wide Decks Only
2 Folding 3-Step Ladder
1 Yellow Anti-slip Paint - Rubrails Only
1 Yellow Anti-slip Paint - Approach Tip Only
Winches:
1 20,000 lb Worm Gear Winch with Air Free Spool
Winch Options:
1 Cable Roller Guide for 20,000 lb Worm Gear Winch
1 Cable Tensioner for 20,000 lb Worm Gear Winch
1 5/8” Weld-on D-Rings Installed Near 20,000 lb Winch (Pair)
1 LED Work Lights at Winch (Pair)
Subframe:
1 Painted Sub-frame for Heavy-duty Low Profile Transporter
Headboard:
1 45 in - 65 in Adjustable Height Headboard
Headboard Options:
1 Locking Chain Racks f/Adjustable or Deluxe Only
1 Grab Handles for Adjustable Headboard Only
1 LED Work Lights for All Headboards (Pair)
Transporter Paint Options:
1 All Steel Components Jerr-Dan Gloss Black (Standard)
Stabilizer Options:
1 Hydraulic Rear Dock Stabilizer with Hydraulic Pintle Hitch Mounting Plate
Lighting Options:
1 Whelen 10-Head LED Amber Light Bar
1 R.A.I.L. Lighting System - Rear Illumination Deck Lighting
1 LED Work Lights at Rear of Subframe (Pair)
Switch Panel Options:
Does your Chassis have an OEM Switch Panel?
1 5 Function In-Dash Compact Switch Panel
***In-Dash Switch Panels will only be installed when dash space is available
Transmission Mtd PTOs Only (Requires Hydraulic Pump Below):
1 Electric Over Air Shift PTO (Generic)
1Hydraulic Pump:
1 11 Gallon-Per-Minute Hydraulic Pump
Remote Control:
1 Wireless Remote Control (5-Operation)
Remote Control Options:
1 Buzz Box Holder for Remote Control
Hydraulic Tank mounting brackets when no Toolbox is ordered:
1 Standard Mounting Bracket Kit
Storage Equipment:
2 S/S 60" Tool Boxes
Miscellaneous Towing Options/Accessories:
1 7-Way Electrical Connector at Rear of Subframe includes:
1•7-Way Round to 6-Way Round
1•7-Way Round to 4-Way Flat Adapters
1•Chassis must have OEM Trailer Package for Wiring 7-Way
1 Air Supply Disconnect at Rear of Subframe (Chassis Must Have Air Supply)
1 Backup Camera - Jerr-Dan Supplied Option
1 Glad Hands at the rear of Subframe (Chassis Must Have Air Supply)
1 Hydraulic Oil Filter Cover Protector
1 High Visibility Tape Installation at Rear of Subframe
1 Duplex Pintle Hitch
What Chassis Make will you be utilizing for this build?
1 Generic Chassis Mounting Kit (KW)
*********************************************************
