Description
With innovative tool storage and unmatched performance, the 35 Ton JFB Integrated Wrecker is “best-in-class” in towing and recovery. Fabricated boom and underlift equipment provide the high strength demanded by today’s heavy duty tasks. The 5-inch steel crossbar center pin coupled with the steel bushing are unparalleled in service life. Interchangeable tool compartments and optimized rigging management provide for an extremely efficient and entirely customizable interior. Why? So you can organize it your way. Combined with Kenworth's amazing HD T880 w40" sleeper combination you have a super comfortable, powerful, nimble HD wrecker to handle all your in city and long haul tow business safely, efficiently and economically!

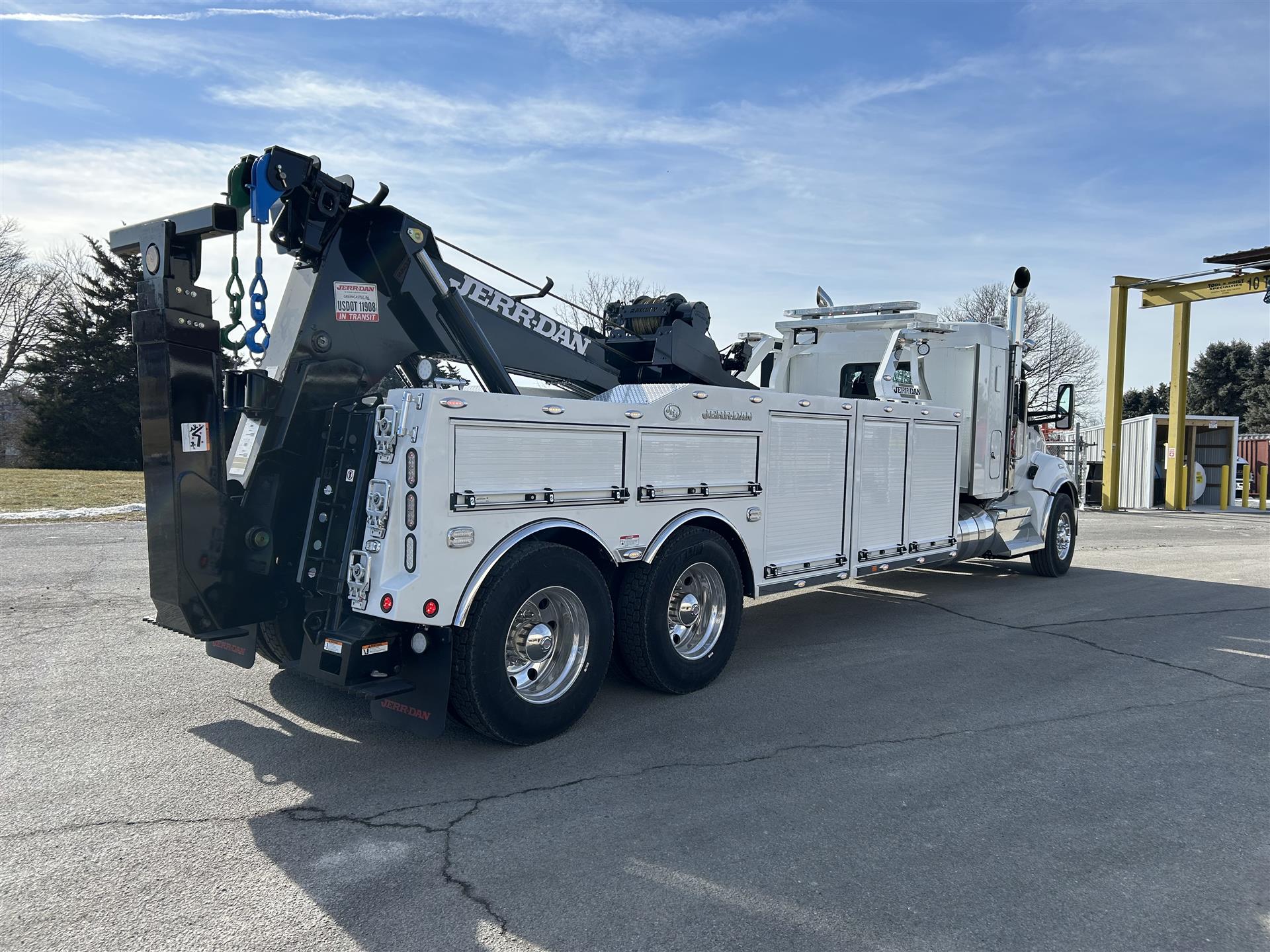

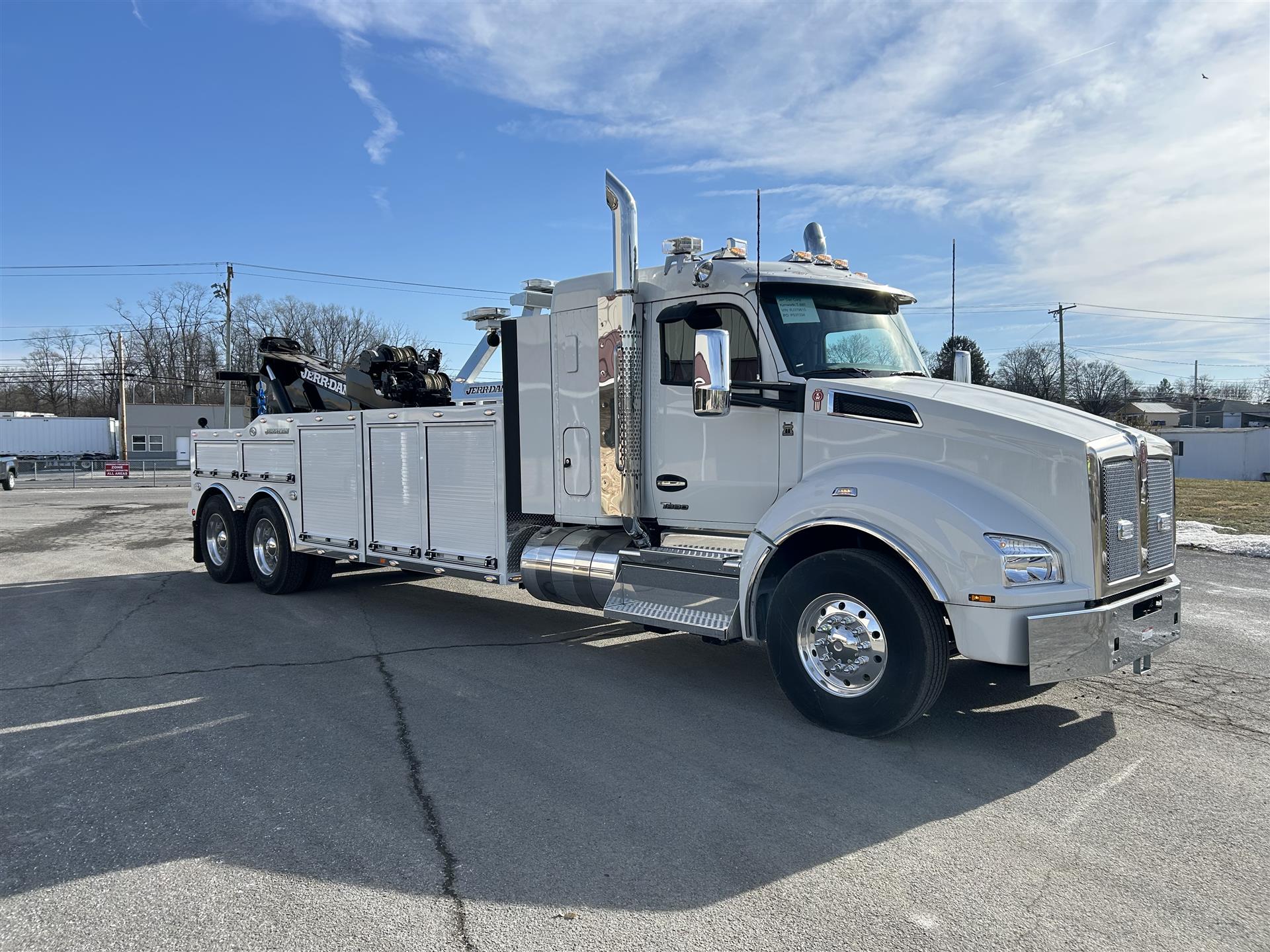

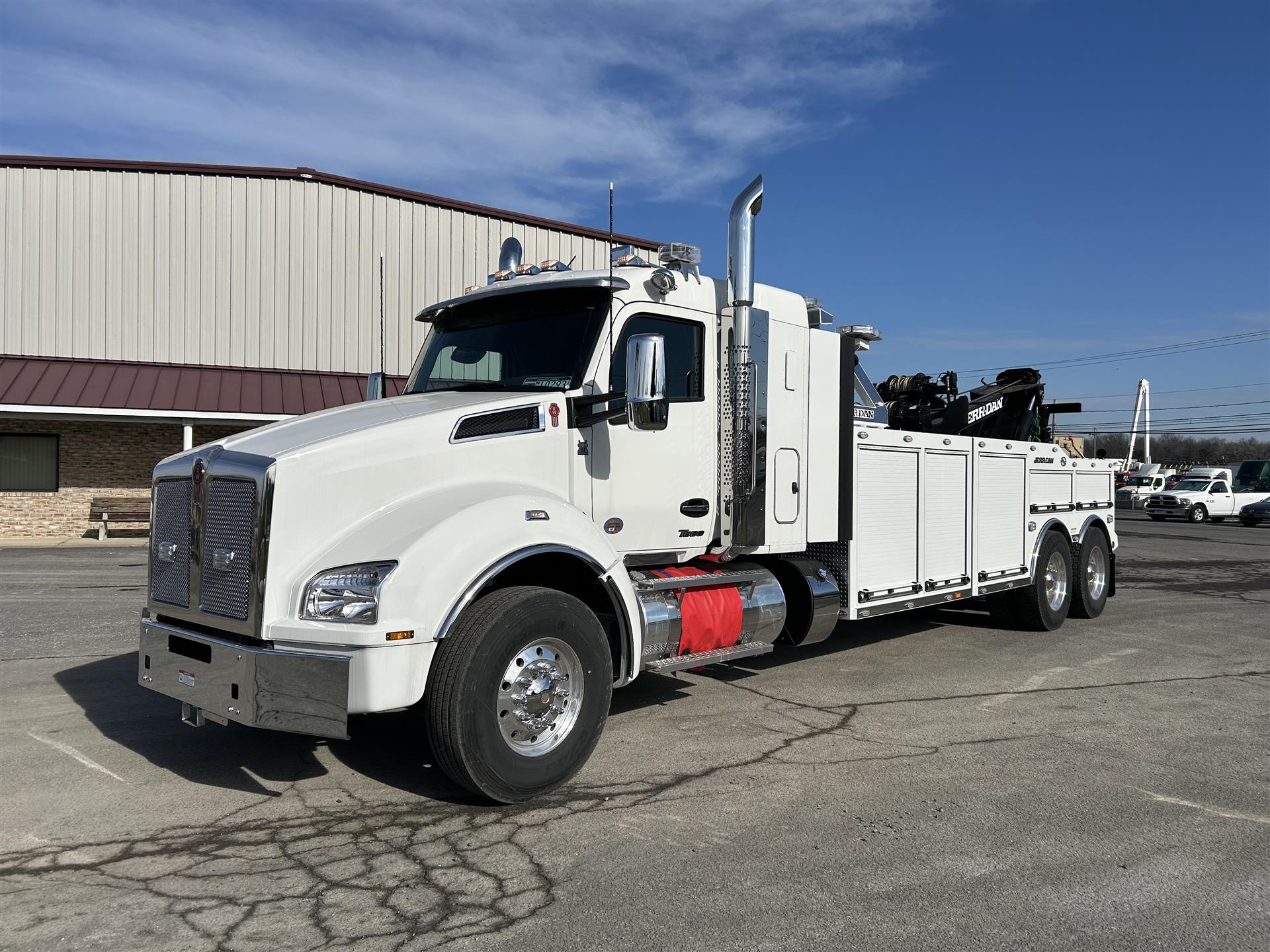

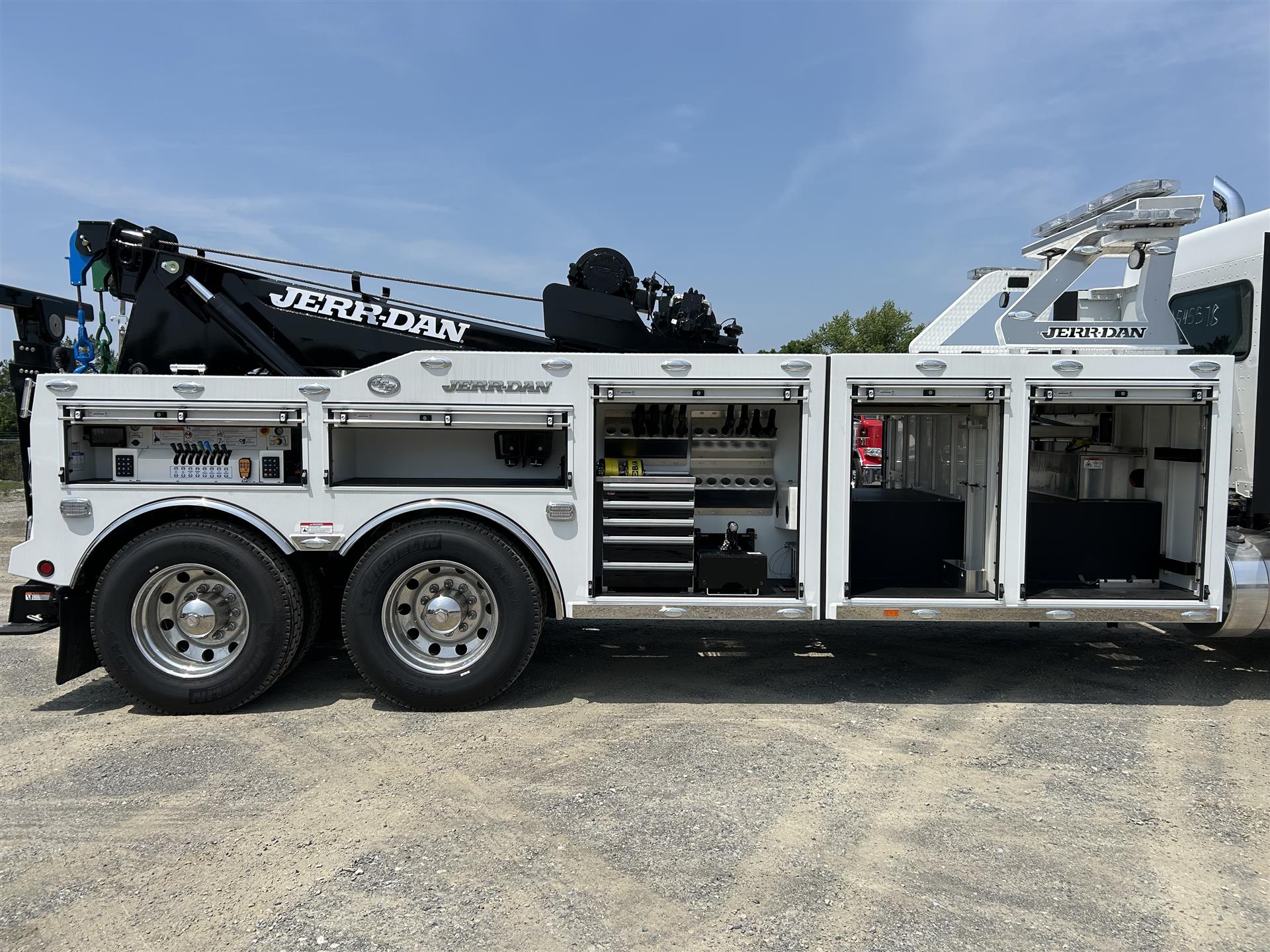

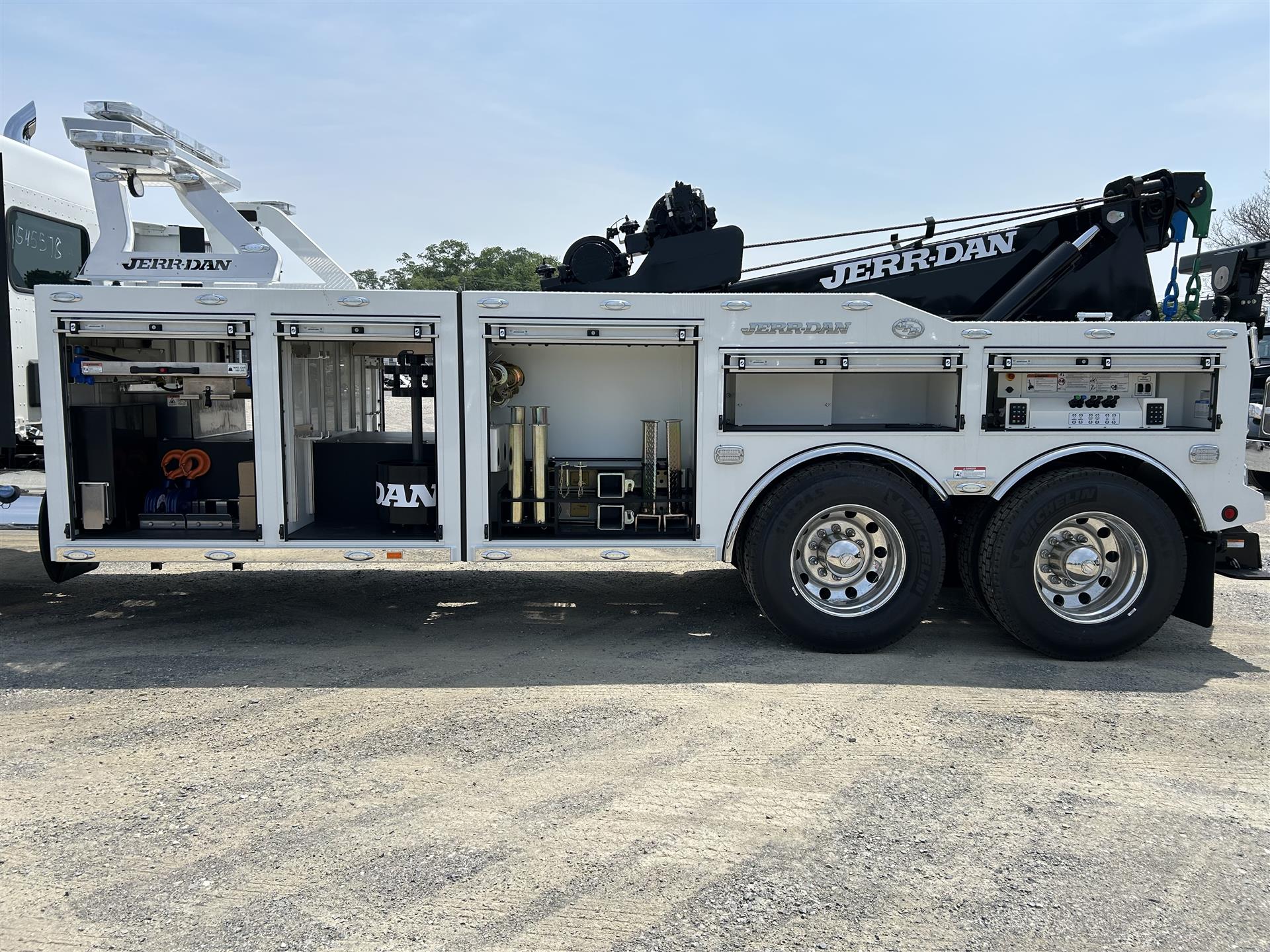

Pictures for visualization purposes not actual truck. March 2026 Projected Completion.
Equipment: Serial:
1 35T INT
Features:
1 •2-Section High-Strength Hydraulic Boom
1 •Telescoping Rear Stabilizer with Integrated Flip-down Spade Feet
1 •Eight Rear Recovery Anchor Points at Rear of Subframe
1 •3-Location Multiplex Electrical Controls
1 •2-Location Multiplex Air Controls
1 •Hydraulic Reservoir with Sight Gauge
1 •Recessed Glad Hands and 7-Pin Connectors
1 •Passenger Side Hydraulic Pressure Gauges
1 •LED Lighted Steps and Grab Handles for Nighttime Tailboard Access
1 •Diamond Tread & Anti-skid Surfaces for Service Access to Top of Body
1 •Frame Forks (Set) with Storage in Base Body, to include:
1 ▪Chain Hook Adapters with Clevis Pins and Cotter Keys (Qty 2)
1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (RH)
1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (LH)
1 ▪3.00 Short Fork Casting (Qty 2)
1 ▪3.00 Medium Fork Casting (Qty 2)
1 Frame Forks Hendrickson Steertek
1 ▪Hitch Pins (Qty 2)
1▪Heavy-duty Tie-Down Straps (Pair)
112" Base Body:
1 Tandem-axle Base Body with Painted Roll-up Doors:
1 Position A - Tunnel Toolbox:
1 88" Tunnel with Painted Roll-up Doors
1 1.4K Counter Weight
Recovery Boom:
1 (2) Stage
1 Rated Capacity @ 30° Retracted 70,000 lb
1 Rated Capacity @ 30° Extended 22,000 lb
Reach Past Tail Board
1 Extended @ 0° 132"
1 Extended @ 30° 87"
Operating Range
1 Maximum Boom Angle 39°
1 Maximum Hook Height 225"
Boom Winch:
1 Dual Ramsey 35K Planetary Winches for 3/4" Wire Rope
Boom Winch Wire Rope:
1 Wire Rope 3/4" Diameter x 200' EIPS Galvanized with Swivel Hooks (Qty 2)
Boom Winch Options:
1 Winch Camera Kit (Rear Winch Mounted w/PS Control Station Monitor)
Underlift Options:
1 350X 35,000 lb Retracted 16,000 lb Ext for JD35INT (147" Reach)
1 Centerline of Rear Axle to Tailboard 66"
1 Rated Capacity - Retracted 35,000 lb
1 Rated Capacity - Extended 16,000 lbs.
1 Reach Past Tailboard- Retracted with Forks at Ground Level 69"
1 Reach Past Tailboard- Extended with Forks at Ground Level 147"
1 Postive Tilt 20°
1 Negative Tilt 10°
1 Tow Capacity 80,000 lb
Diamond Plate Dress-up Kits Options:
1 Diamond Plate with Marker Lights (Pair) for Front of any Tunnel Toolbox:
1 Rubrail Dress-Up Kit 25/35T
1 Pylon Dress Up Kit Polished
Battery Option:
Back-up Alarm Options:
1 Back Up Alarm
Lighting Options:
1 Whelen Amber LED 60" Light Bar
1 Whelen Amber LED 22" Wing Light Bar
1 Lower Hook-up Lights LED (Pair)1Upper Hook-up Lights LED (Pair)
1 Upper Work Lights LED (Pair) (Requires Pylon Wing Lights/Brackets)
1 Underlift Light LED
1 Strobe Light Kit (1-Pair Front/1-Pair Rear/1-Pair Left Body Side/1-Pair Right Body Side)
In-Cab Floor Mounted Switch Panel Options:
1 Switch Panel for Lighting & Underlift - Generic Chassis
Light Pylon Options:
1 22" Whelen LED Amber Wing Lights with Mounting Brackets (Pair)
Wireless Controls:
1 12-Function Proportional Wireless Remote
1 6-Function Non-Proportional Wireless Remote (U/L)
Driver Side Hydraulic Gauges
1 Color Coded Winch Control Handles:
1•Left Hand Main Winch - Green
1•Right Hand Main Winch - Blue
Paint Options:
1 Subframe/Boom/Under Lift - Black
Jerr-Dan Boom Logo Options:
1 White JD Logo
Power Take-off (PTO) Options:
1 PTO E/H 892HAFJW-B5AF A4700
1 25 GPM Pump
Tow Options:
1 7" Tall Fork Adapter
1 Spring Lift Brackets B149 with Hitch Pins (Qty 2)
JFB Storage Solution Options:
1 Gold Series Storage with 25K Bus Arm Towing Package
1 '-25,000 Tire Lift/Bus Arms w/Bus Arm and Ratchet Strap Storage Solution
1 Long Straps 2"
1 Short Straps 2"
1 Long Straps 3"
1 (4) 2' and (4) 3" Ratchets
1 '-5th Wheel Storage Solution
1 5th Wheel Plate
1 Pintle 2" Ball
1 Tool Drawer (Base Body)
C-Tech Tool Box 21" x 20" x 26.5"
(3) 4" Drawers
(2) 6" Drawers
6" Telescoping Top Shelf
1 7" Tall Fork Adapter Storage
1 Snatch Block Storage (4 Blocks)
1 Bottle Jack Storage
1 Chain Binder Storage Tunnel T-Track
1 Chain Rack Sidewall
1 Chain Rack Rotary Carousel
1 Ladder Storage (Wall Mount)
1 Shackle Rack (1 Row)
1 Spill Kit Storage
1 Stay Dry Silo
1 Storage Shovel/Broom/Grizzly Bar
1 Tow Light Storage
1 Stationary Upper Shelf
Miscellaneous Options/Accessories:
1 Snatch Block Kit (35 Ton)
McKissick Model 418 8" 8t Snatch Blocks
1 Shackle Kit Level 1
(4) - 8.5T Galv Shackle 1" Pin
(4) - 12T Galv Shackle 1.25" Pin
(2) - 7/8" Master Link G100 17,200# WLL
1 Heavy Duty Chain Kit Level 1
(2) - G70 3/8" x 10'
(4) - G100 3/8" x 10' 8,800# WLL
(2) - G100 1/2" x 10' 15,000# WLL
(2) - 3/8" x 1/2" Ratchet Chain Binder 9.200# WLL
1 Endless Loop Sling Kit Package - Level 1
(2) 4' Yellow Round Sling 8,400#
(2) 6' Yellow Round Sling 8,400#
(2) 8' Red Round Sling 13,200#
(2) 12' Red Round Sling 13,200#
1 PACCAR - Back-up Camera Kit (In-Cab Monitor w/Camera Mtd on Rear Spade Housing)
********************************************************************************
