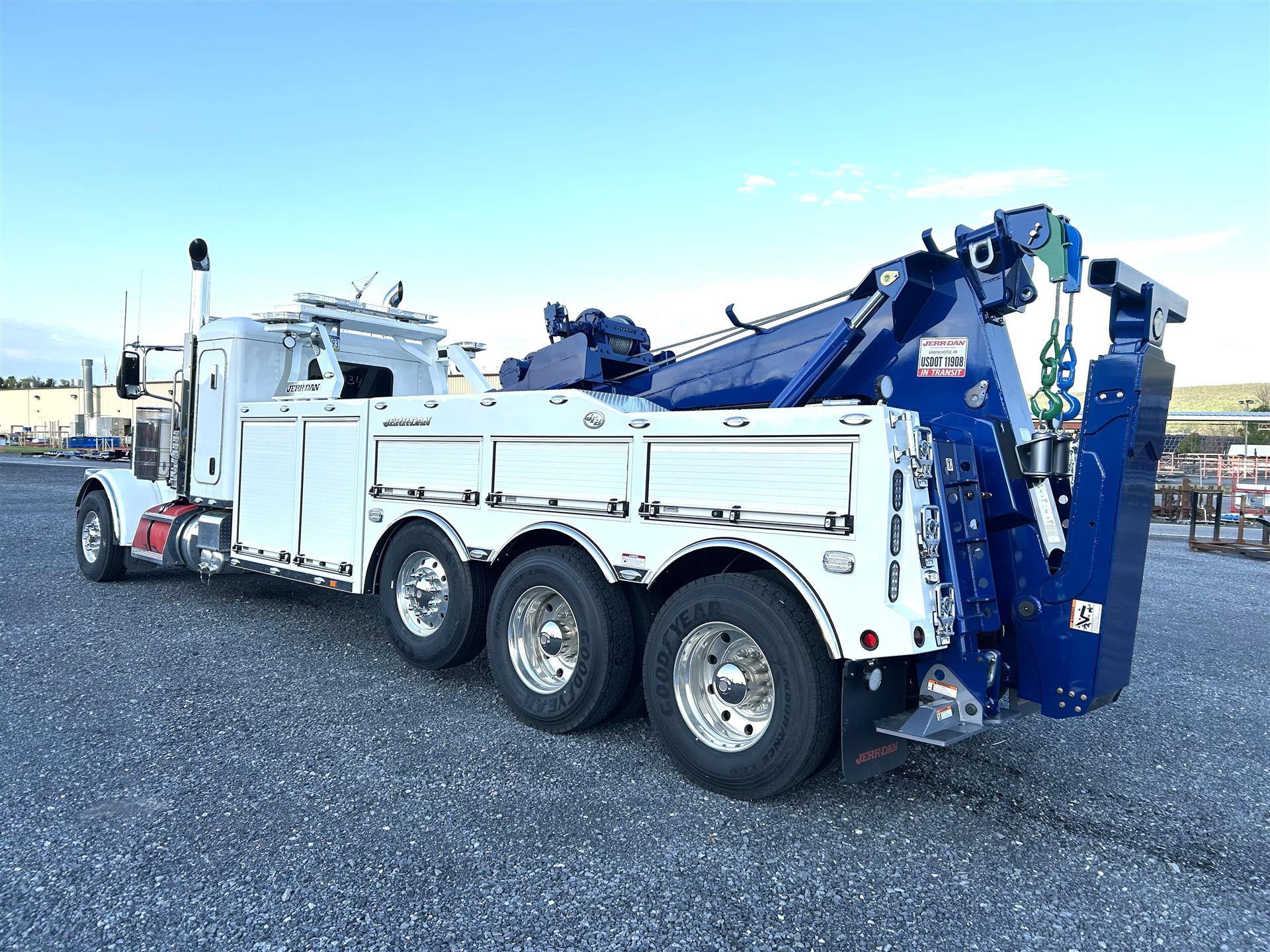

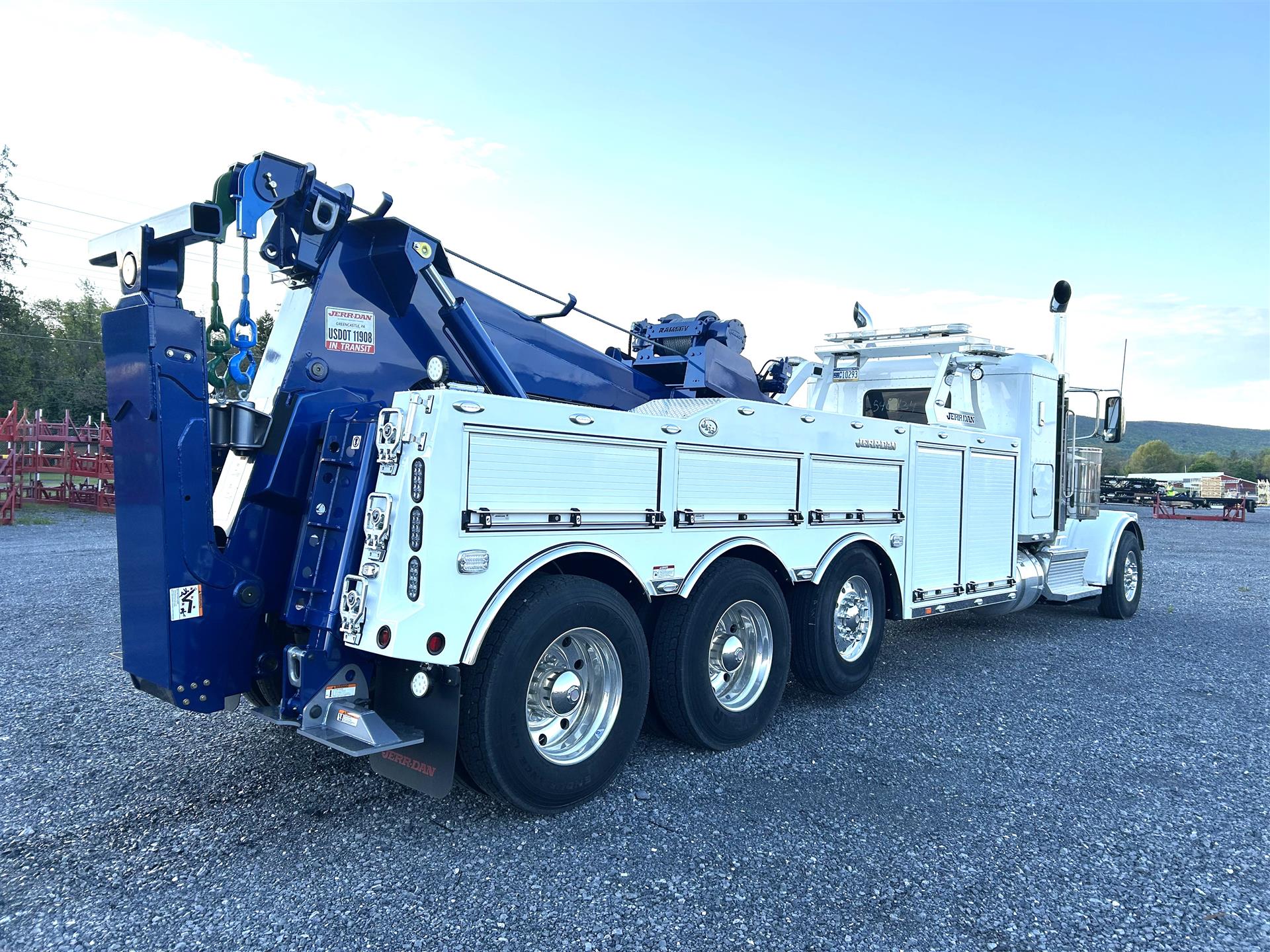

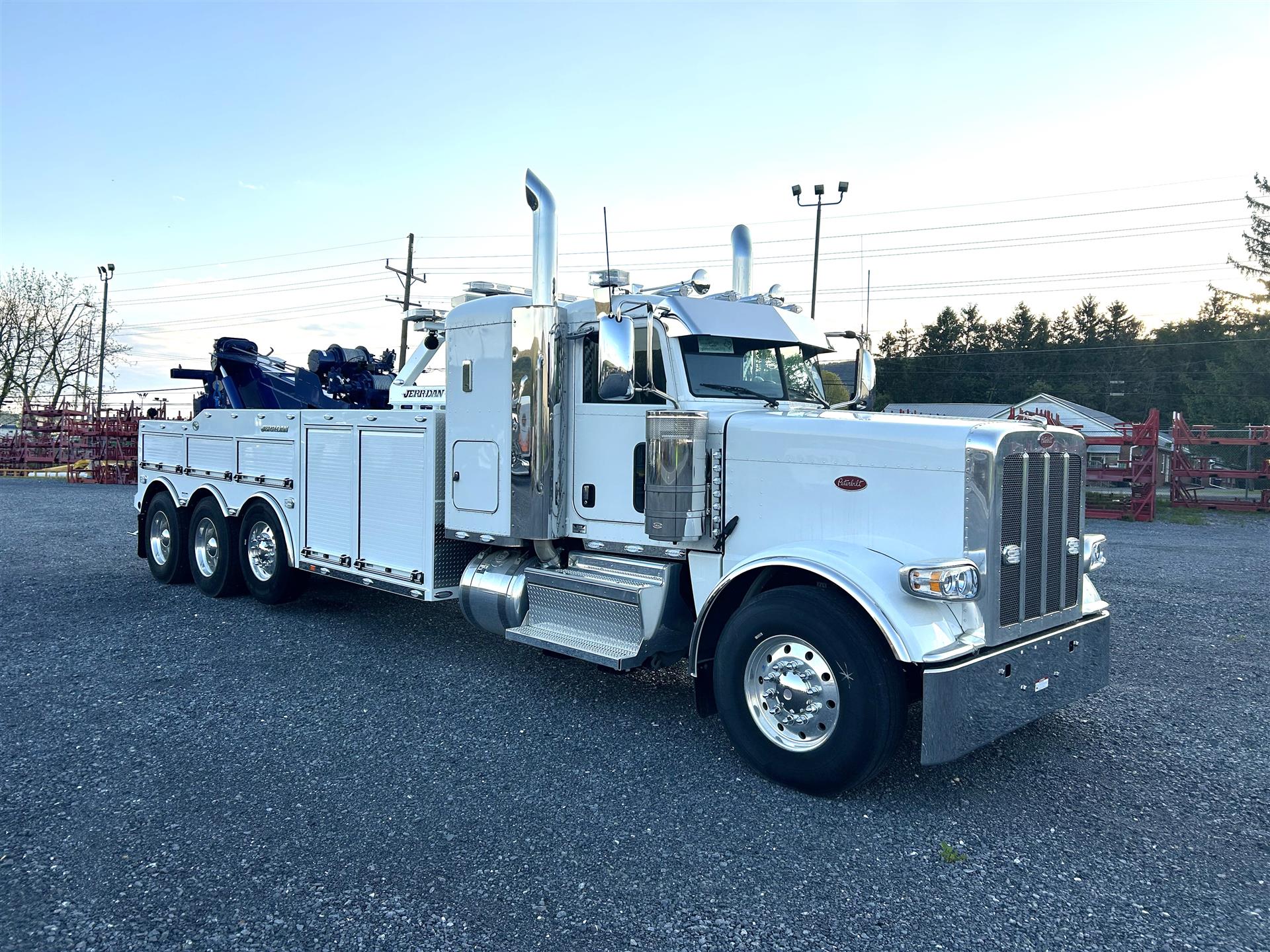

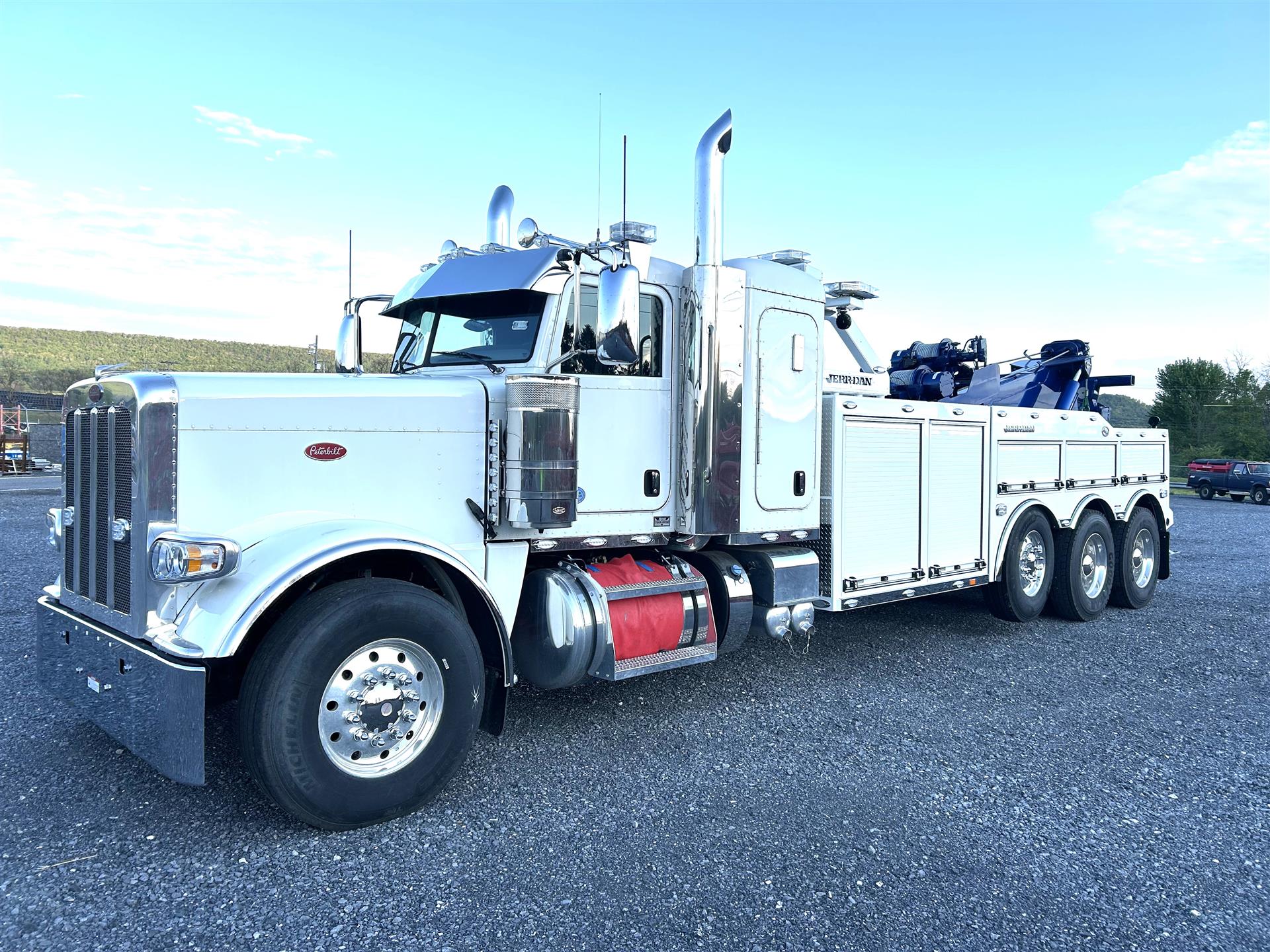

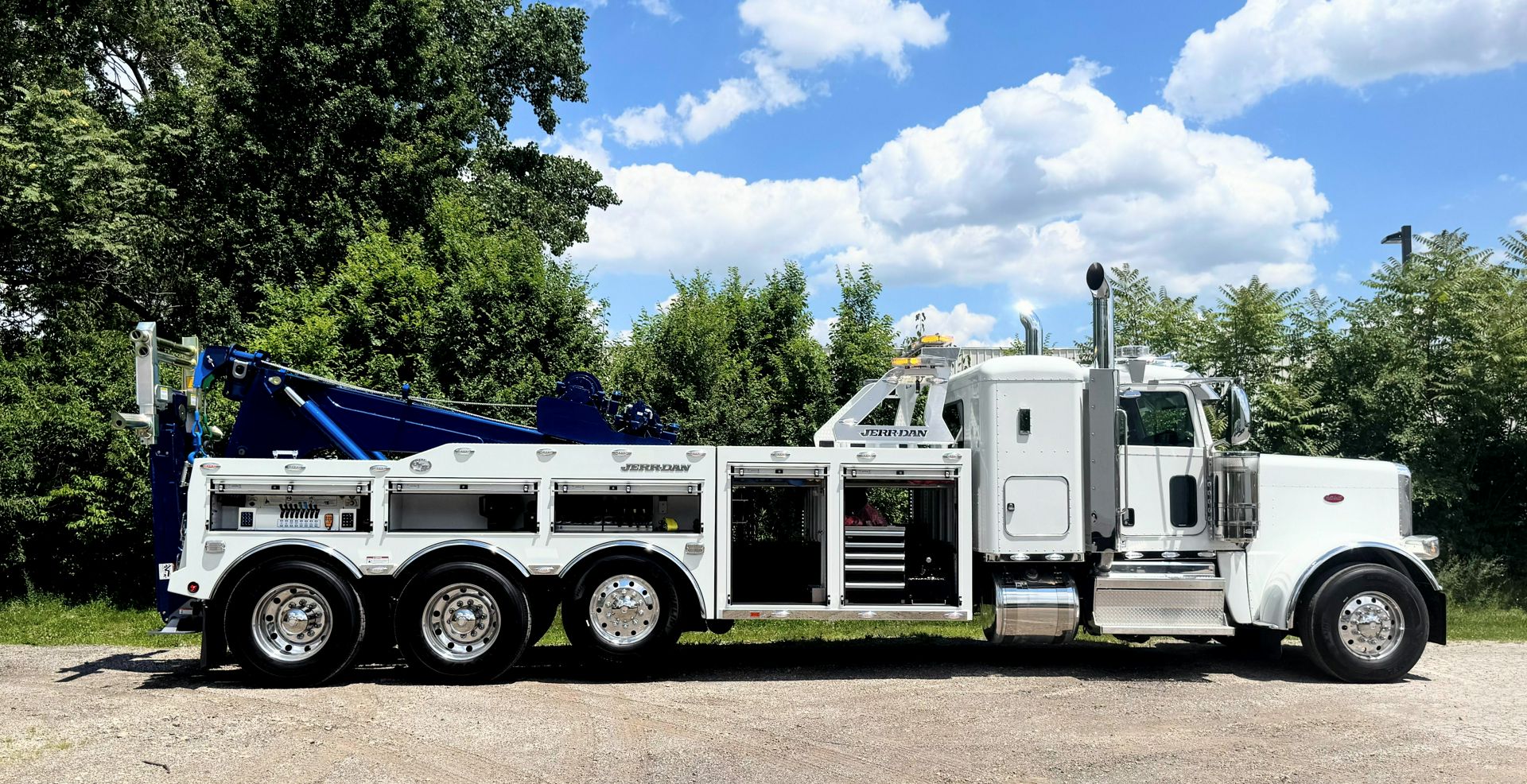

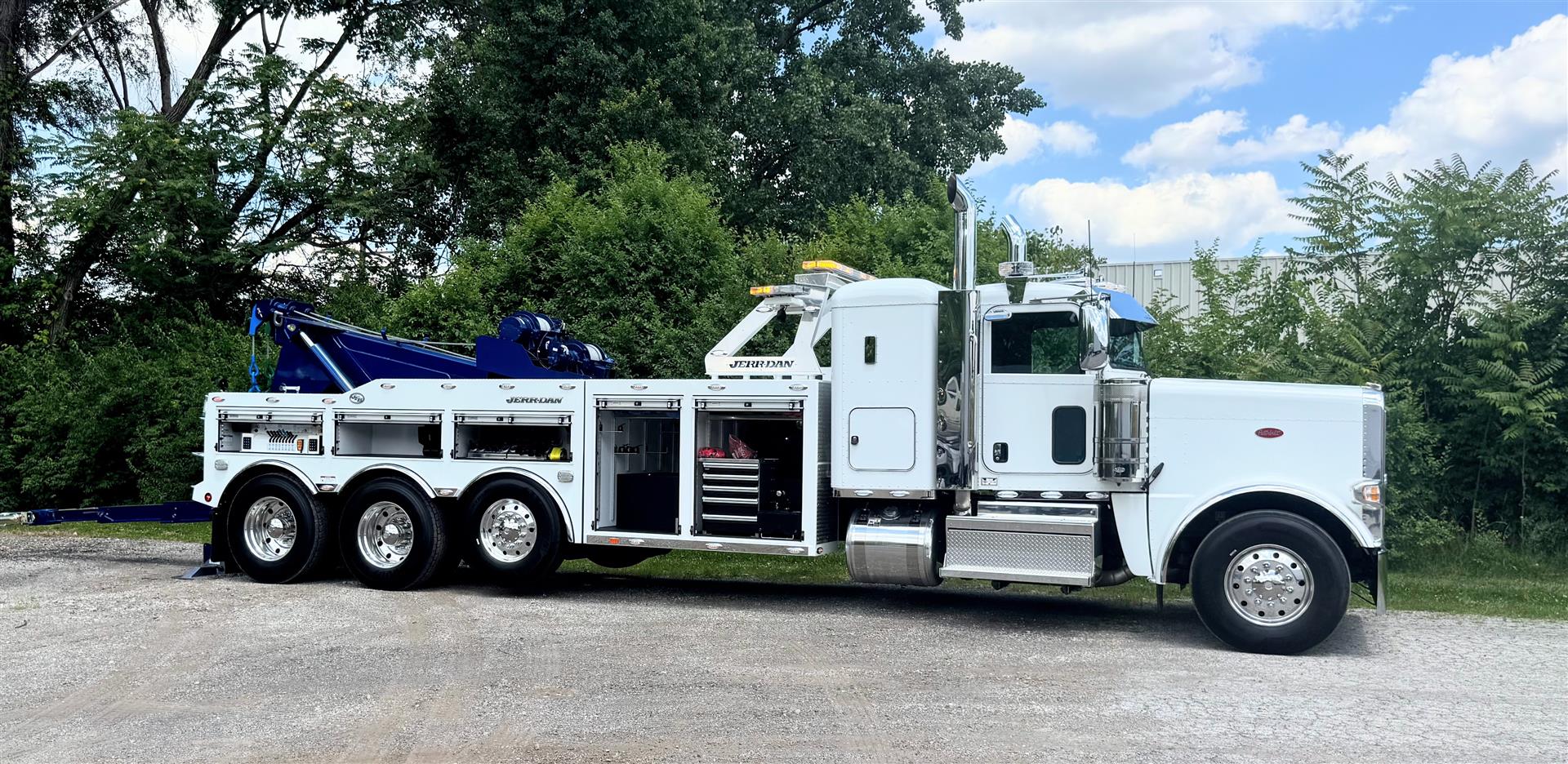

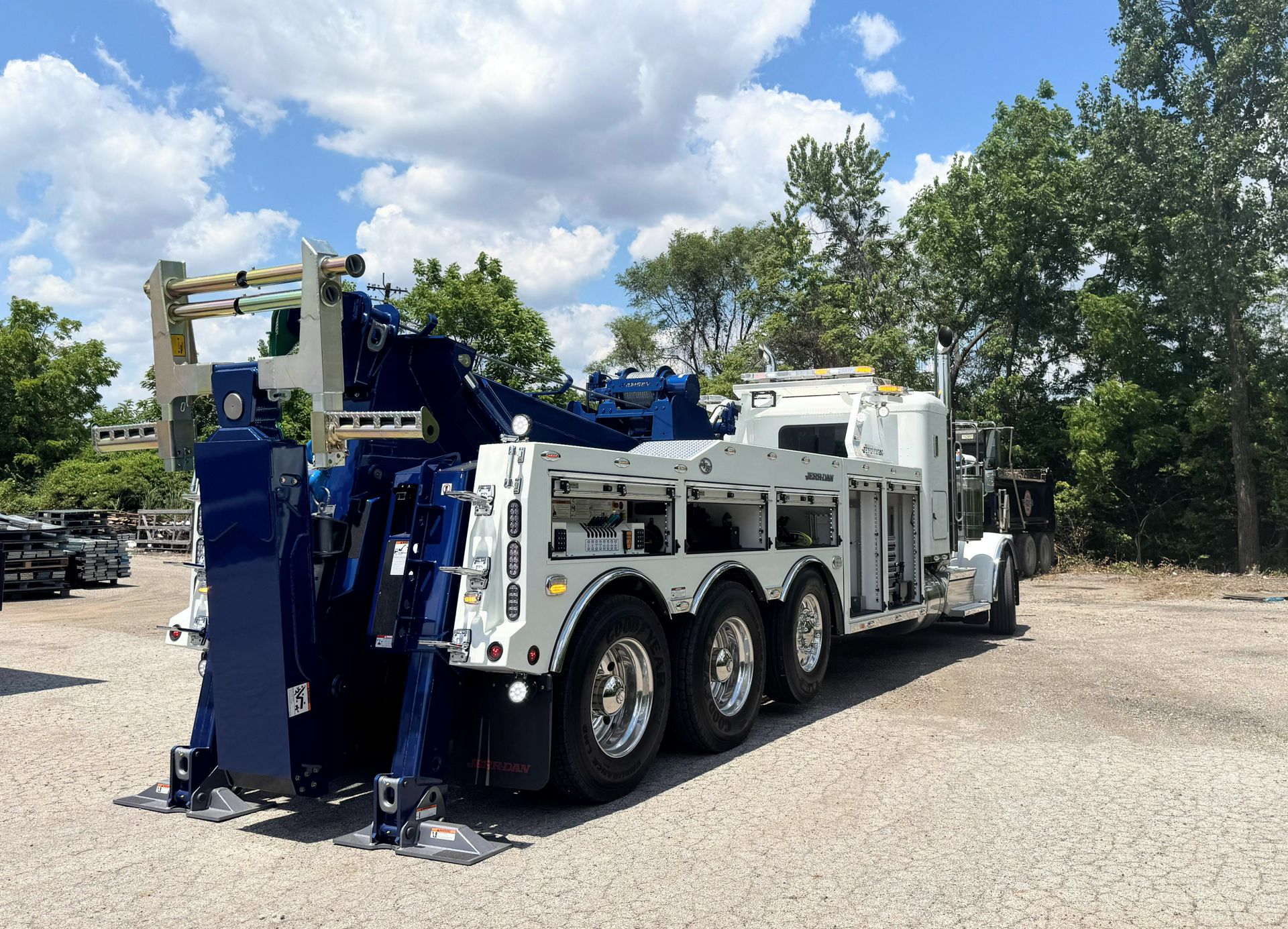

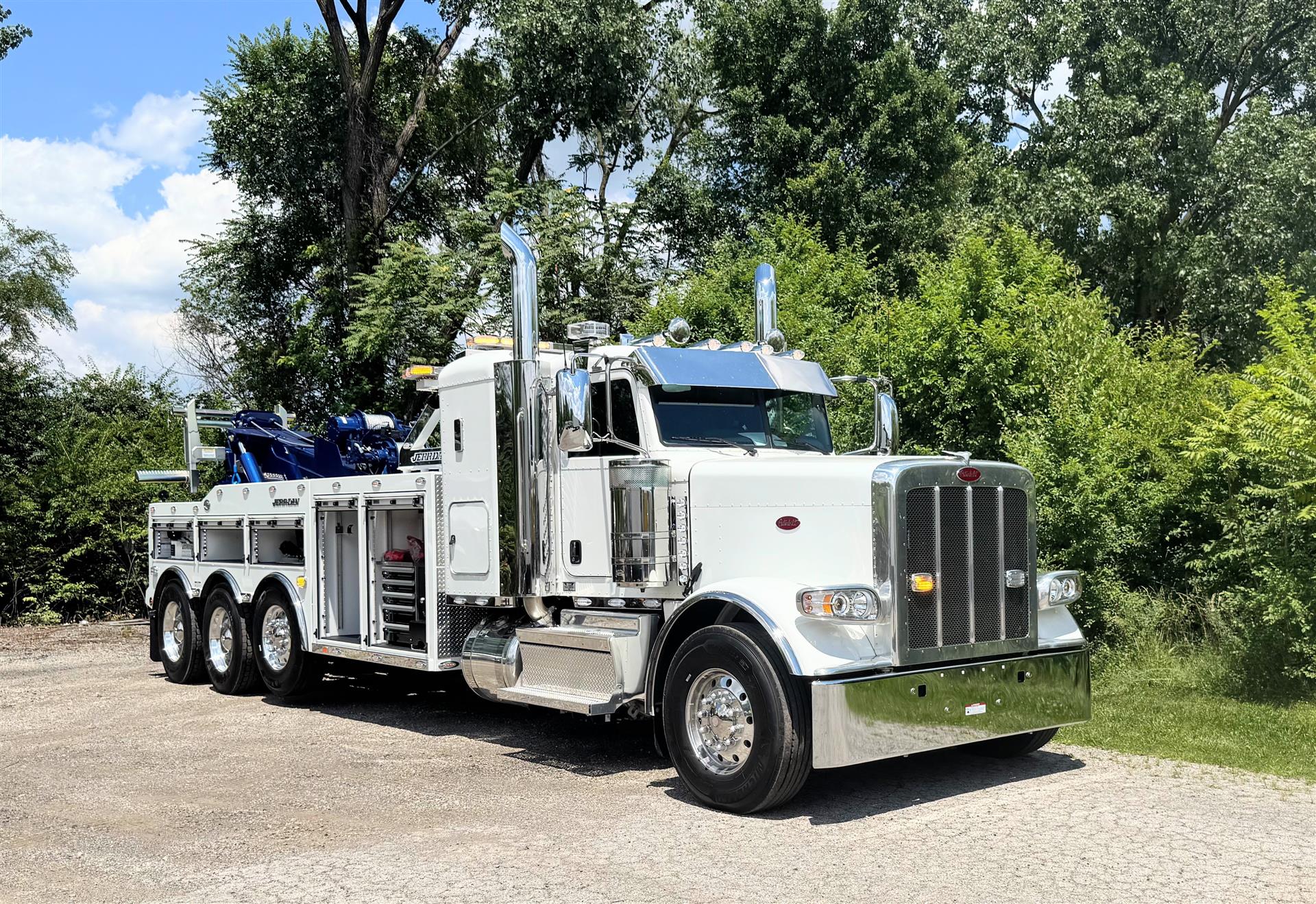

Unit Photos

Equipment:  May 2026 Build Date

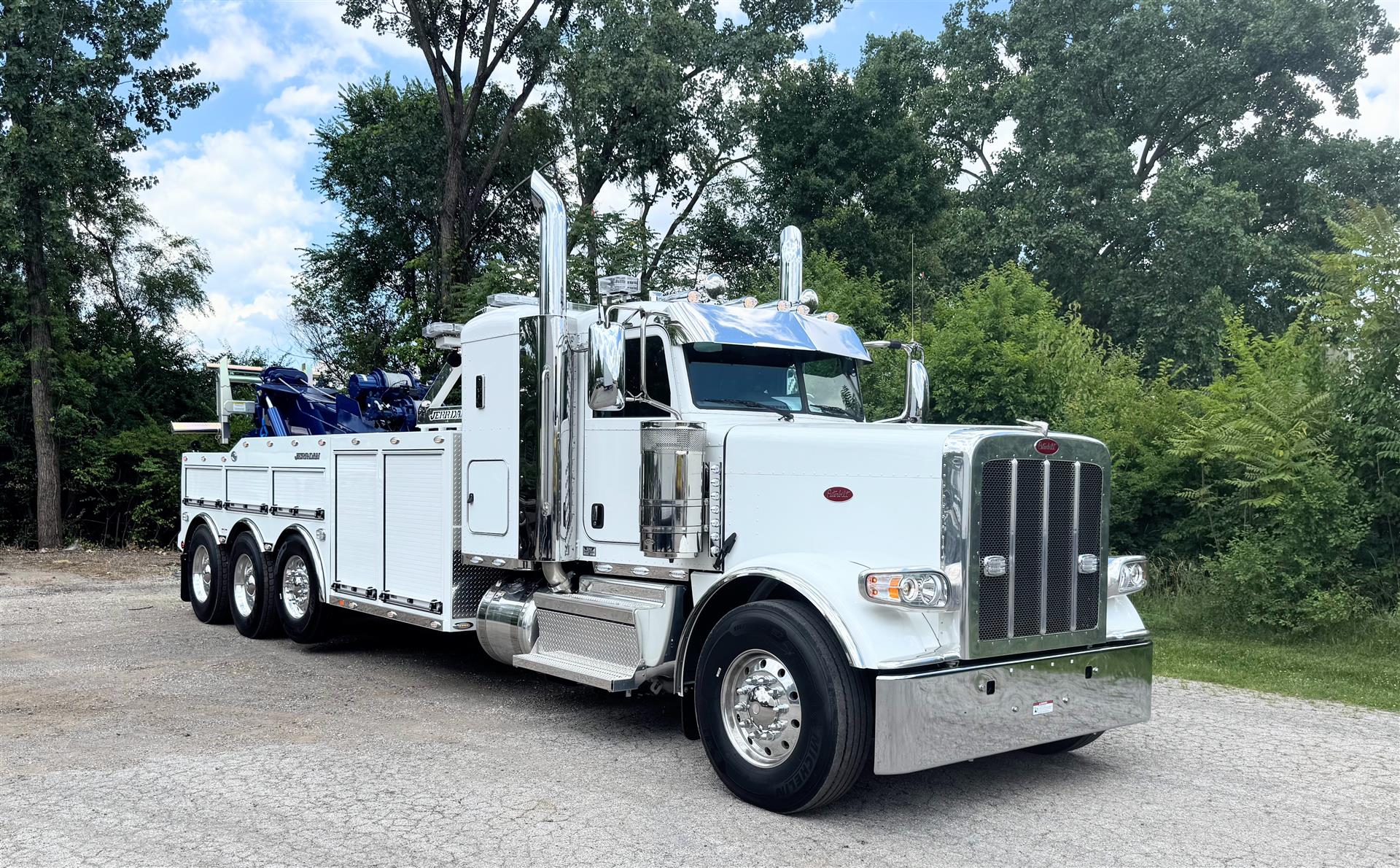

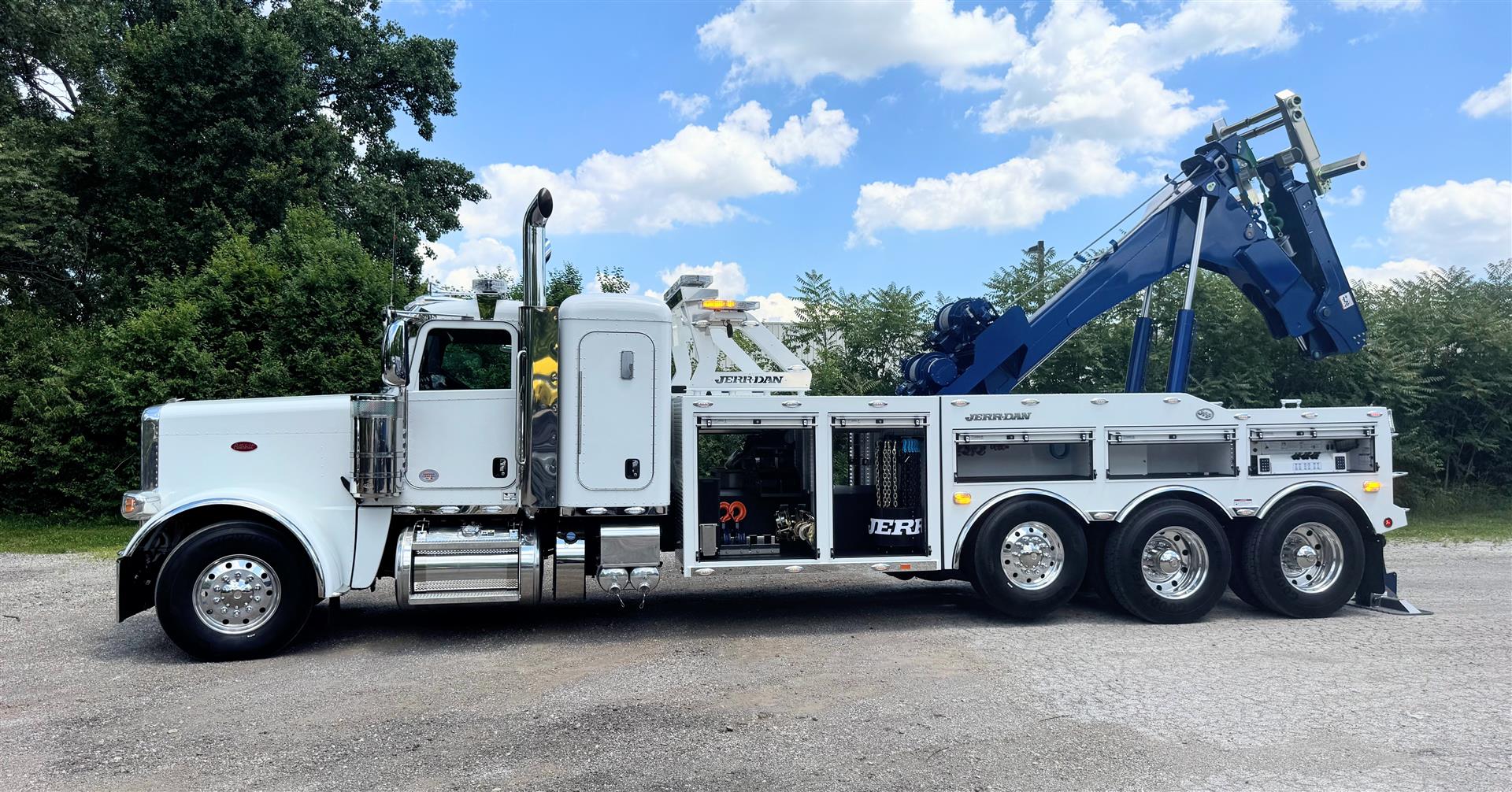

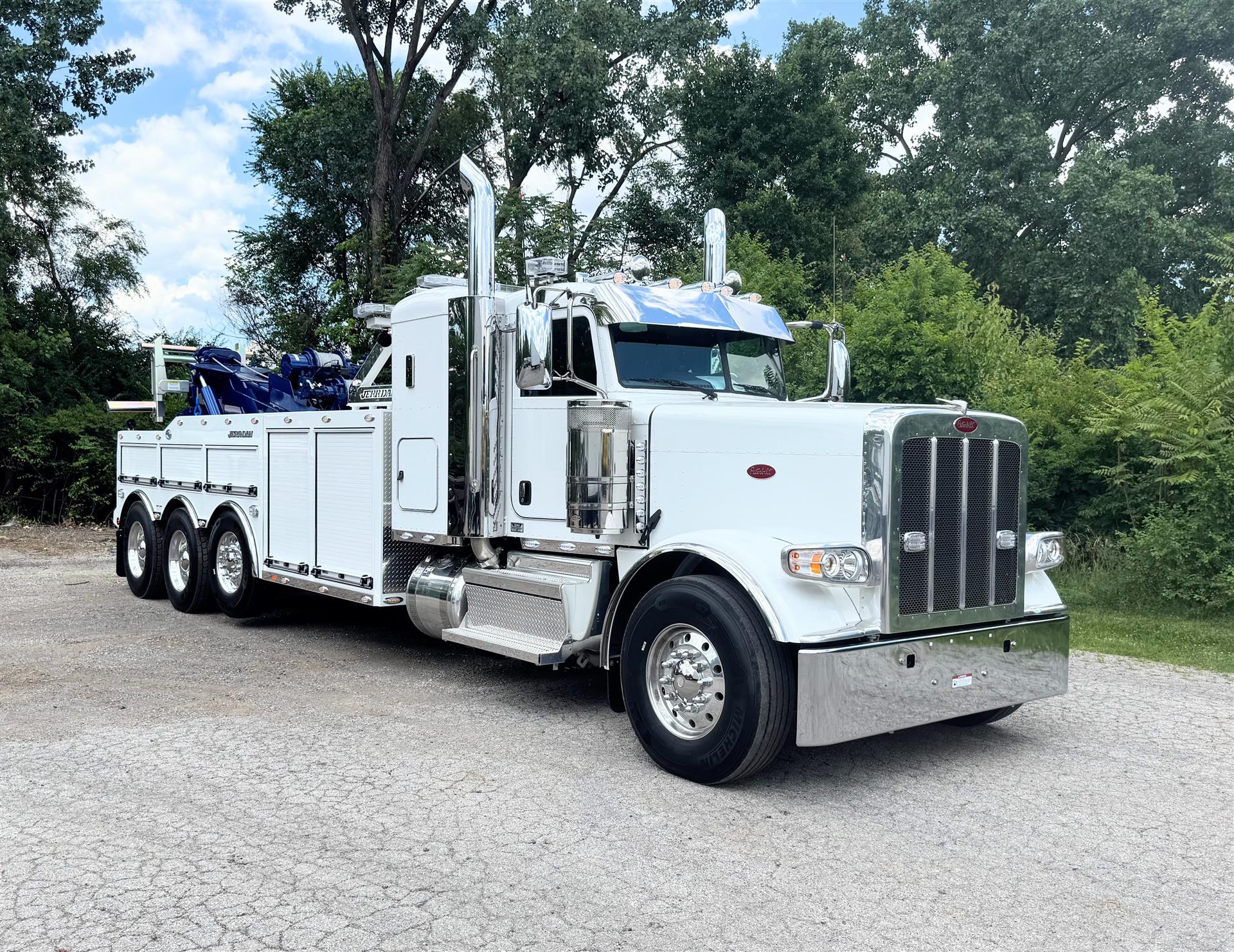

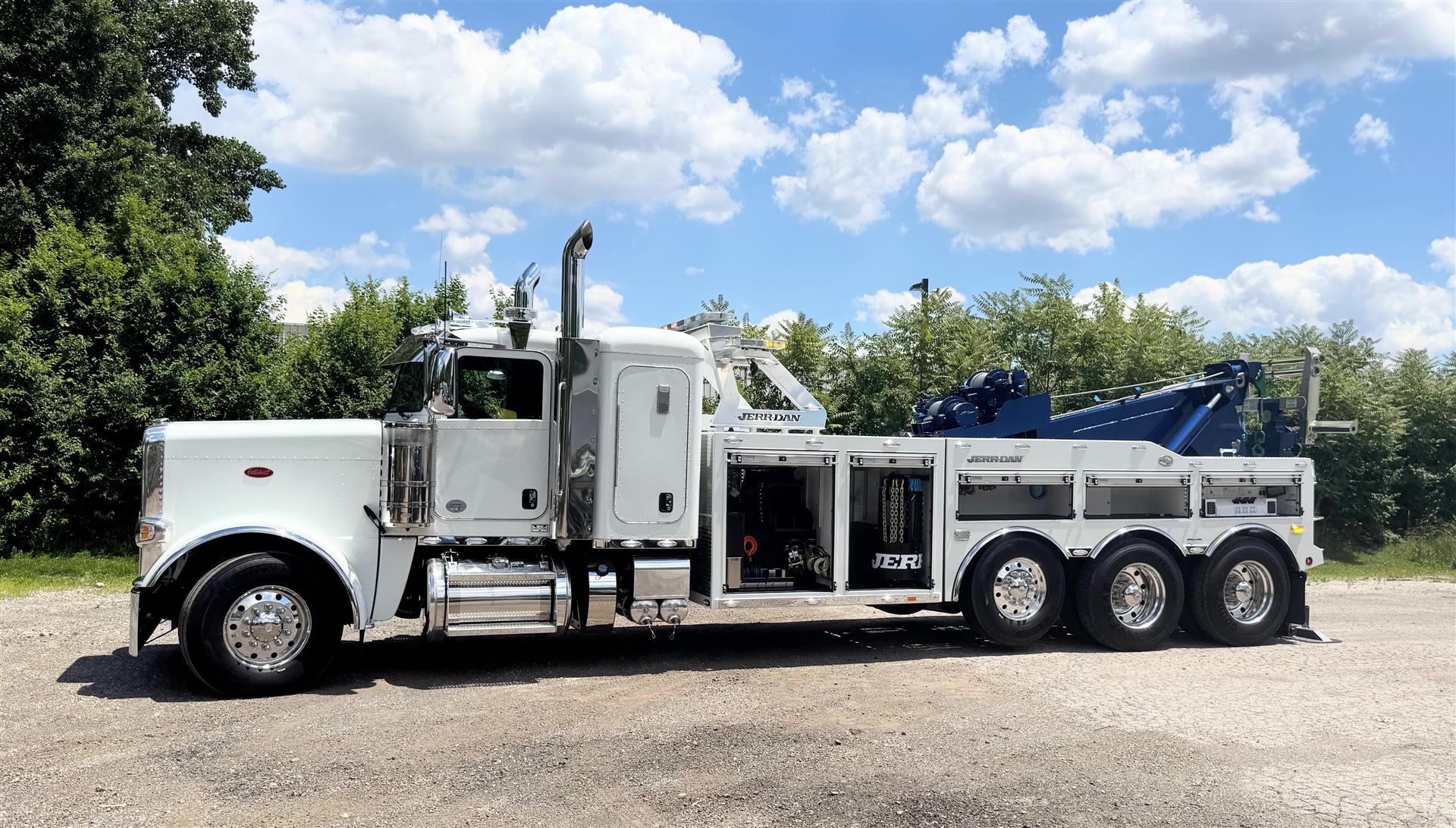

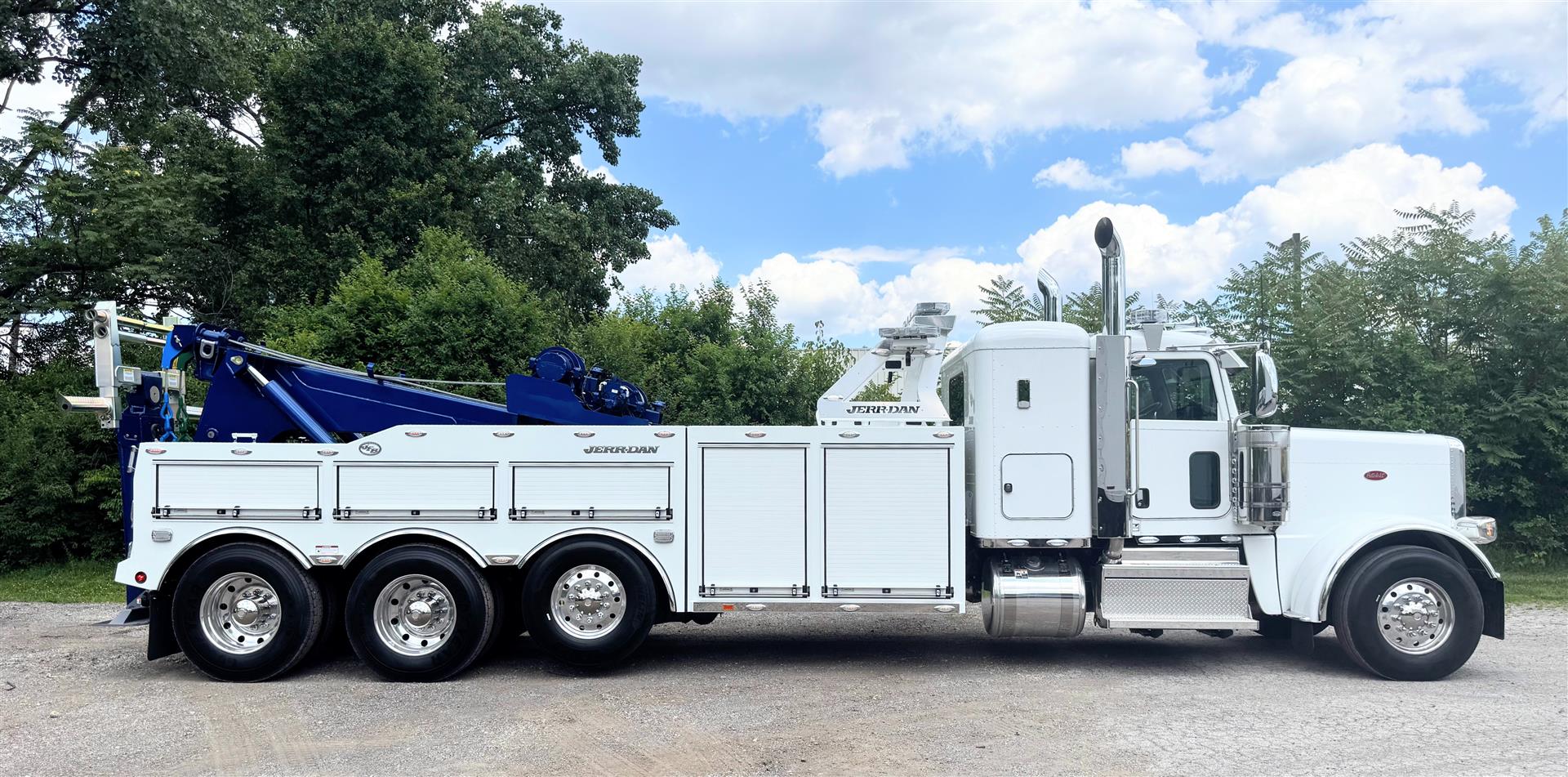

1 35T INT

Features:
1 •2-Section High-Strength Hydraulic Boom

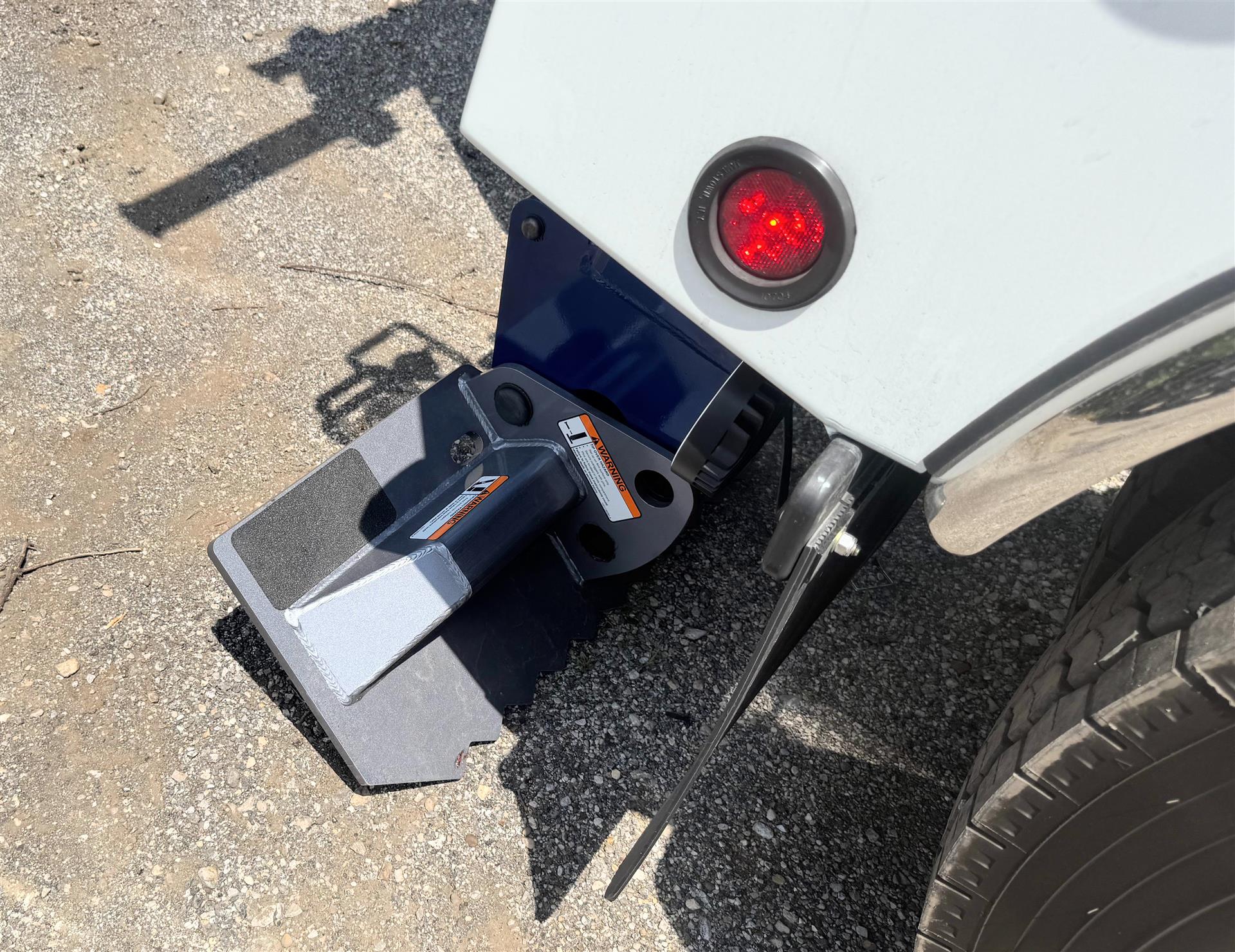

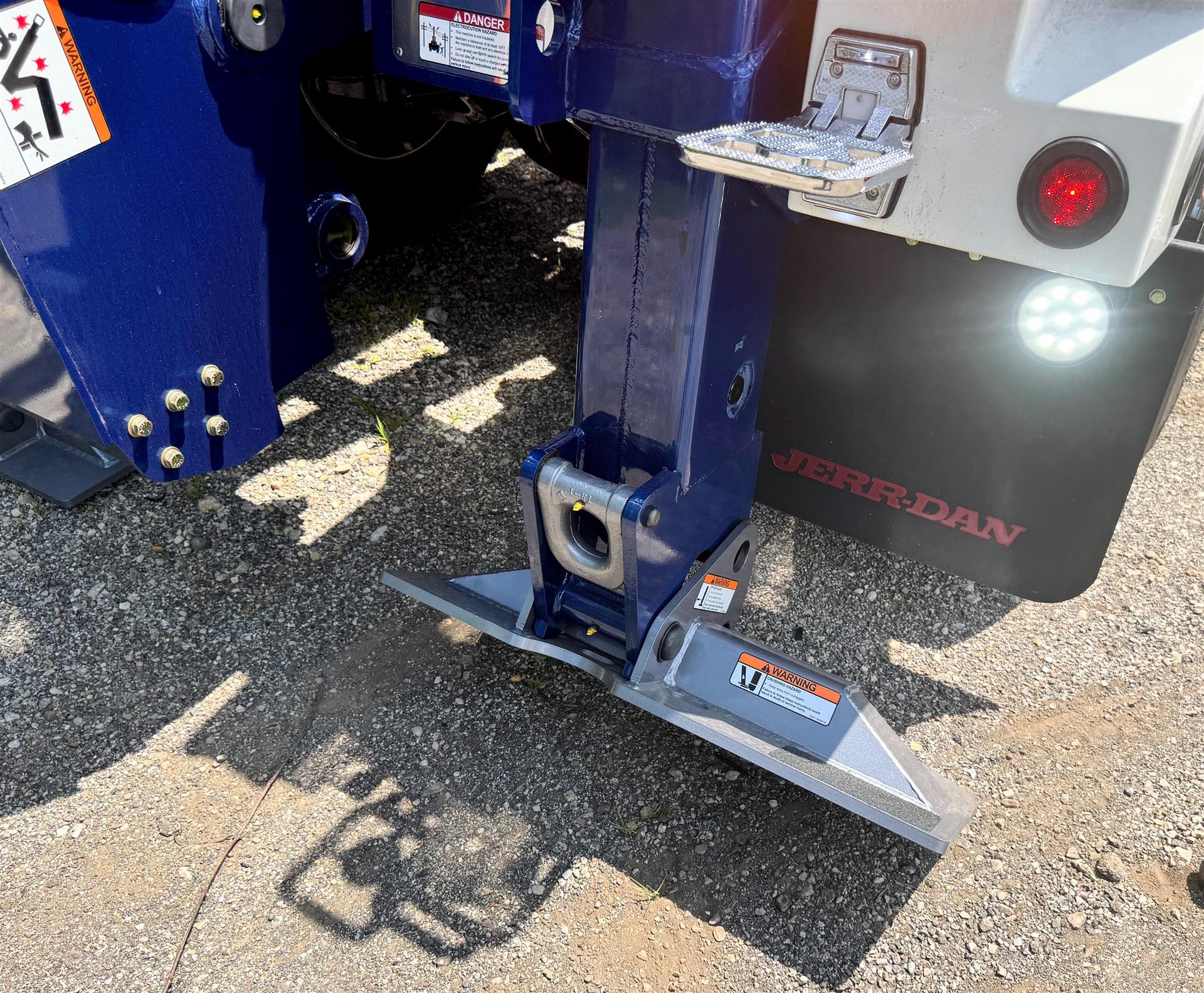

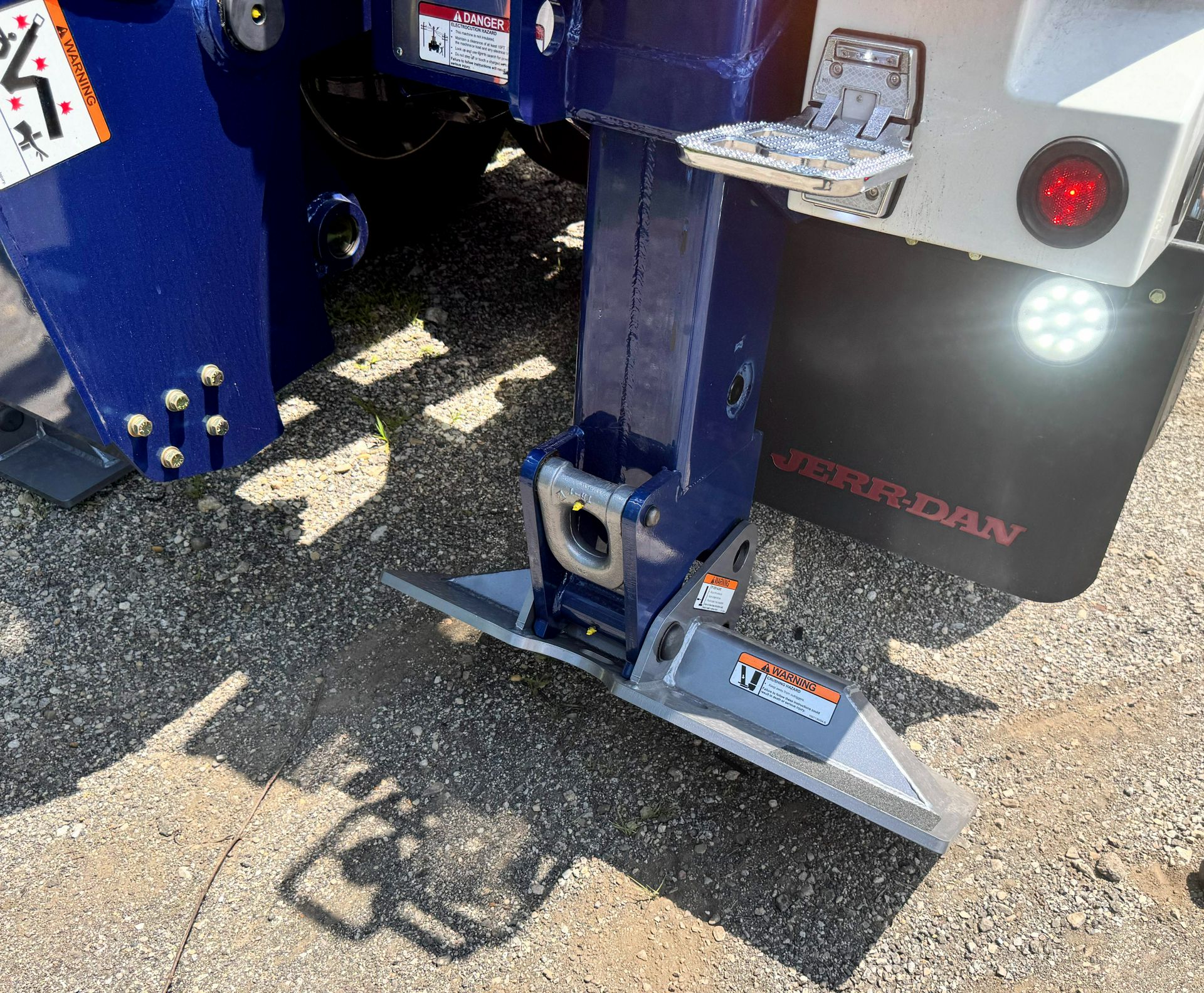

1 •Telescoping Rear Stabilizer with Integrated Flip-down Spade Feet
1 •Eight Rear Recovery Anchor Points at Rear of Subframe

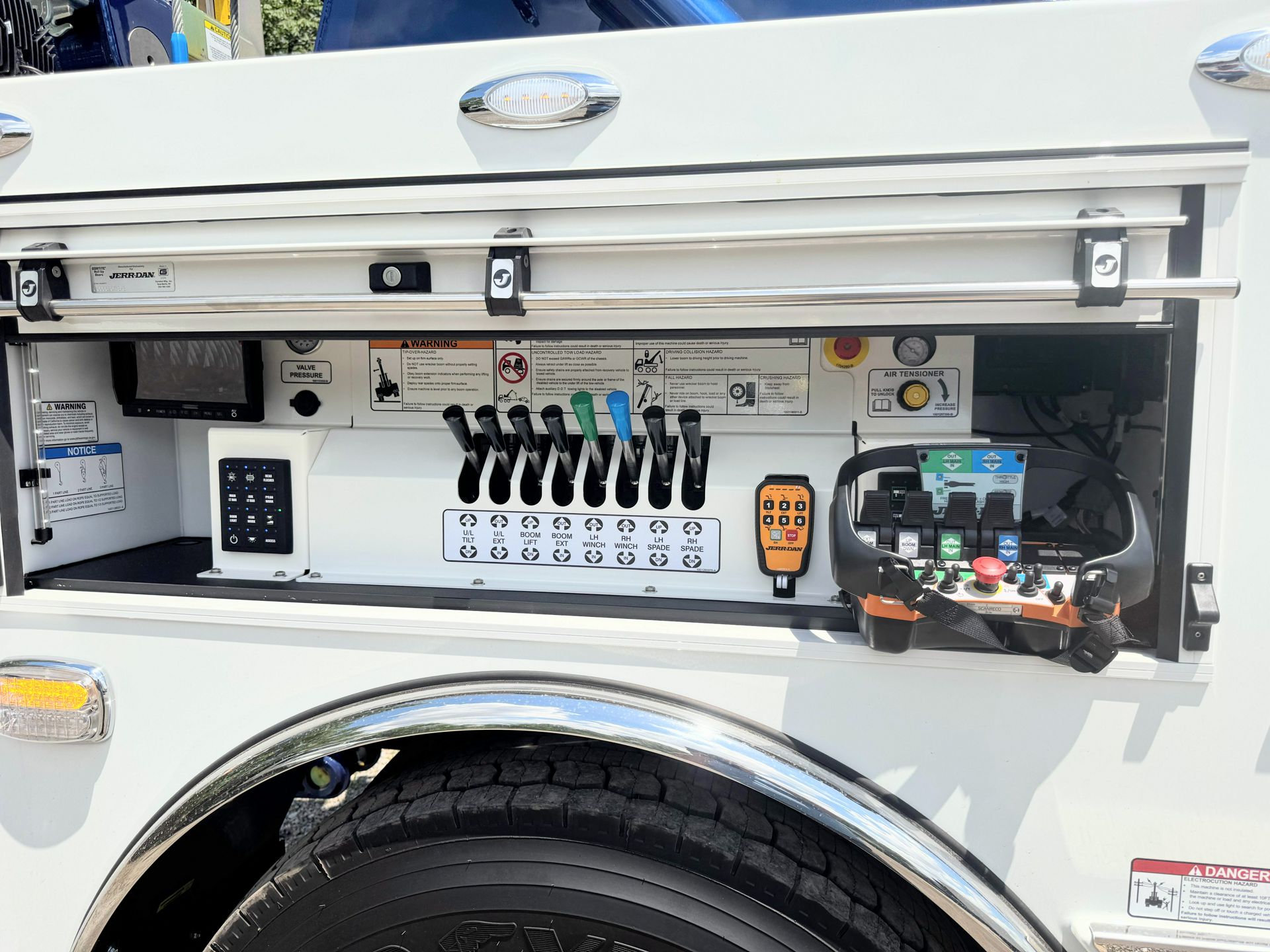

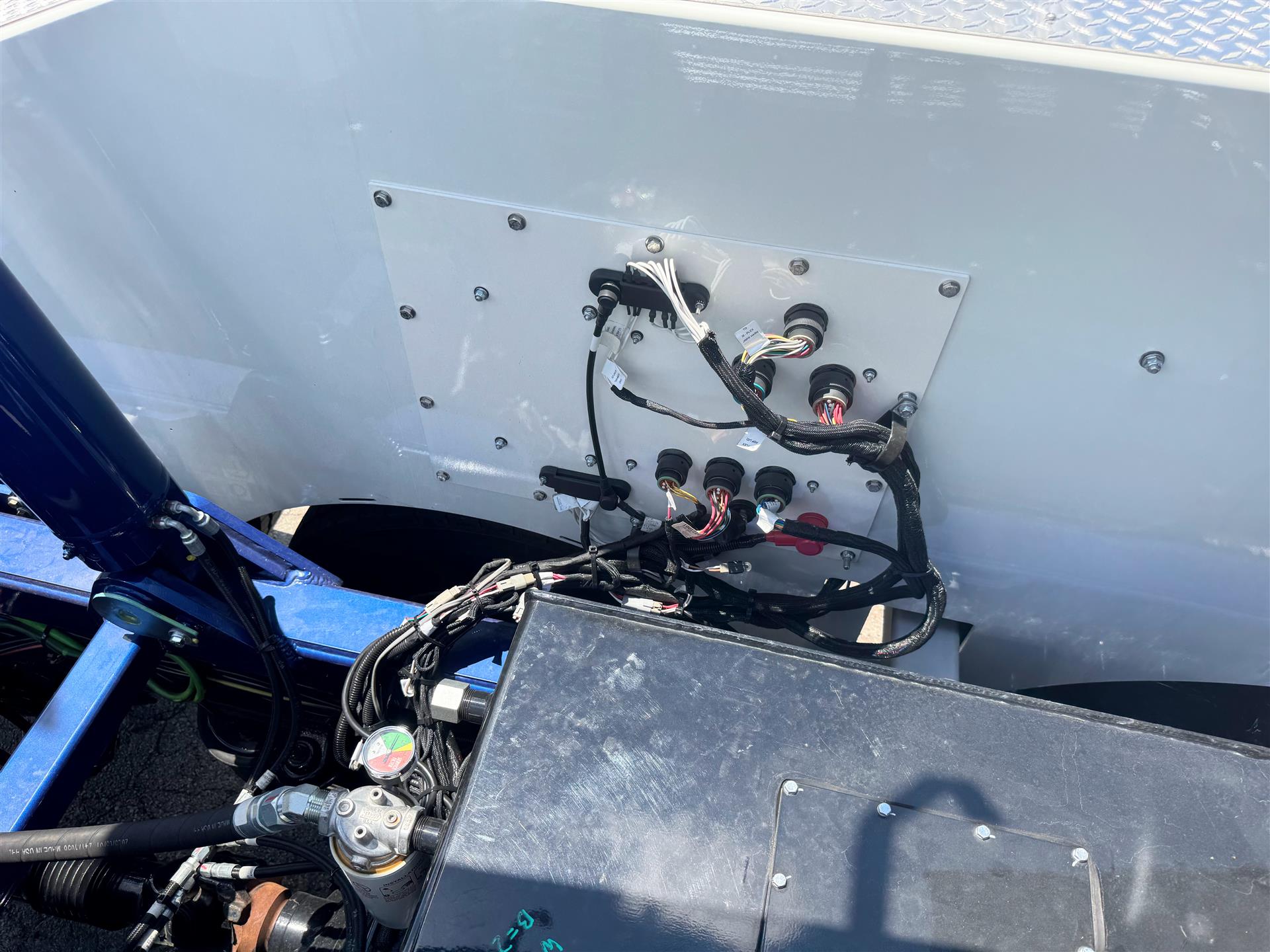

1 •3-Location Multiplex Electrical Controls
1 •2-Location Multiplex Air Controls

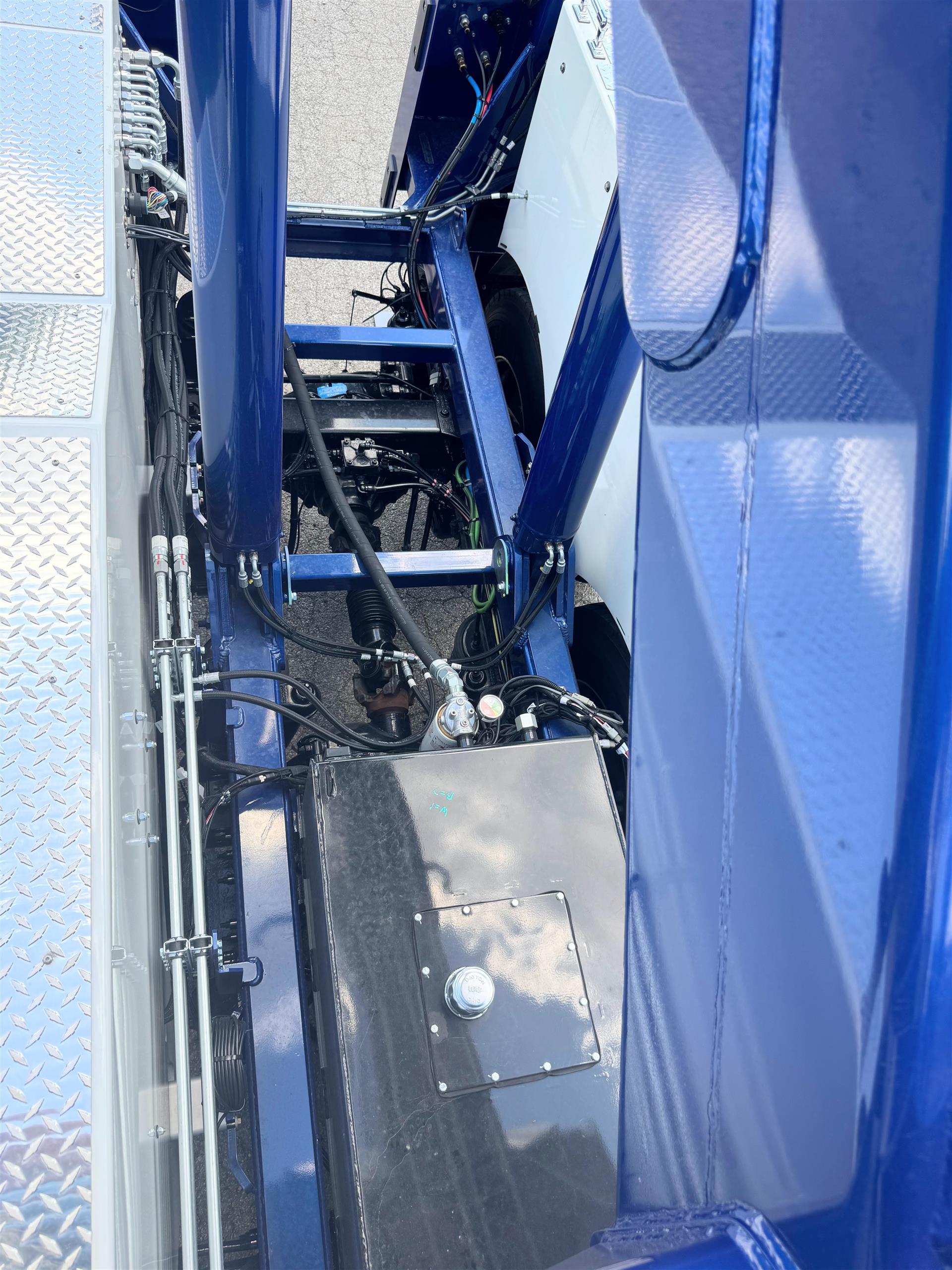

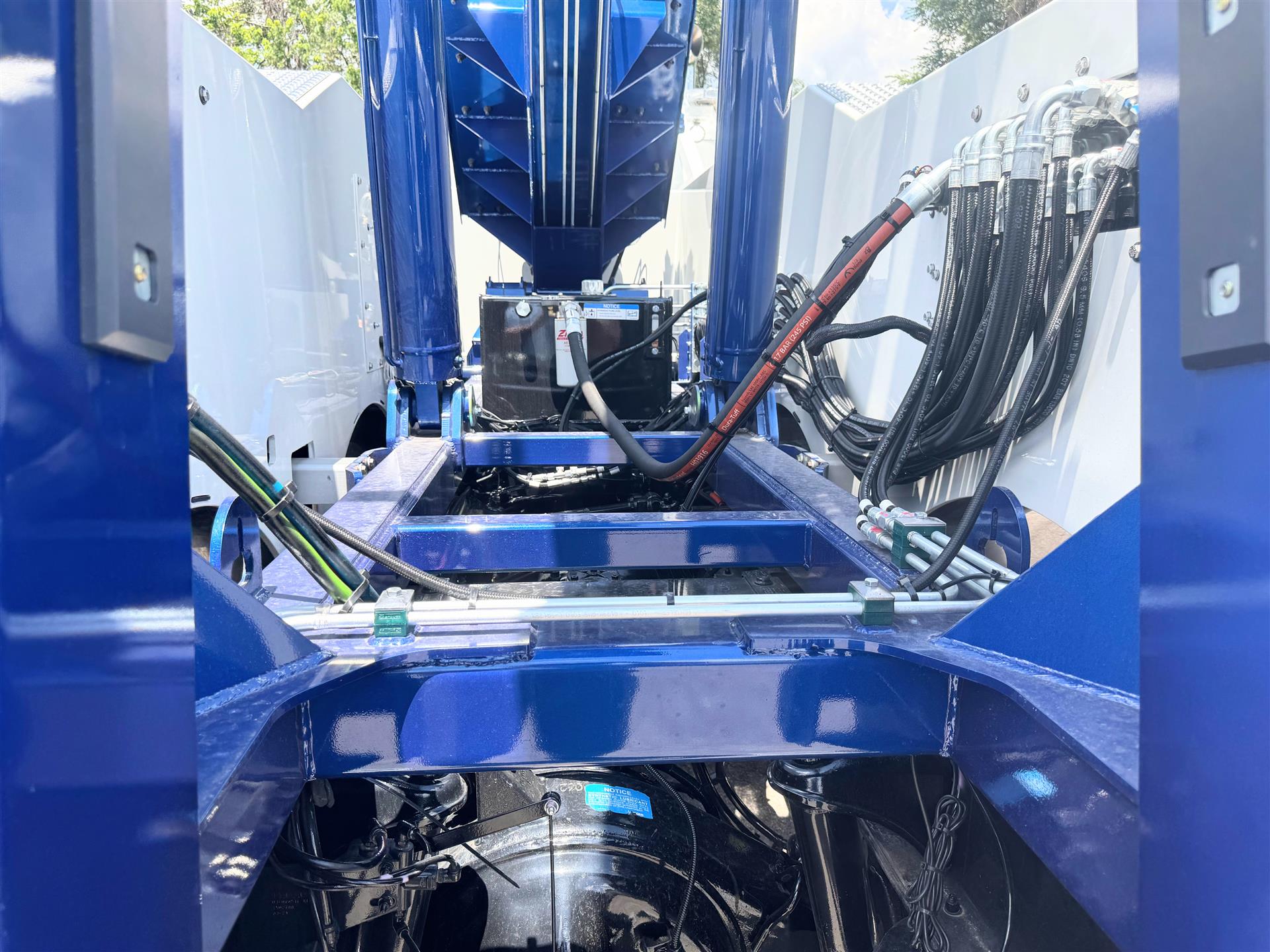

1 •Hydraulic Reservoir with Sight Gauge

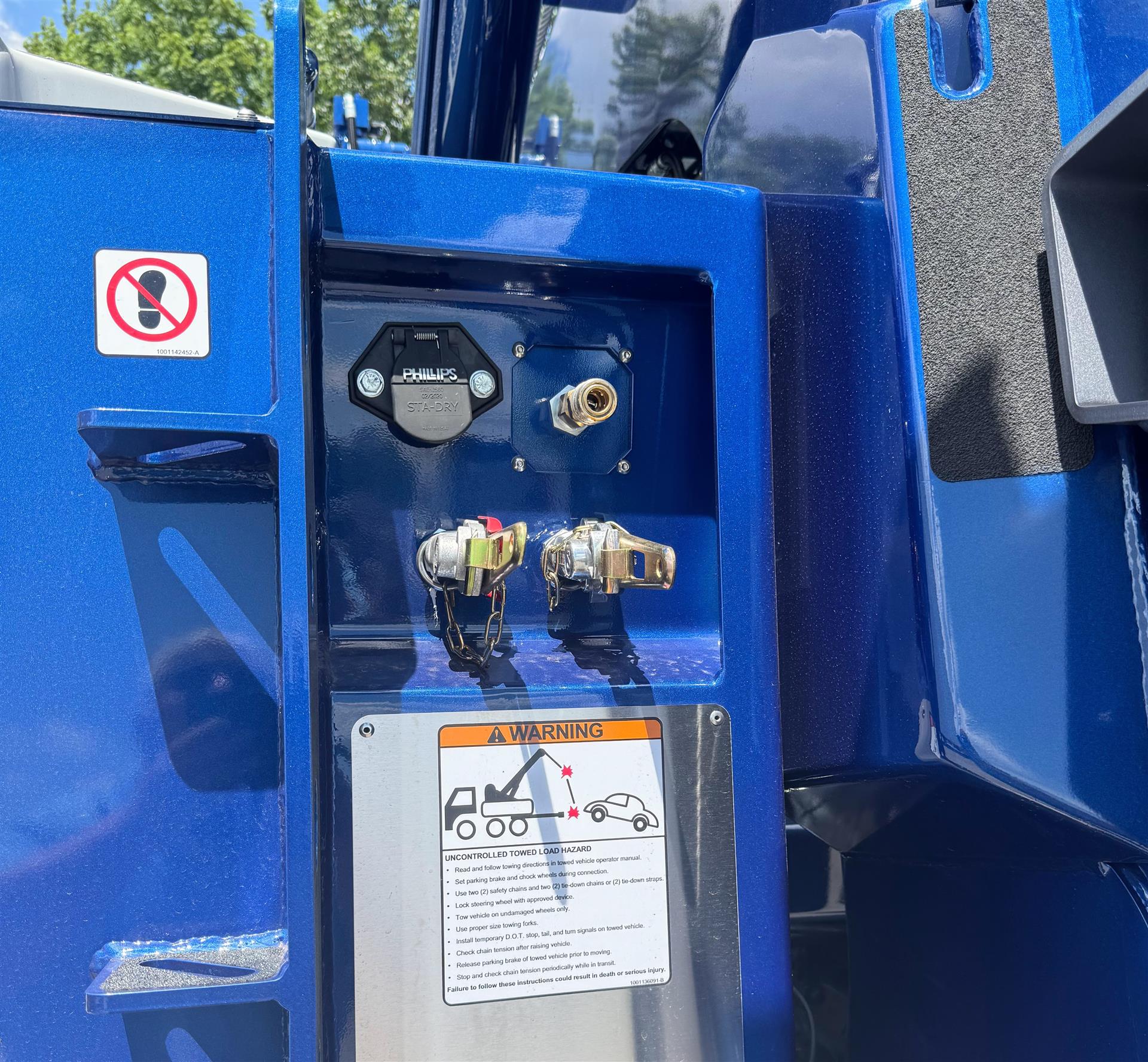

1 •Recessed Glad Hands and 7-Pin Connectors
1 •Passenger Side Hydraulic Pressure Gauges
1 •LED Lighted Steps and Grab Handles for Nighttime Tailboard Access
1 •Diamond Tread & Anti-skid Surfaces for Service Access to Top of Body

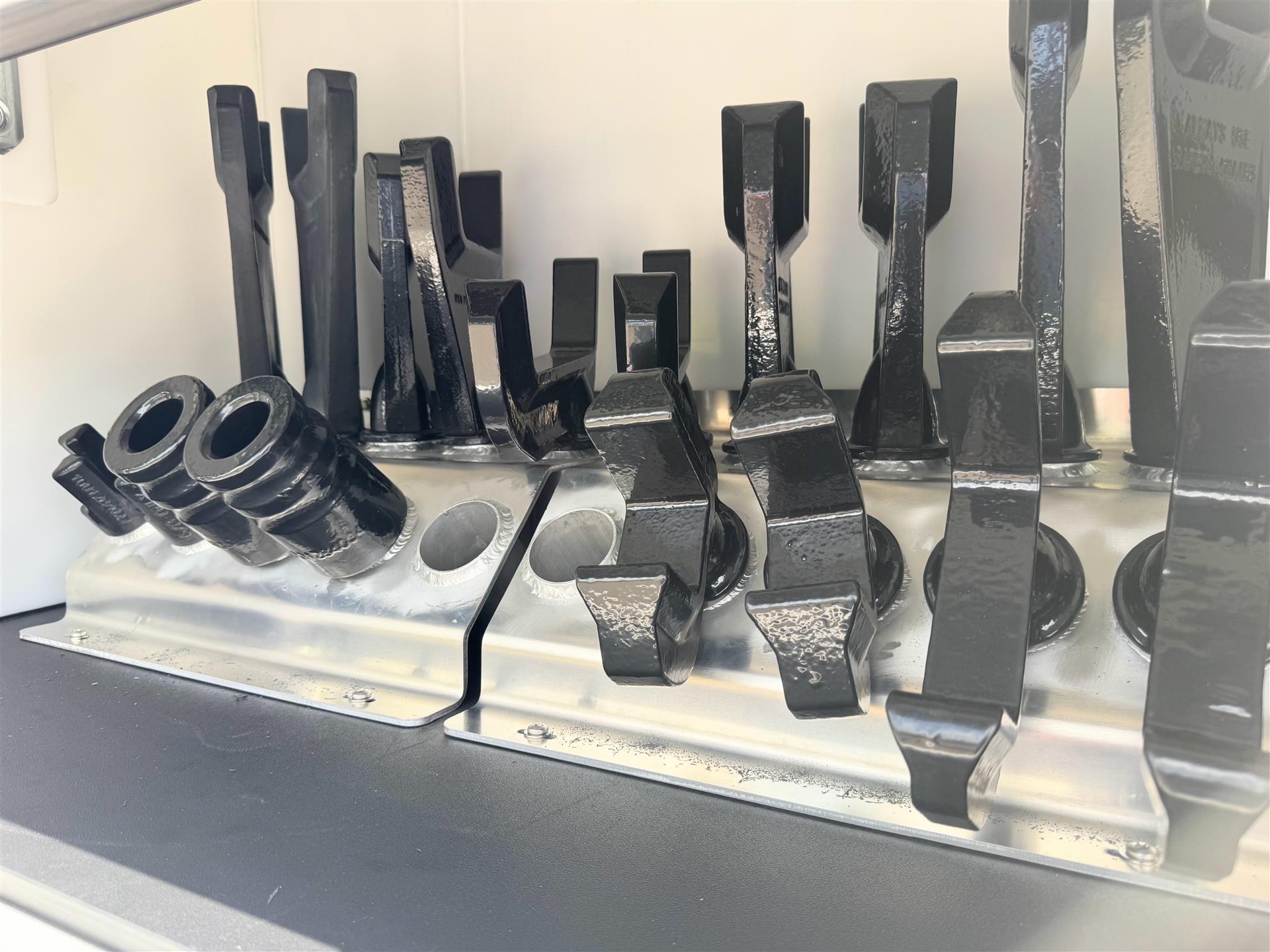

1 •Frame Forks (Set) with Storage in Base Body, to include:
     1 ▪Chain Hook Adapters with Clevis Pins and Cotter Keys (Qty 2)
     1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (RH)
     1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (LH)
     1 ▪3.00 Short Fork Casting (Qty 2)
     1 ▪3.00 Medium Fork Casting (Qty 2)
     1 Frame Forks Hendrickson Steertek
     1 ▪Hitch Pins (Qty 2)
     1▪Heavy-duty Tie-Down Straps (Pair)

112" Base Body:

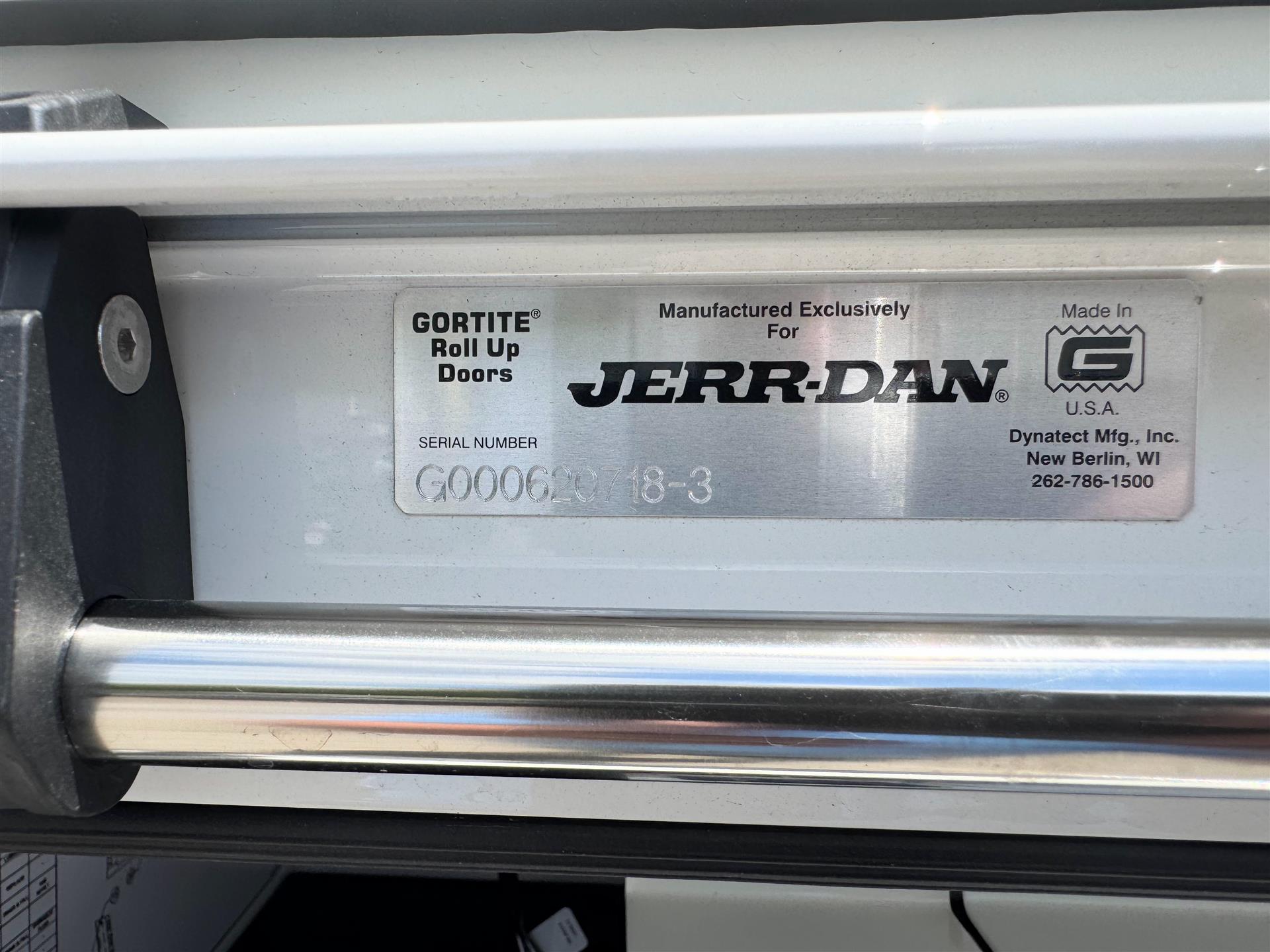

1 Tri-axle Base Body with Painted Roll-up Doors:
1 Position A - Tunnel Toolbox:

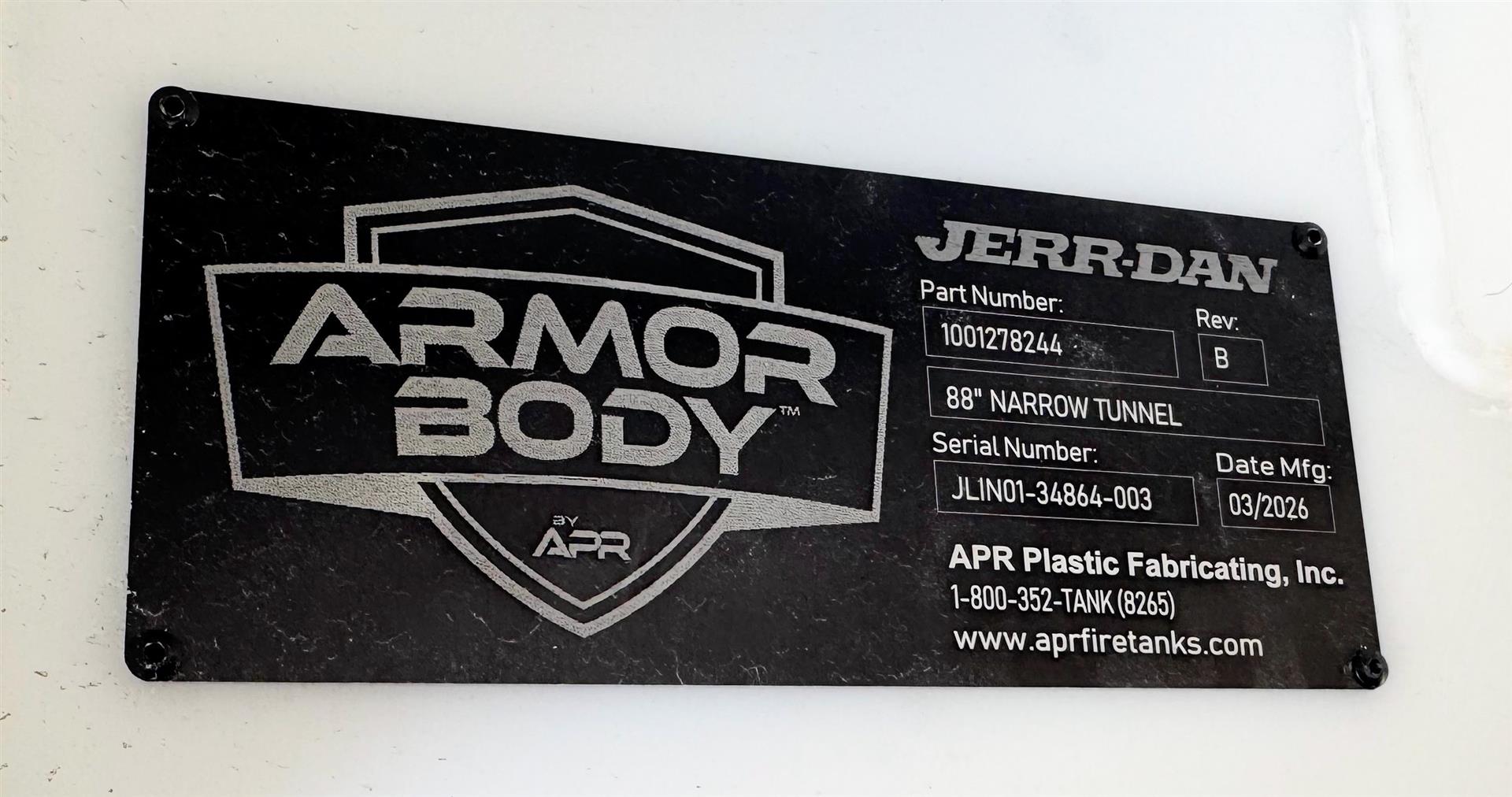

1 88" Tunnel with Painted Roll-up Doors
1 1.4K Counter Weight

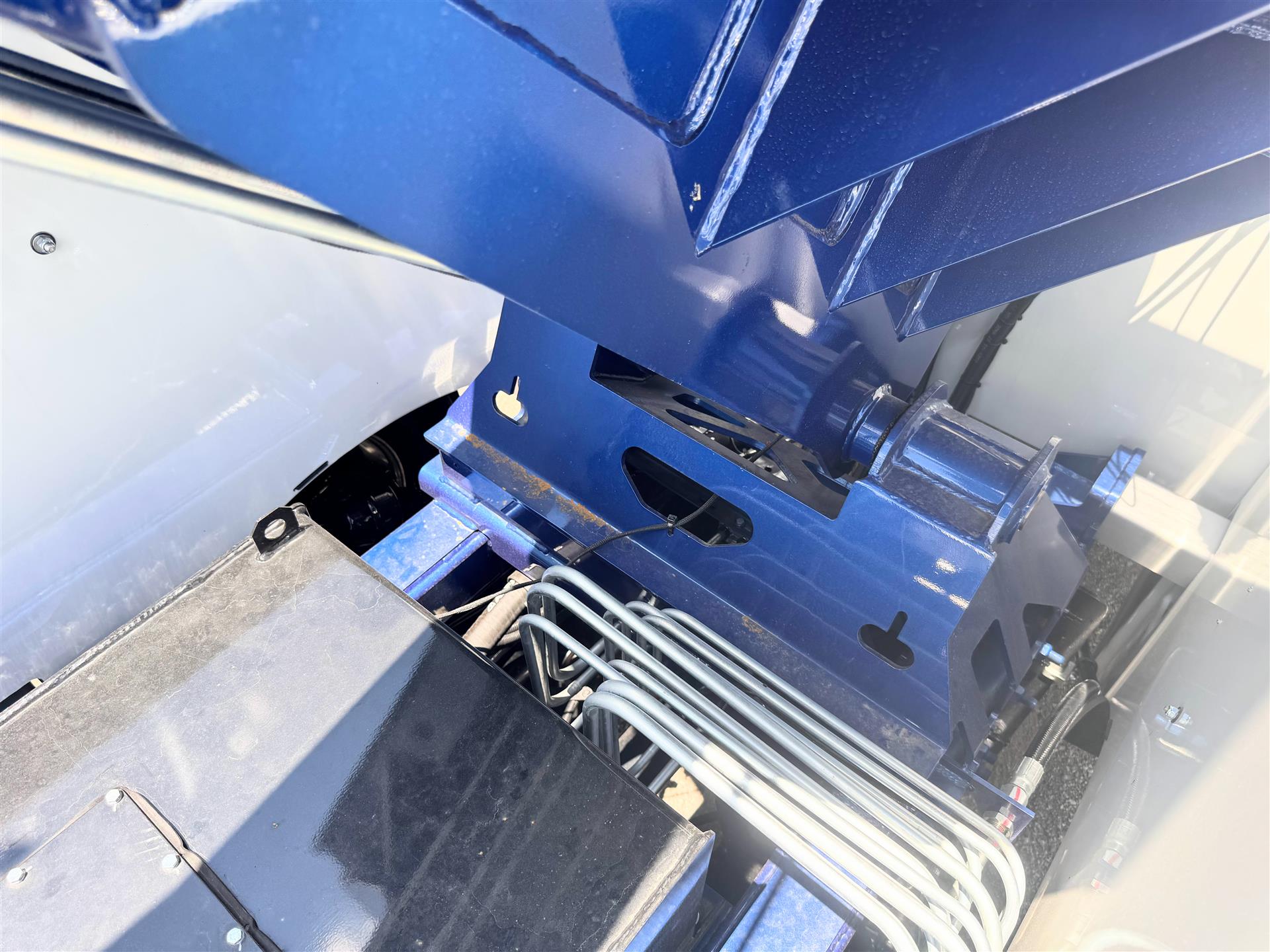

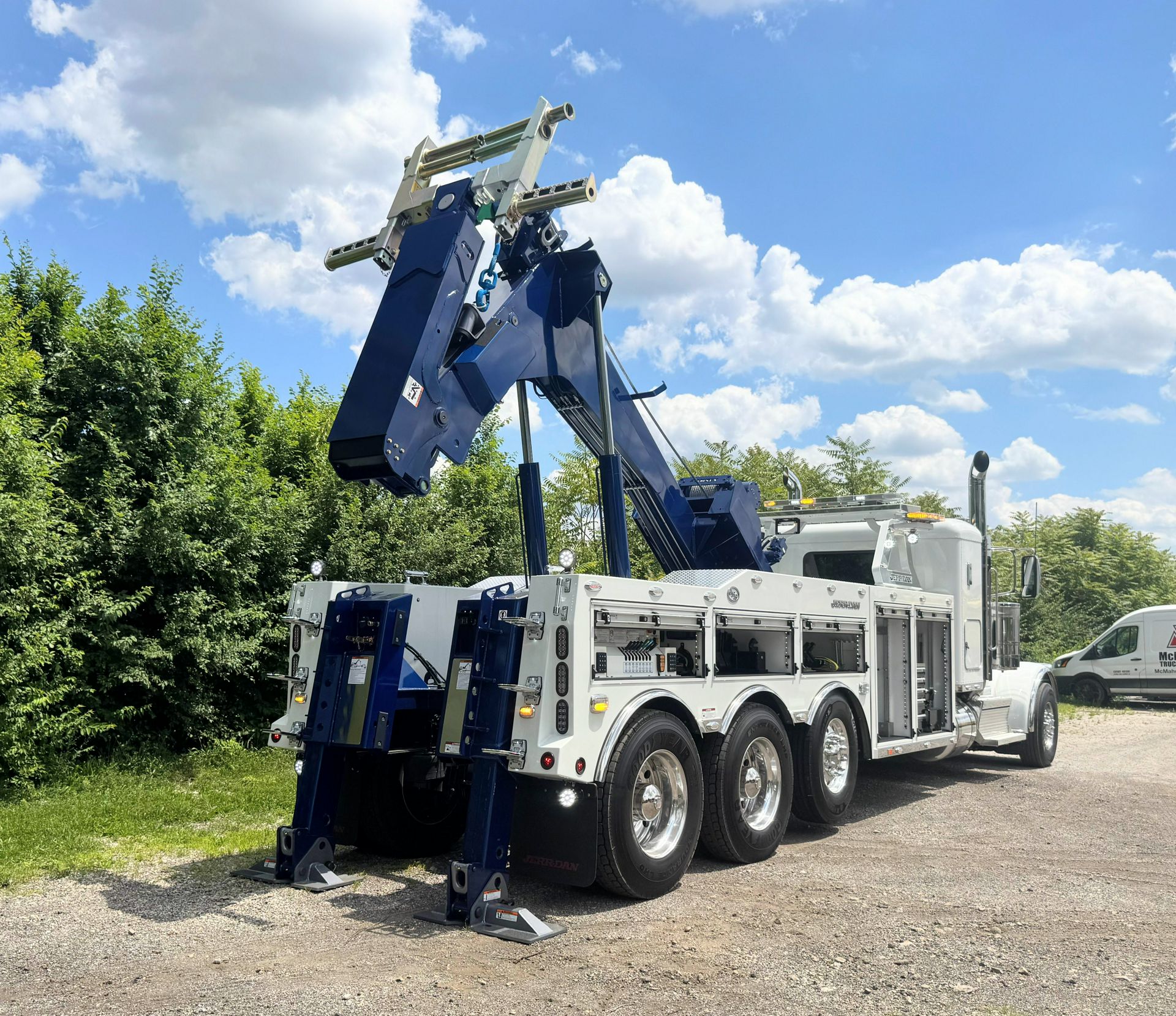

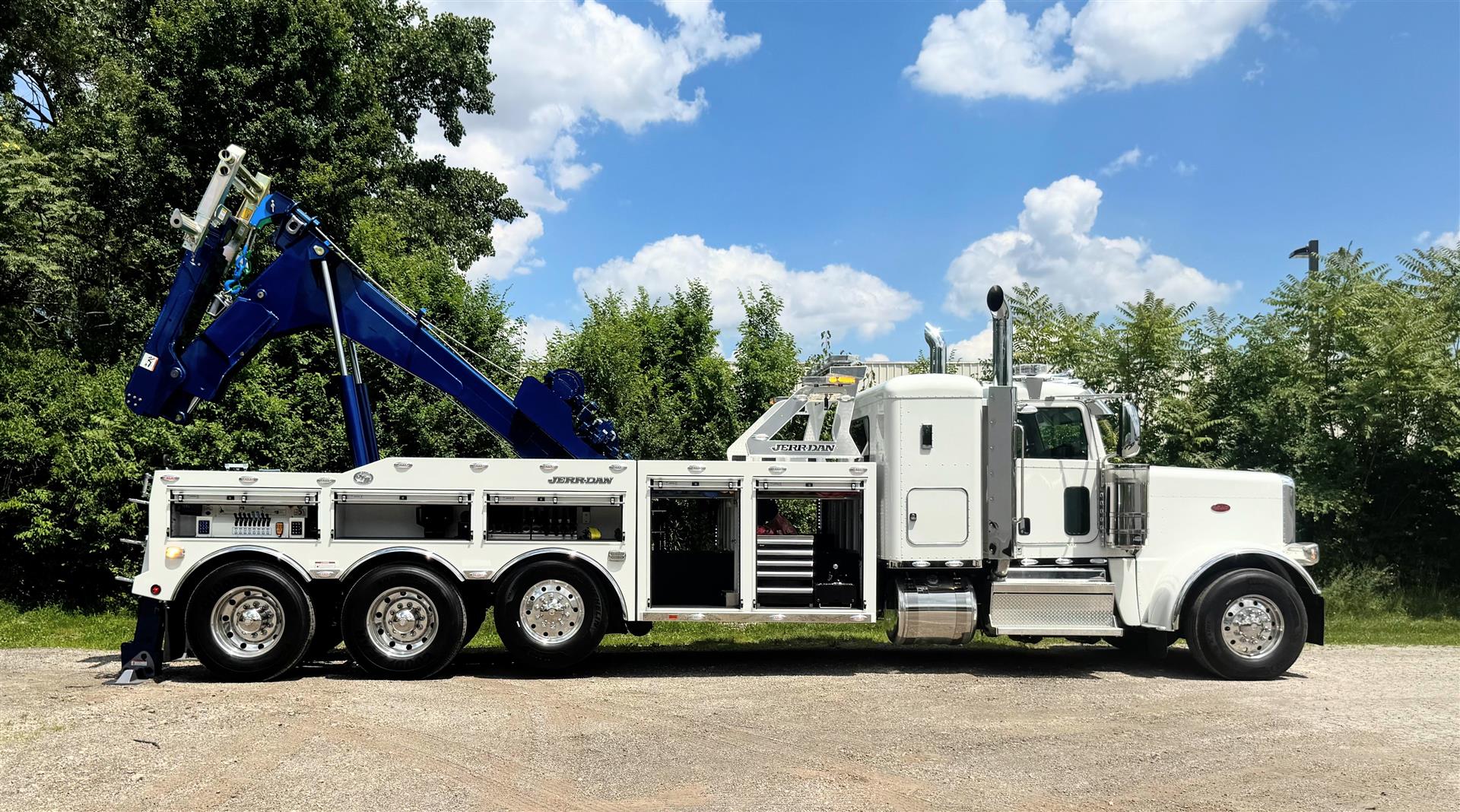

Recovery Boom:
1 (2) Stage

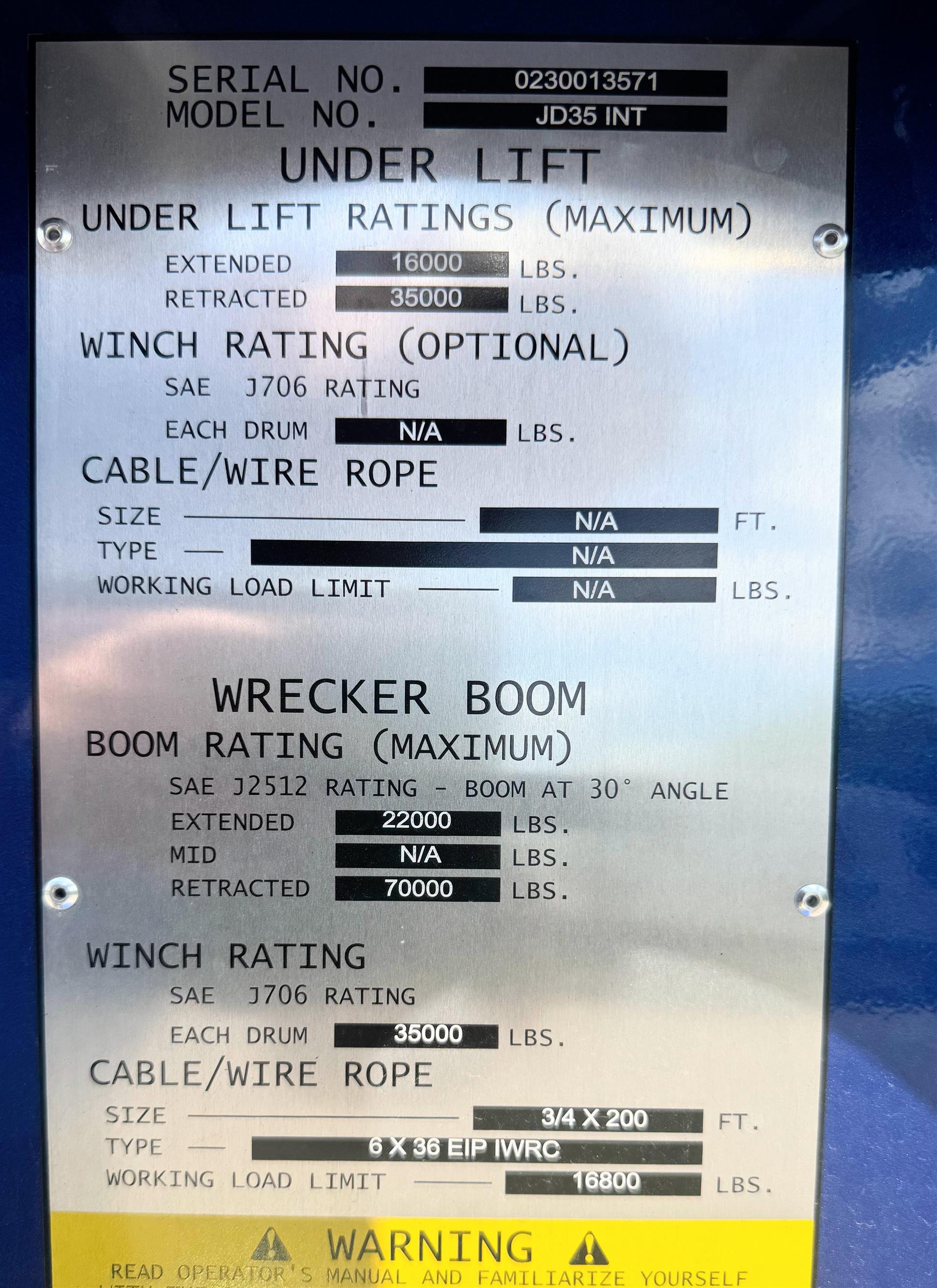

1 Rated Capacity @ 30° Retracted 70,000 lb
1 Rated Capacity @ 30° Extended 22,000 lb
      Reach Past Tail Board
1 Extended @ 0° 132"
1 Extended @ 30° 87"
     Operating Range
1 Maximum Boom Angle 39°
1 Maximum Hook Height 225"

Boom Winch:

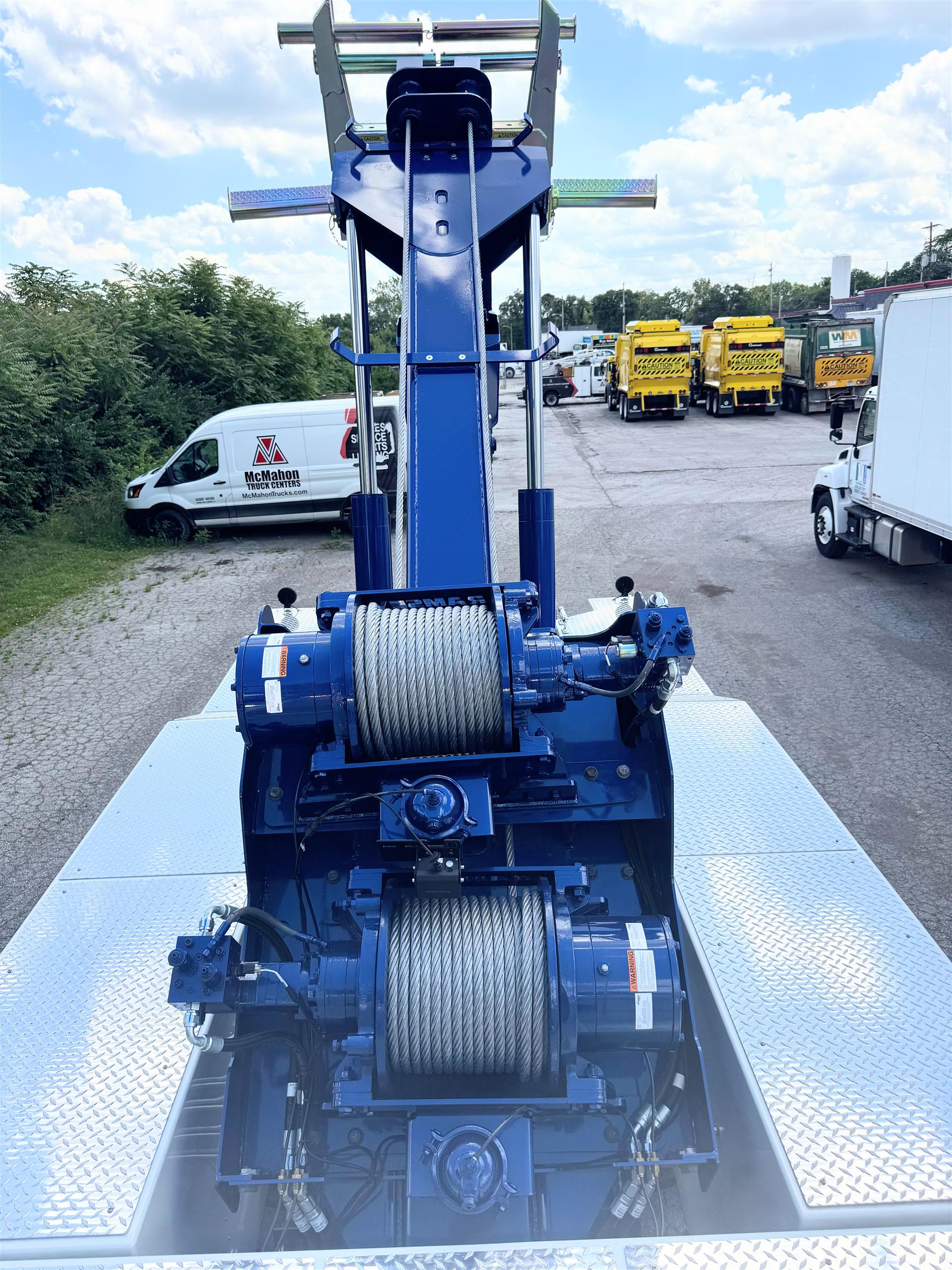

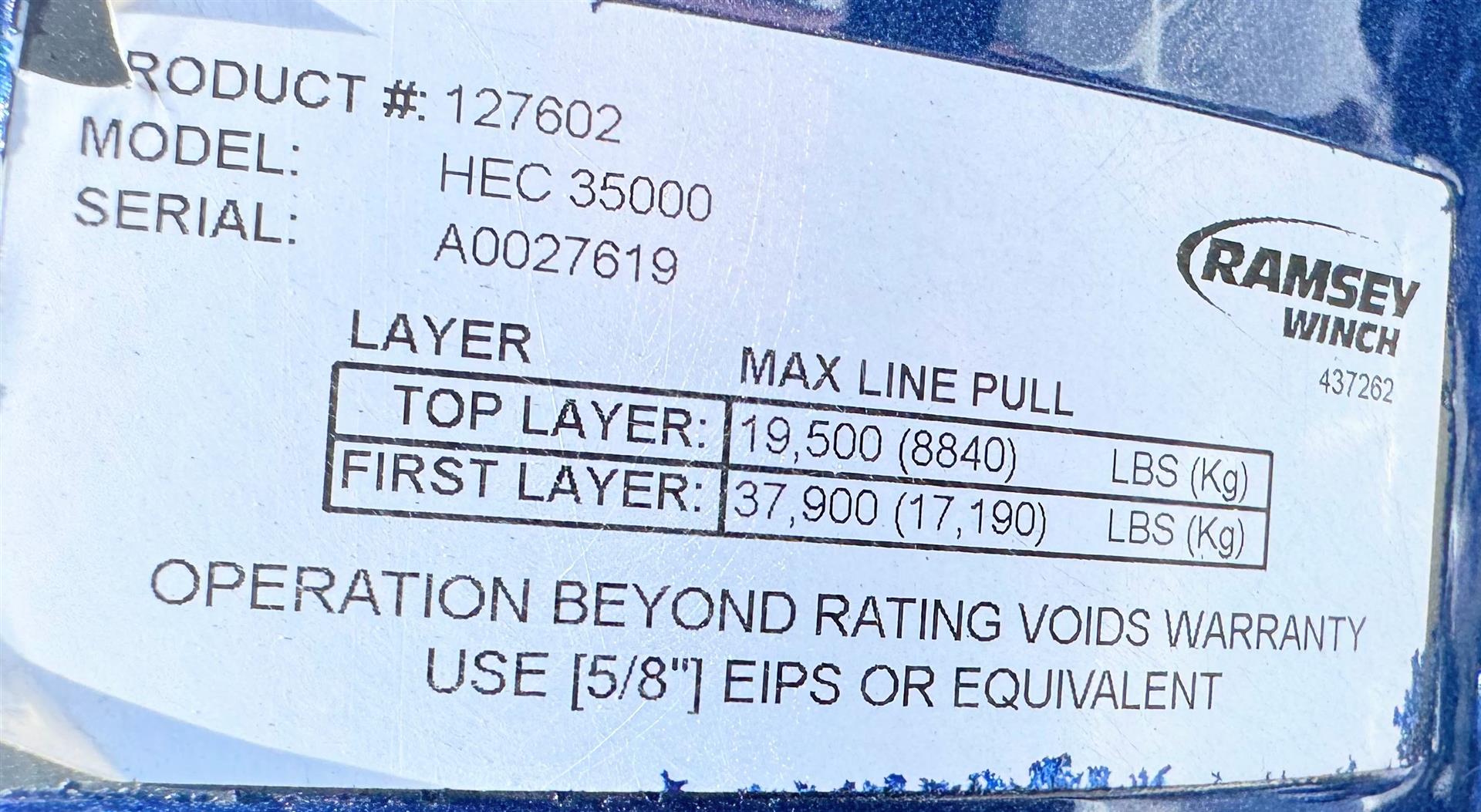

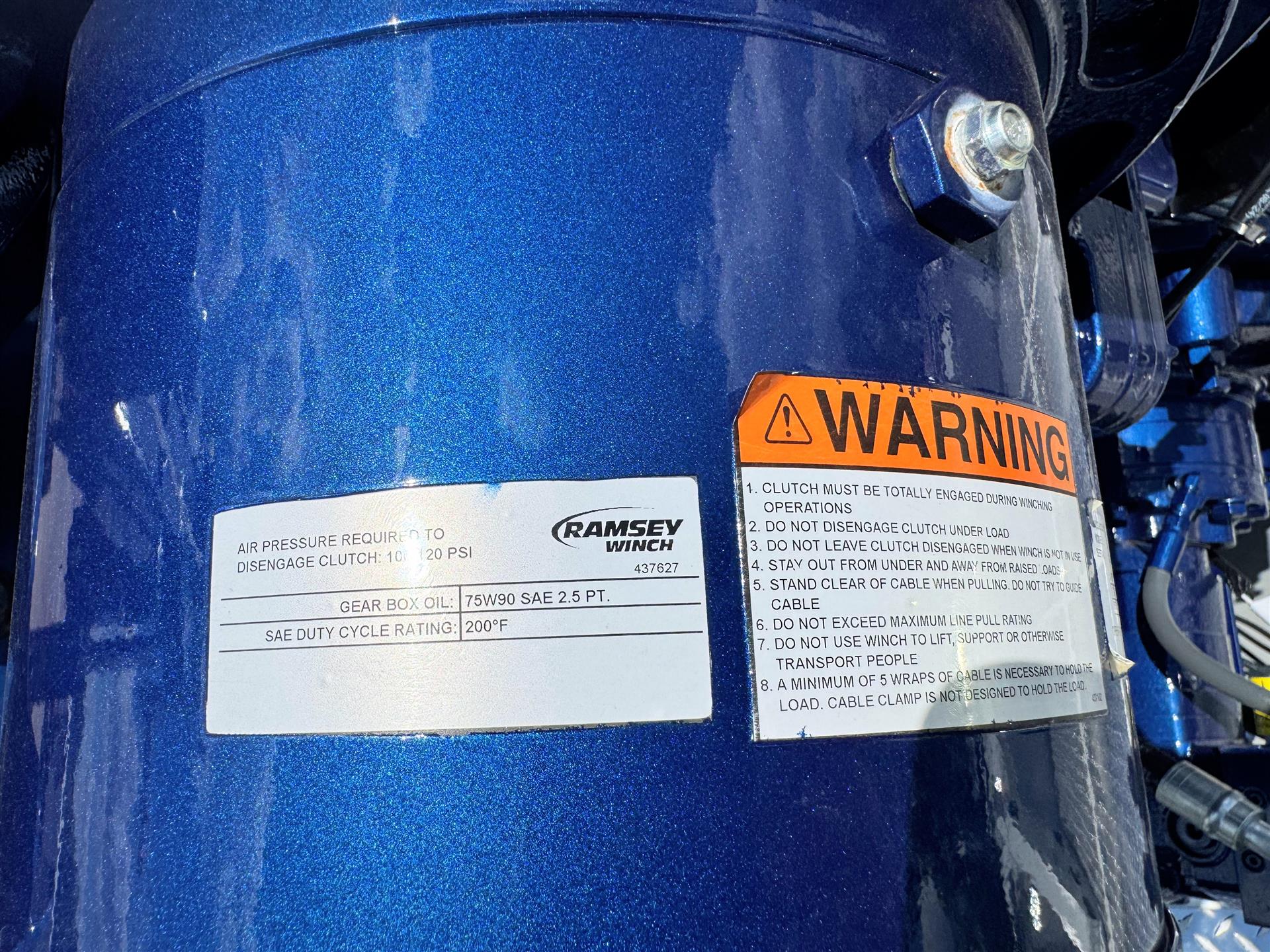

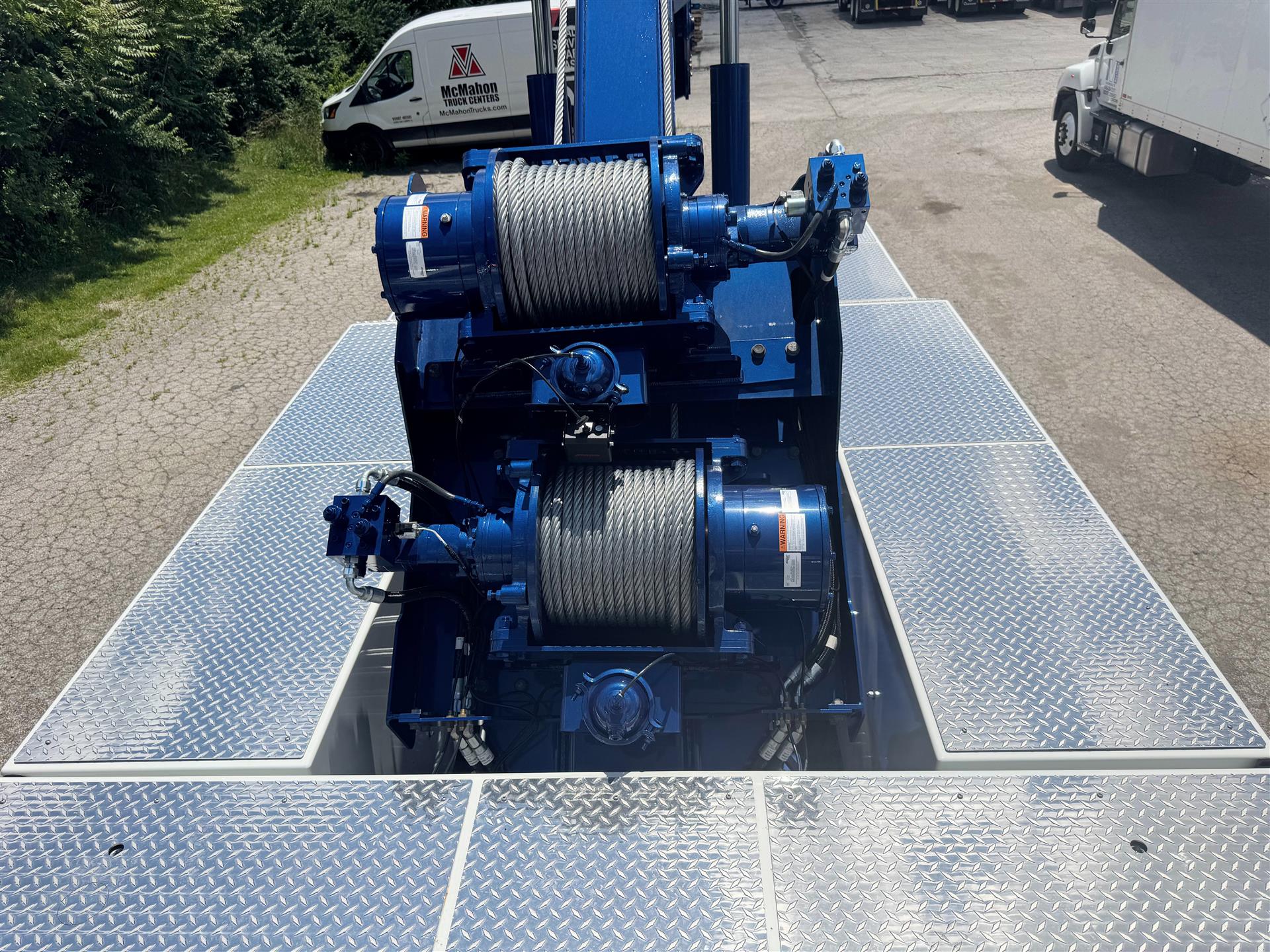

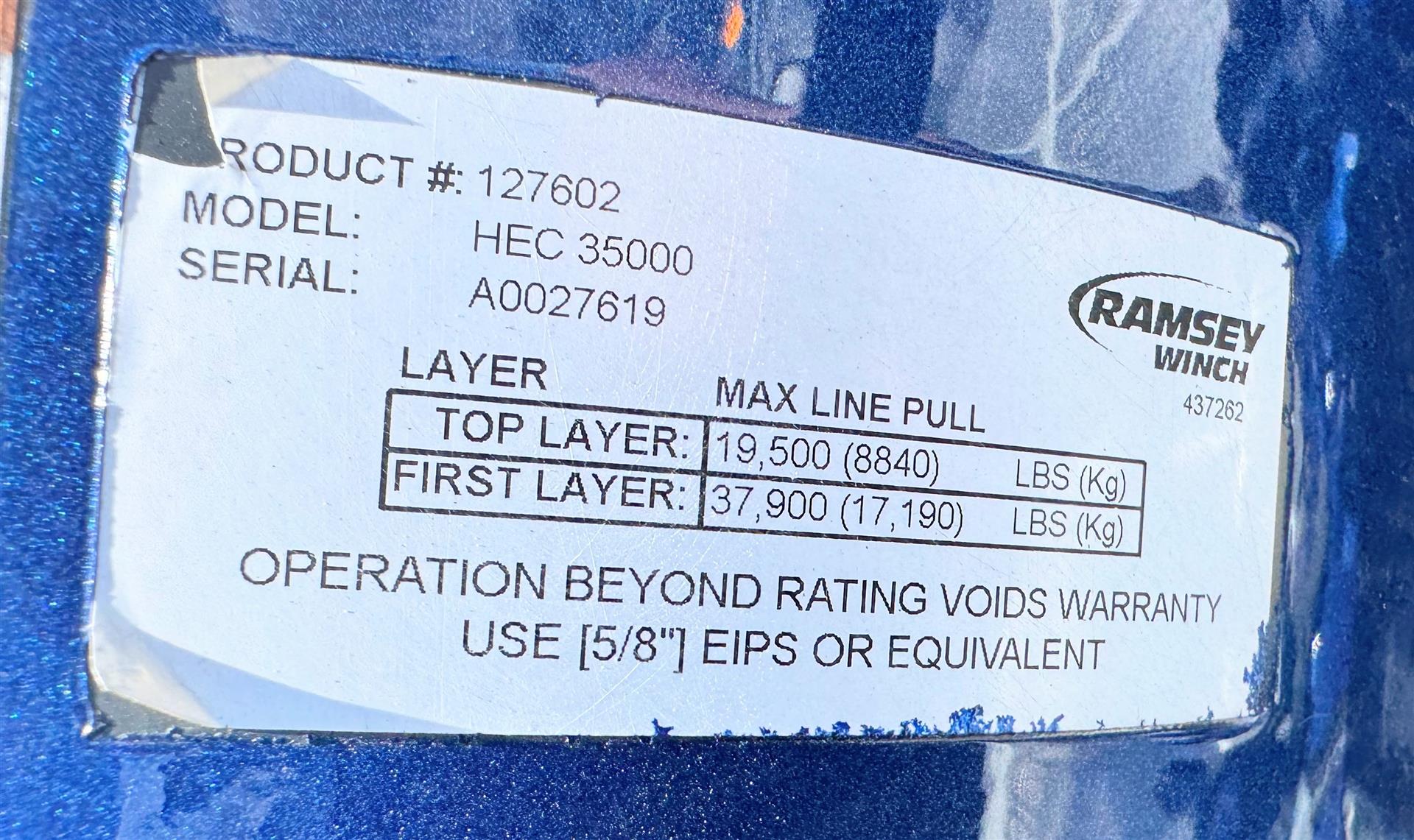

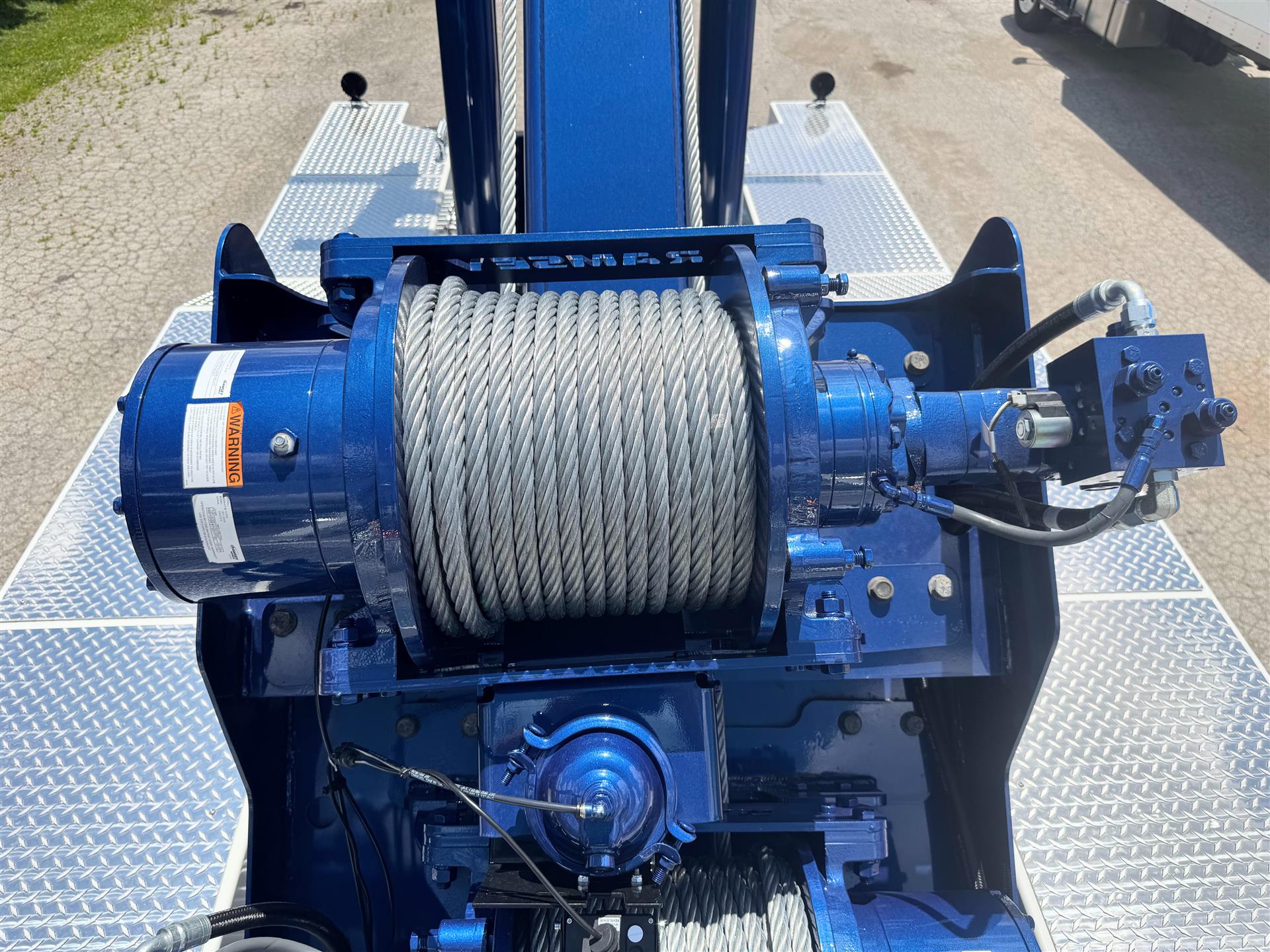

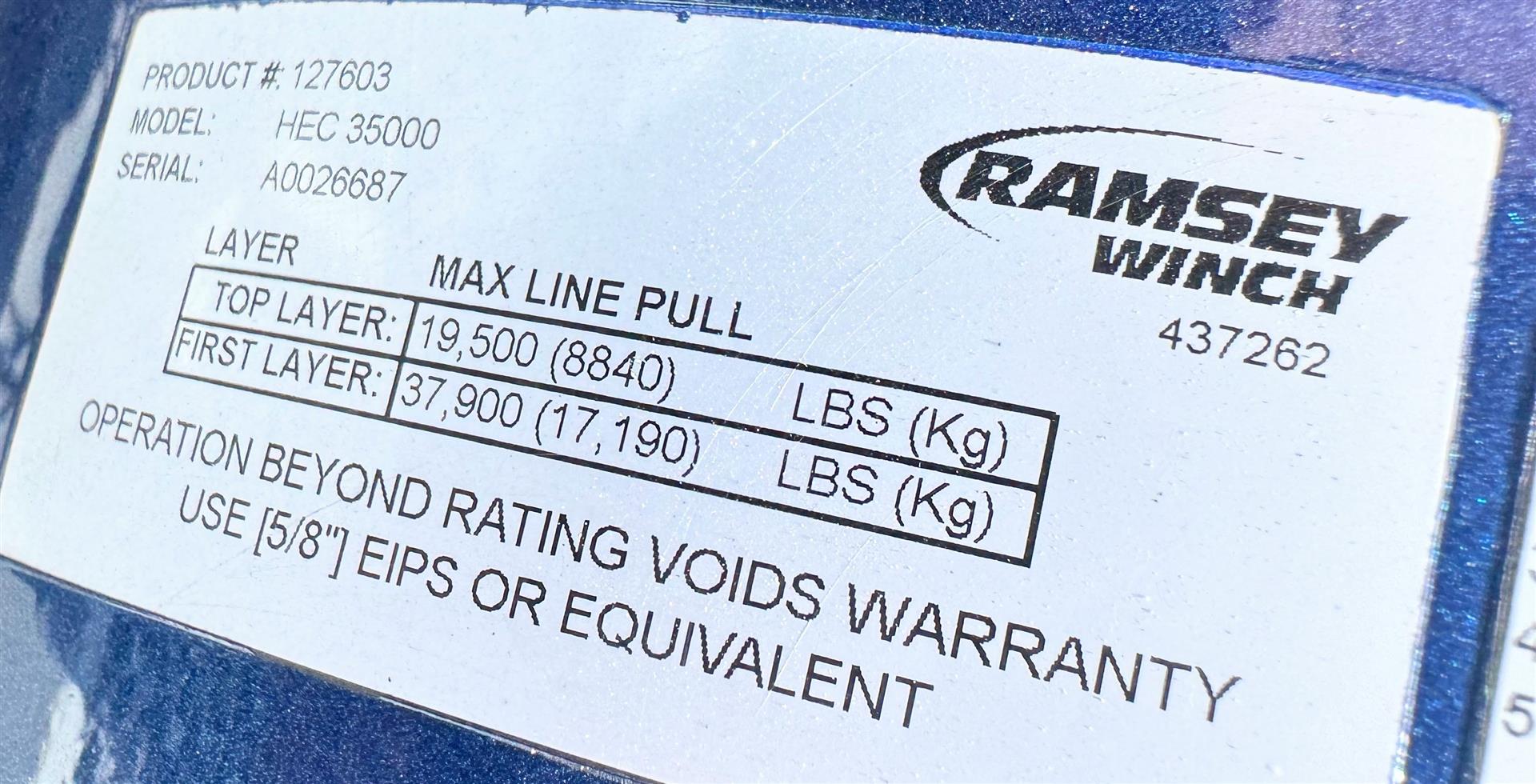

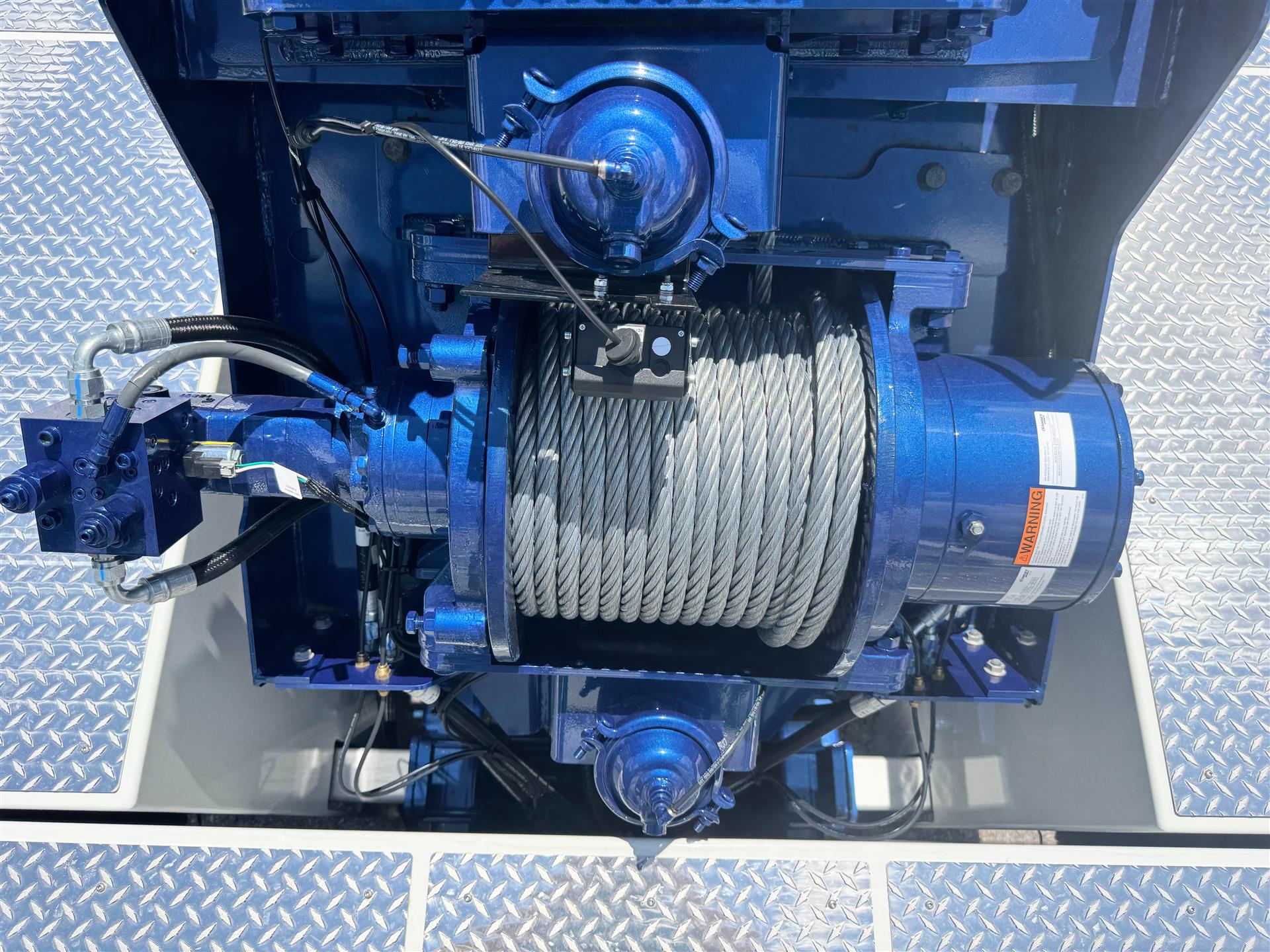

1 Dual Ramsey 35K Planetary Winches for 5/8" Wire Rope

Boom Winch Wire Rope:
1 Wire Rope 3/4" Diameter x 200' EIPS Galvanized with Swivel Hooks (Qty 2)

Boom Winch Options:
1 Winch Camera Kit (Rear Winch Mounted w/PS Control Station Monitor)
1 Optional Driver Side Monitor Add-on (Must Include Above Winch Camera Kit)

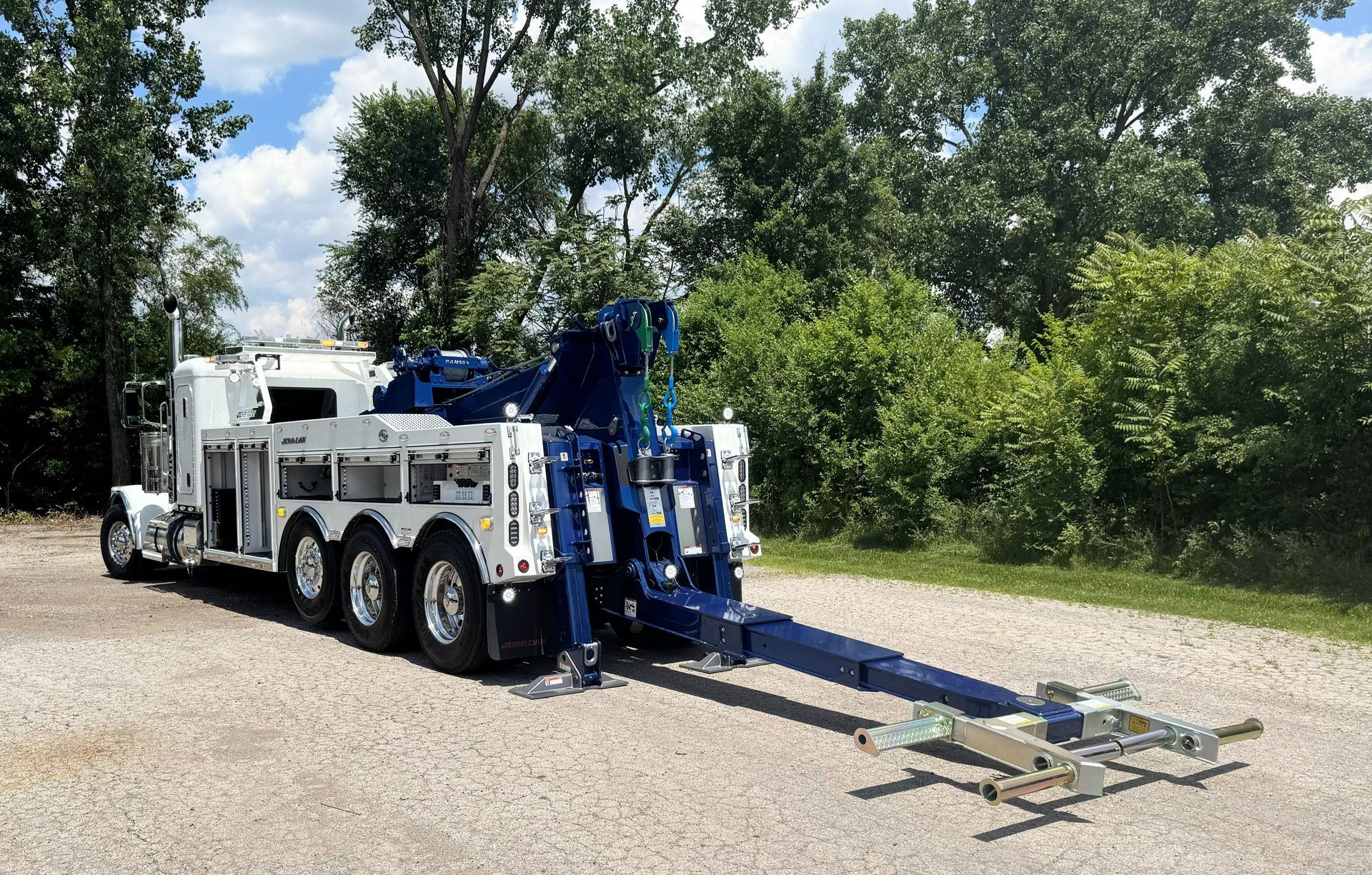

Underlift Options:

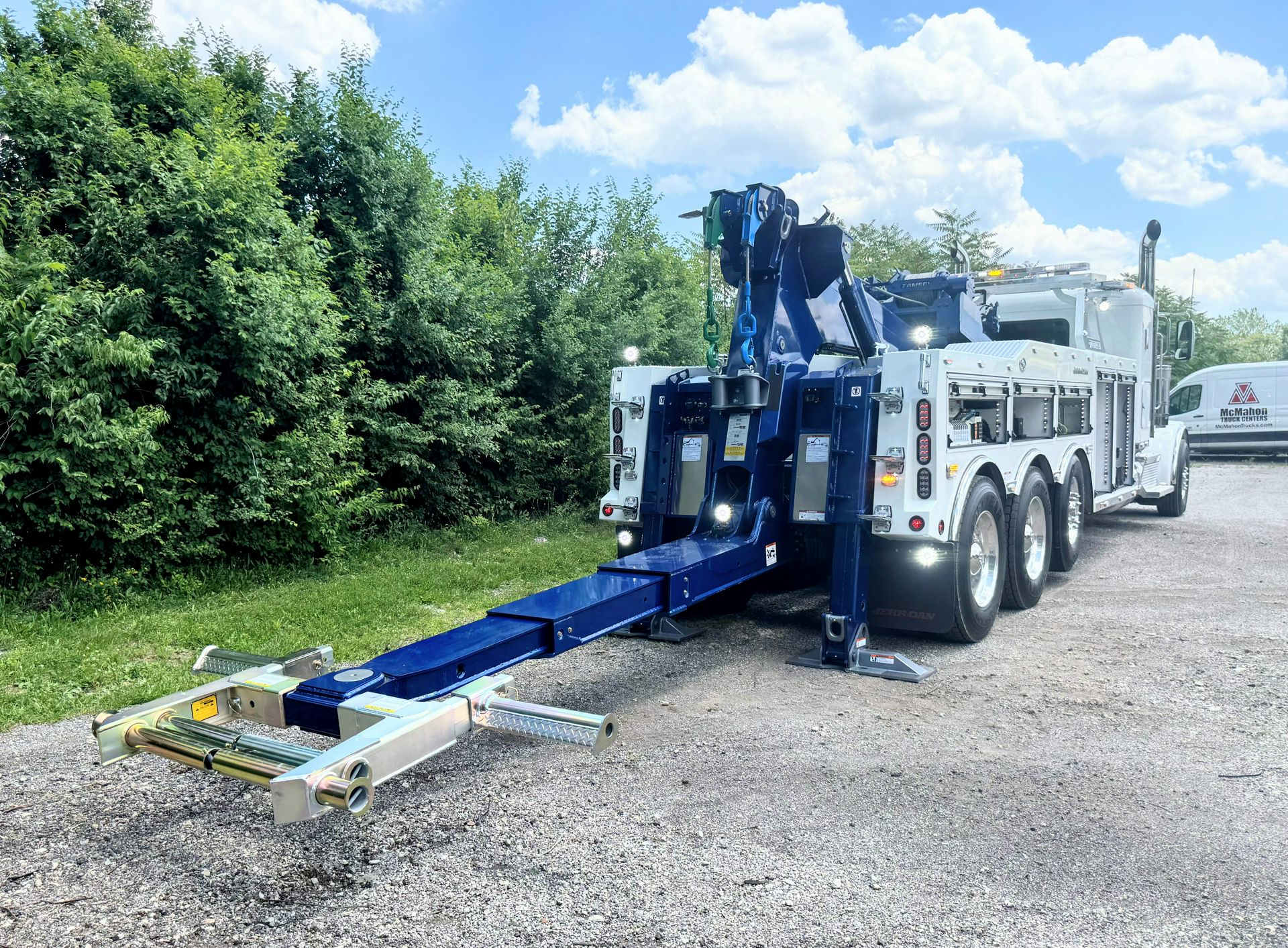

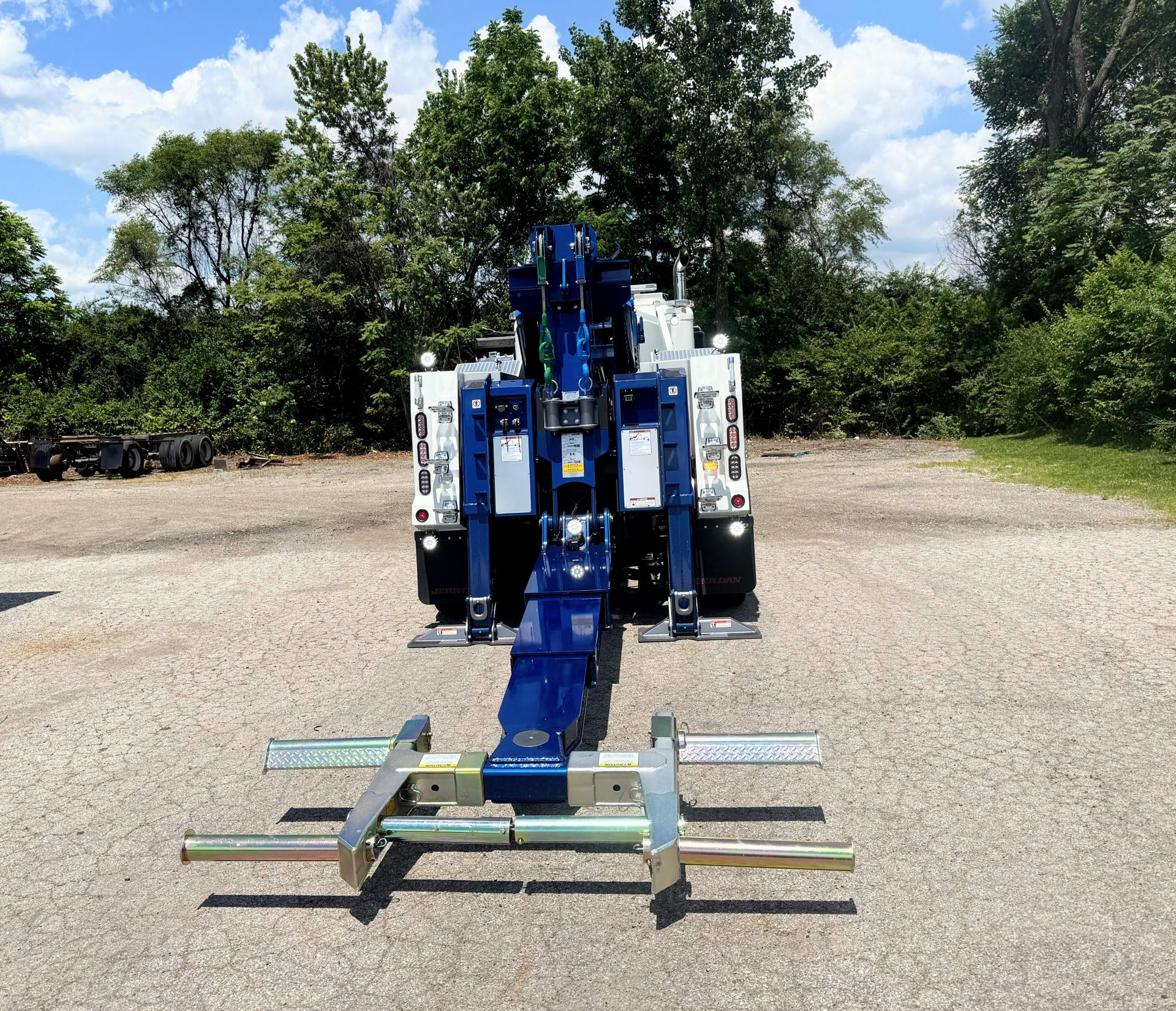

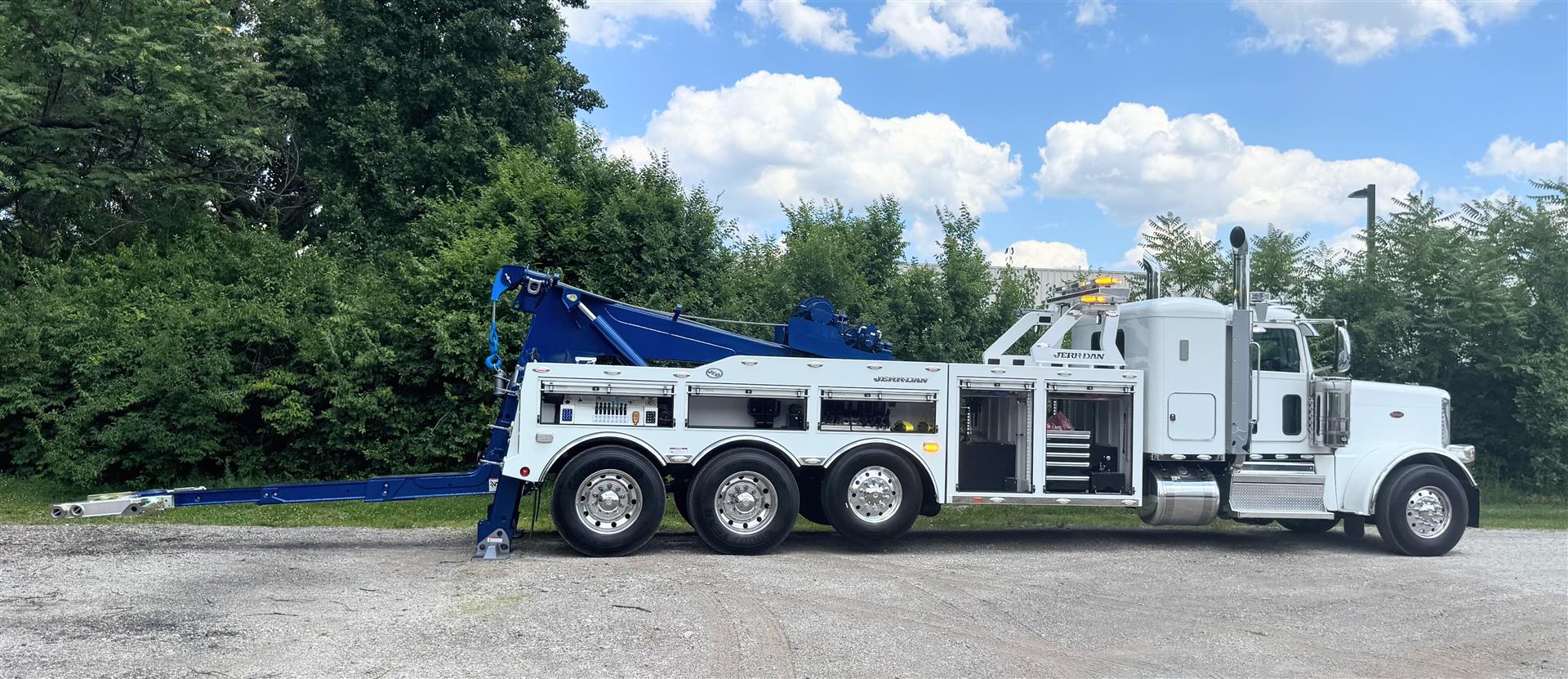

1 350X 35,000 lb Retracted 16,000 lb Ext for JD35INT (147" Reach)
1 Centerline of Rear Axle to Tailboard 66"
1 Rated Capacity - Retracted 35,000 lb
1 Rated Capacity - Extended 16,000 lbs.
1 Reach Past Tailboard- Retracted with Forks at Ground Level 69"
1 Reach Past Tailboard- Extended with Forks at Ground Level 147"
1 Postive Tilt 20°
1 Negative Tilt 10°
1 Tow Capacity 80,000 lb

Diamond Plate Dress-up Kits Options:
1 Diamond Plate with Marker Lights (Pair) for Front of any Tunnel Toolbox:
1 Rubrail Dress-Up Kit 25/35T
1 Pylon Dress Up Kit Polished

Battery Option:
1 Battery Relocation Hardware - None

Back-up Alarm Options:
1 Back Up Alarm

Lighting Options:

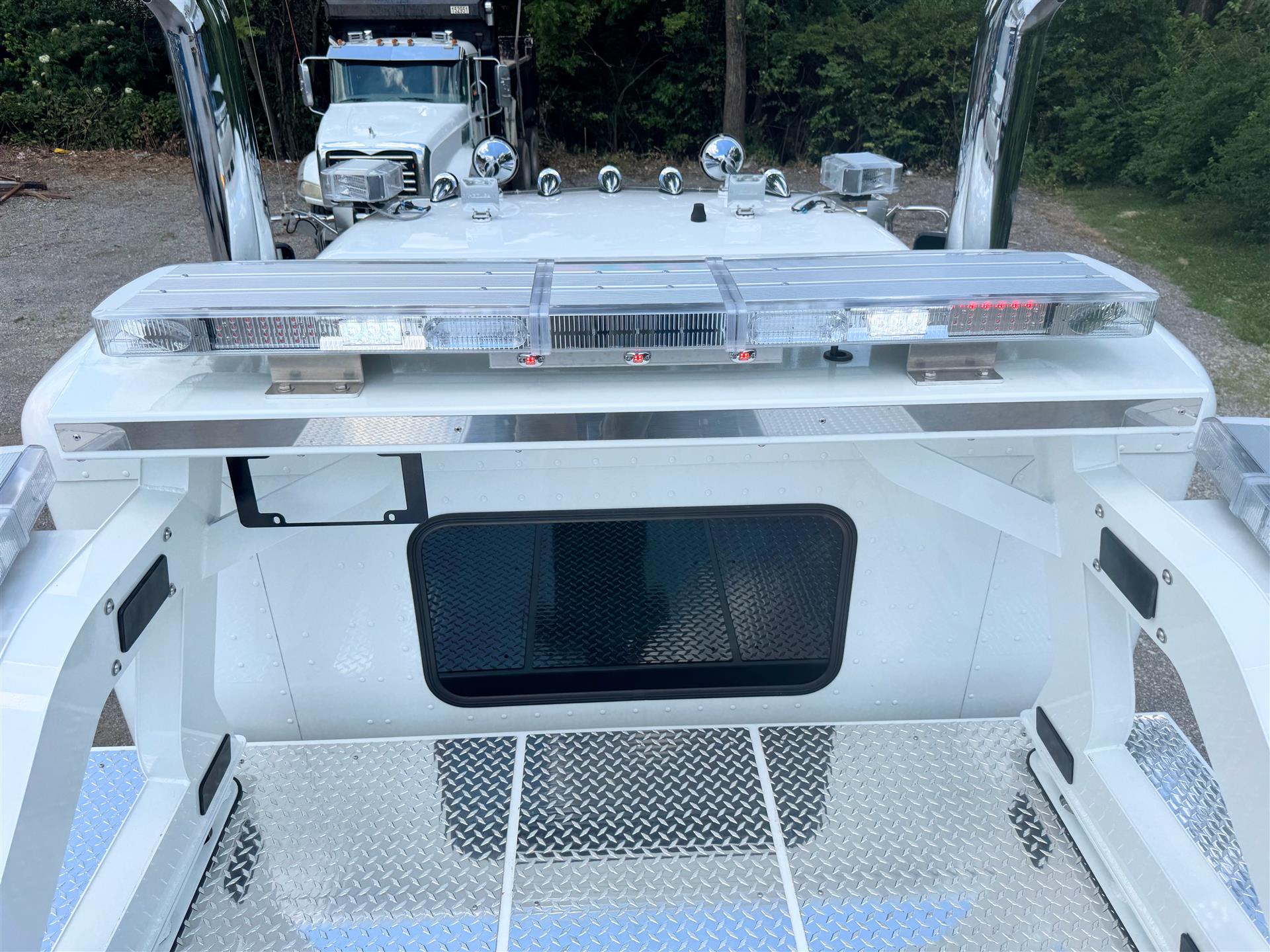

1 Whelen Amber LED 60" Light Bar
1 Lower Hook-up Lights LED (Pair)1Upper Hook-up Lights LED (Pair)
1 Upper Work Lights LED (Pair) (Requires Pylon Wing Lights/Brackets)
1 Underlift Light LED
1 Strobe Light Kit (1-Pair Front/1-Pair Rear/1-Pair Left Body Side/1-Pair Right Body Side)

In-Cab Floor Mounted Switch Panel Options:
1 Switch Panel for Lighting & Underlift - Generic Chassis

Light Pylon Options:
1 22" Whelen LED Amber Wing Lights with Mounting Brackets (Pair)

Wireless Controls:
1 12-Function Proportional Wireless Remote
1 6-Function Non-Proportional Wireless Remote

Driver Side Hydraulic Gauges


Paint Options: Full Paint Below
1 Subframe/Boom/Under Lift - Viper Blue
1 Body - White

Jerr-Dan Boom Logo Options:
1 White Jerr-Dan Logo

Power Take-off (PTO) Options:

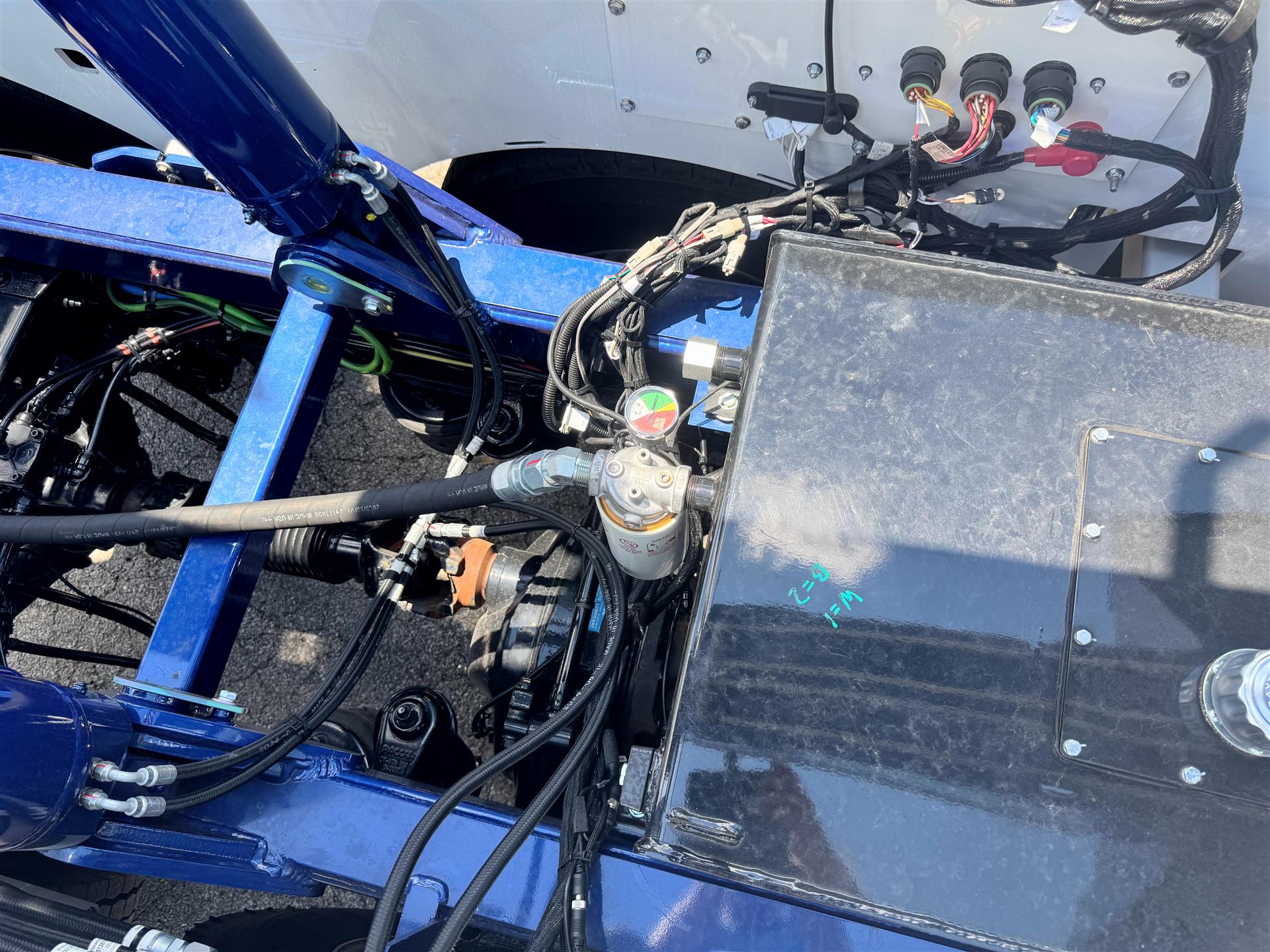

1 PTO Air SH8S-U6807-A3PX
1 25 GPM Pump

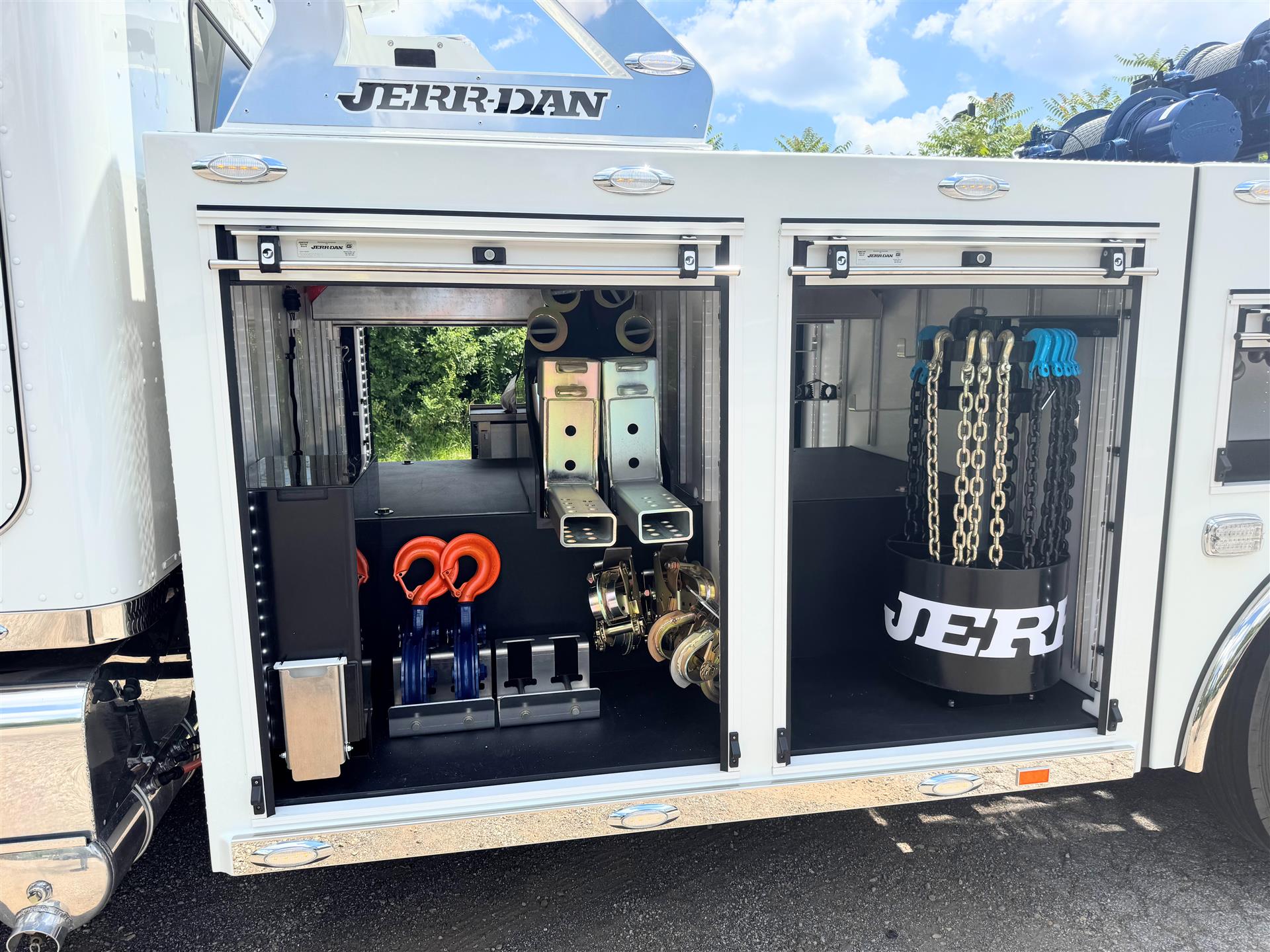

JFB Storage Solution Options:
1 Gold Series Storage with 25K Bus Arm Towing Package

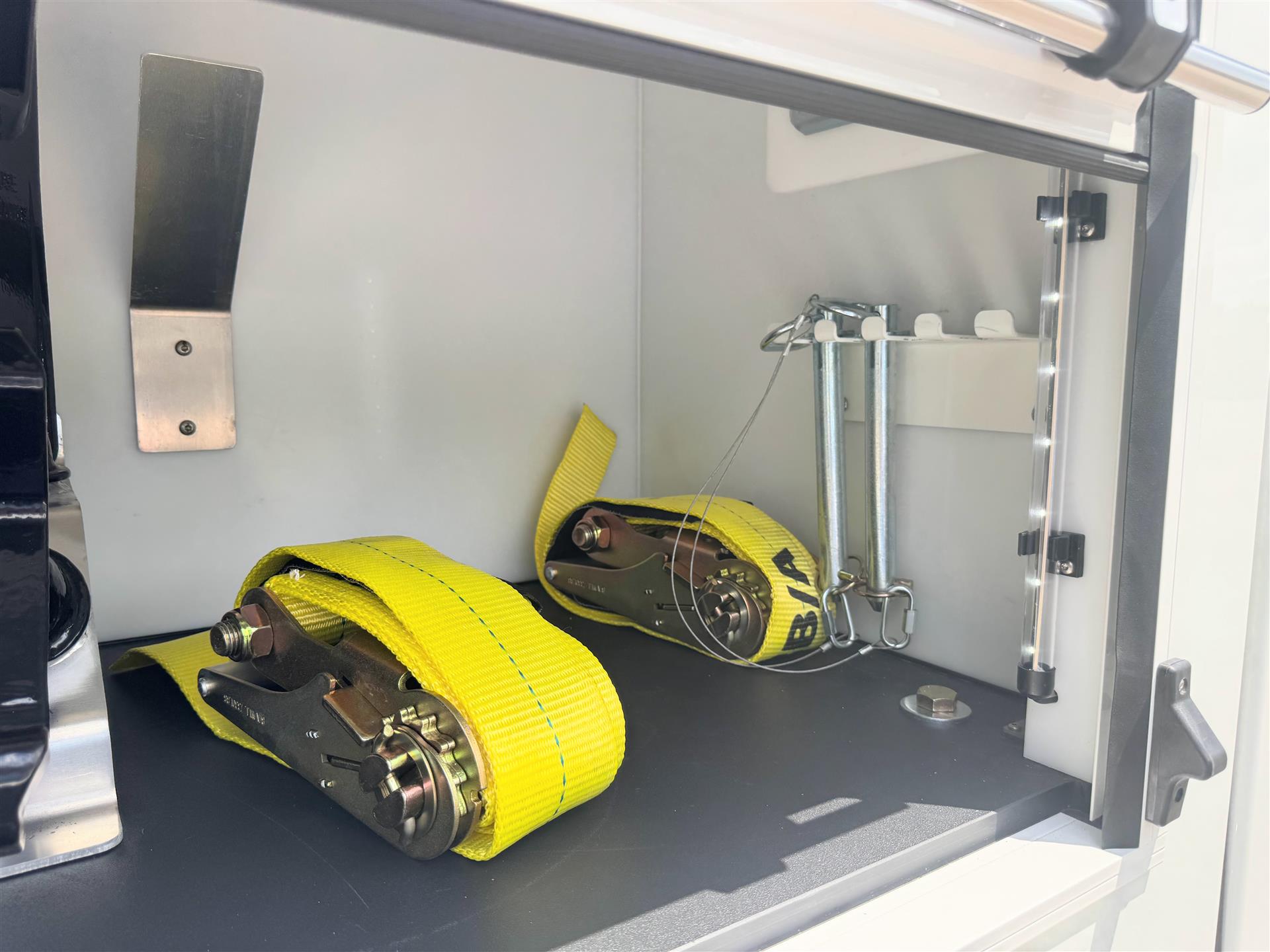

    1  '-25,000 Tire Lift/Bus Arms w/Bus Arm and Ratchet Strap Storage Solution
         1  Long Straps 2"
          1 Short Straps 2"
          1 Long Straps 3"
          1 (4) 2' and (4) 3" Ratchets
    1 '-5th Wheel Storage Solution
         1 5th Wheel Plate
         1 Pintle 2" Ball

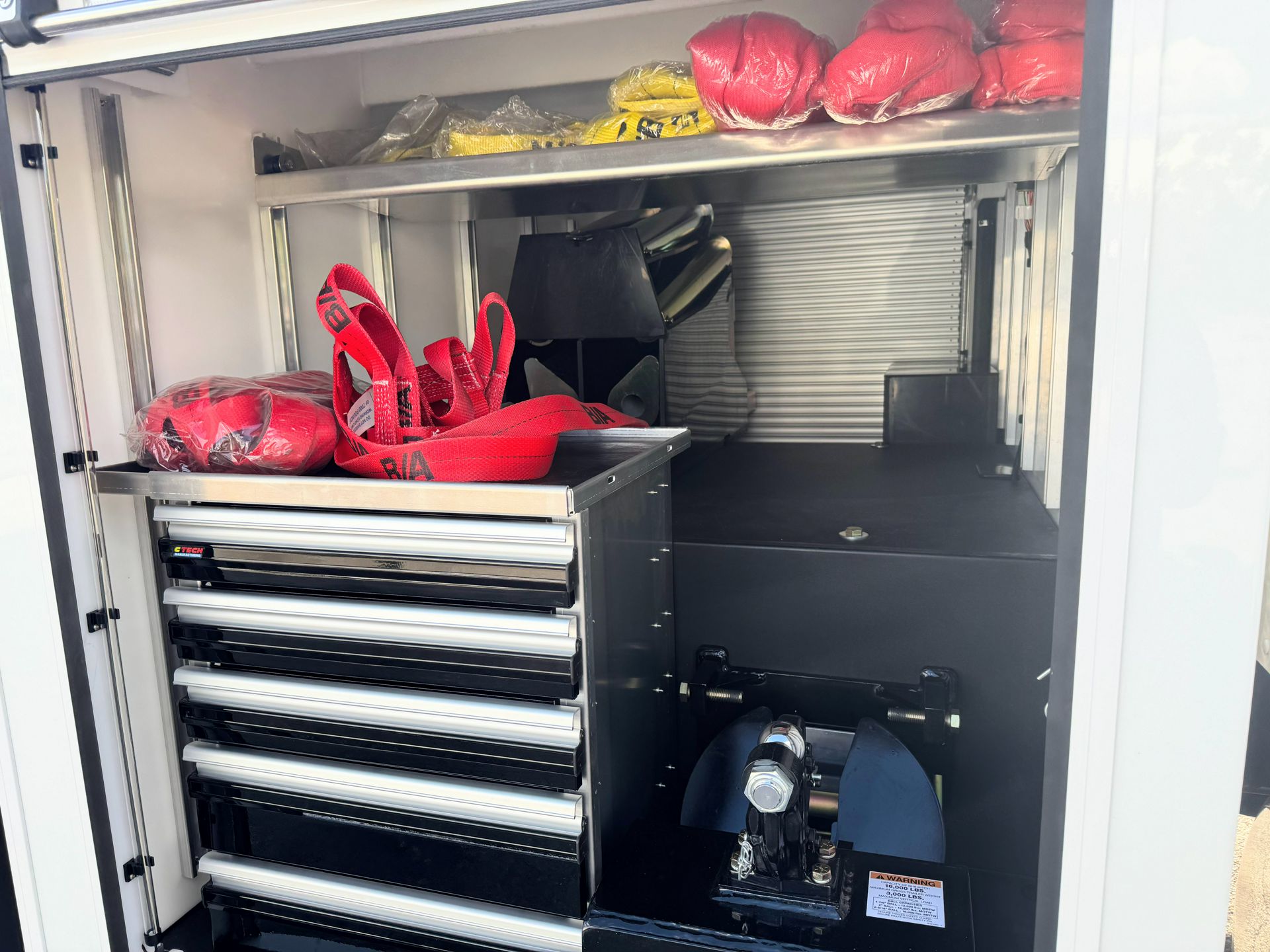

    1 Tool Drawer (Base Body)
       C-Tech Tool Box 21" x 20" x 26.5"
         (3) 4" Drawers
         (2) 6" Drawers
         6"  Telescoping Top Shelf

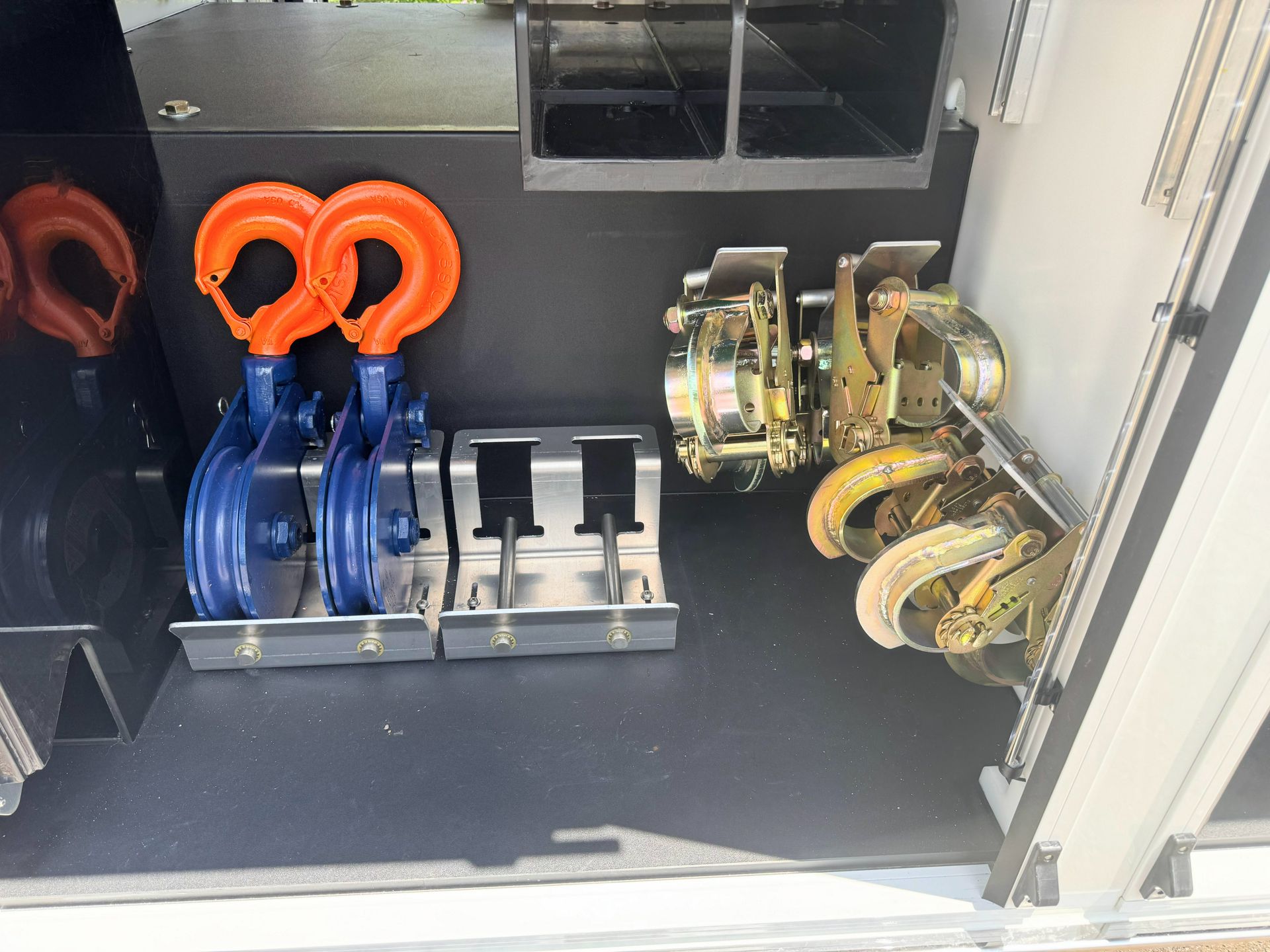

    1 Snatch Block Storage (4 Blocks)
    1 Bottle Jack Storage
    1 Chain Binder Storage Tunnel T-Track
    1 Chain Rack Sidewall

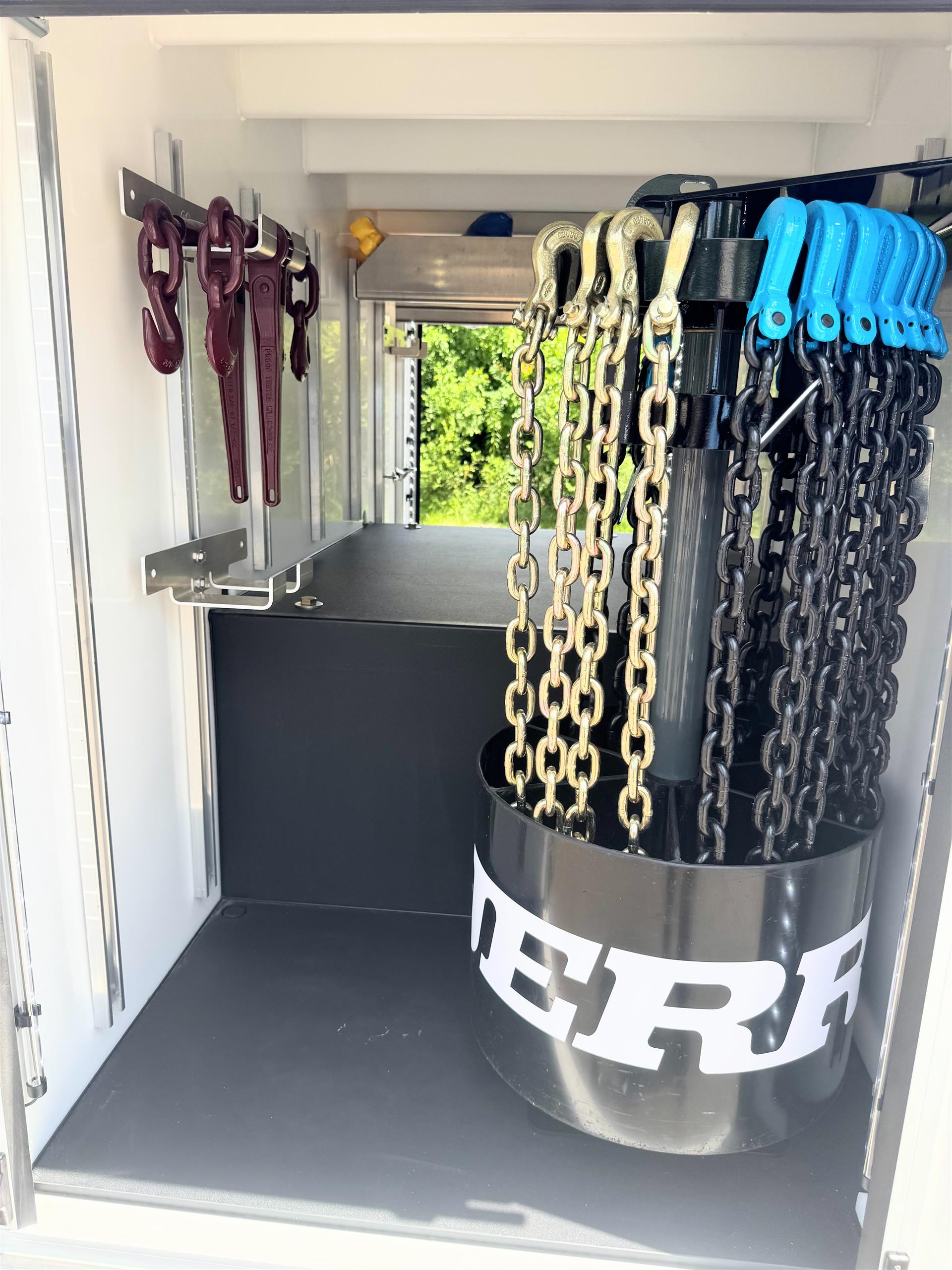

    1 Chain Rack Rotary Carousel
    1 Ladder Storage (Wall Mount)

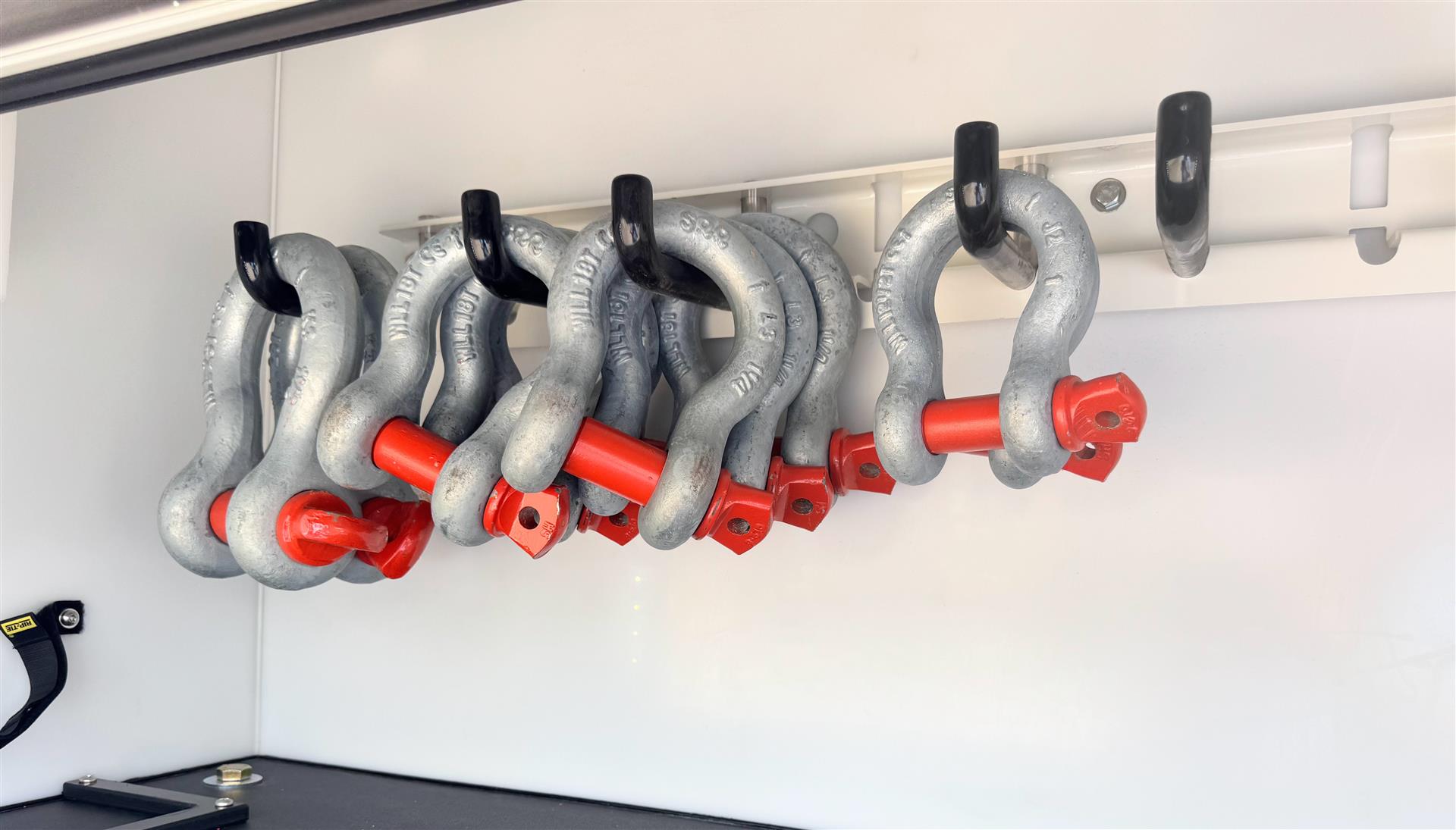

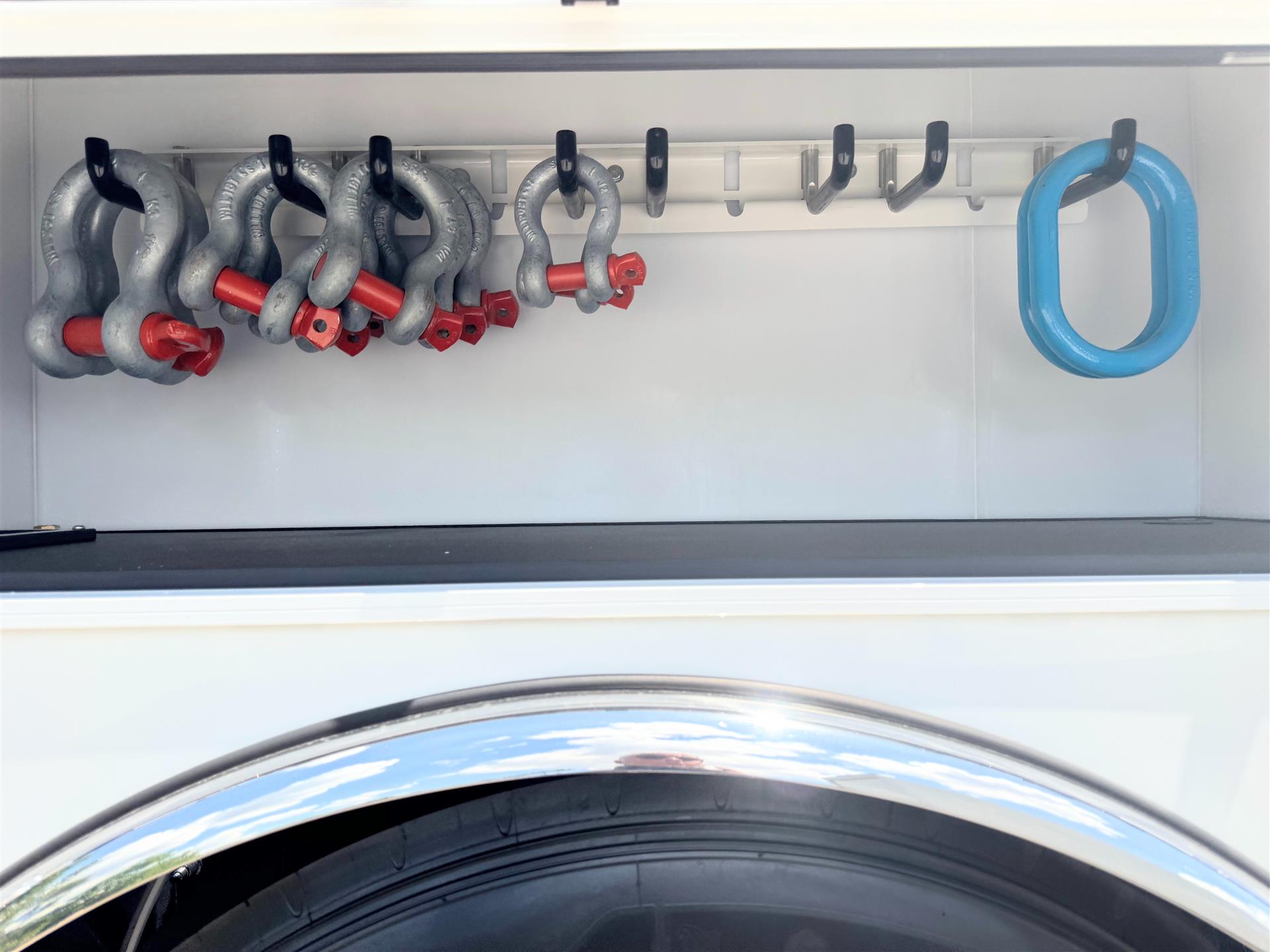

    1 Shackle Rack (1 Row)
    1 Spill Kit Storage
    1 Stay Dry Silo
    1 Storage Shovel/Broom/Grizzly Bar
    1 Tow Light Storage
    1 Stationary Upper Shelf

Miscellaneous Options/Accessories:
1 Snatch Block Kit (35 Ton)
     (2) McKissick Model 418 8" 8t Snatch Blocks
1 Shackle Kit Level 2
     (2) - 12.5T Galv Shackle 1" Pin
     (4) - 18T Galv Shackle 1.25" Pin
     (2) -  25T Galv Shackle 1.5" Pin
     (2) - 7/8" Master Link G100 17,200# WLL
1 Heavy Duty Chain Kit Level 1
     (2) - G70 3/8" x 10'
     (4) - G100 3/8" x 10' 8,800# WLL
     (2) - G100 1/2" x 10' 15,000# WLL
     (2) - 3/8" x 1/2" Ratchet Chain Binder 9.200# WLL

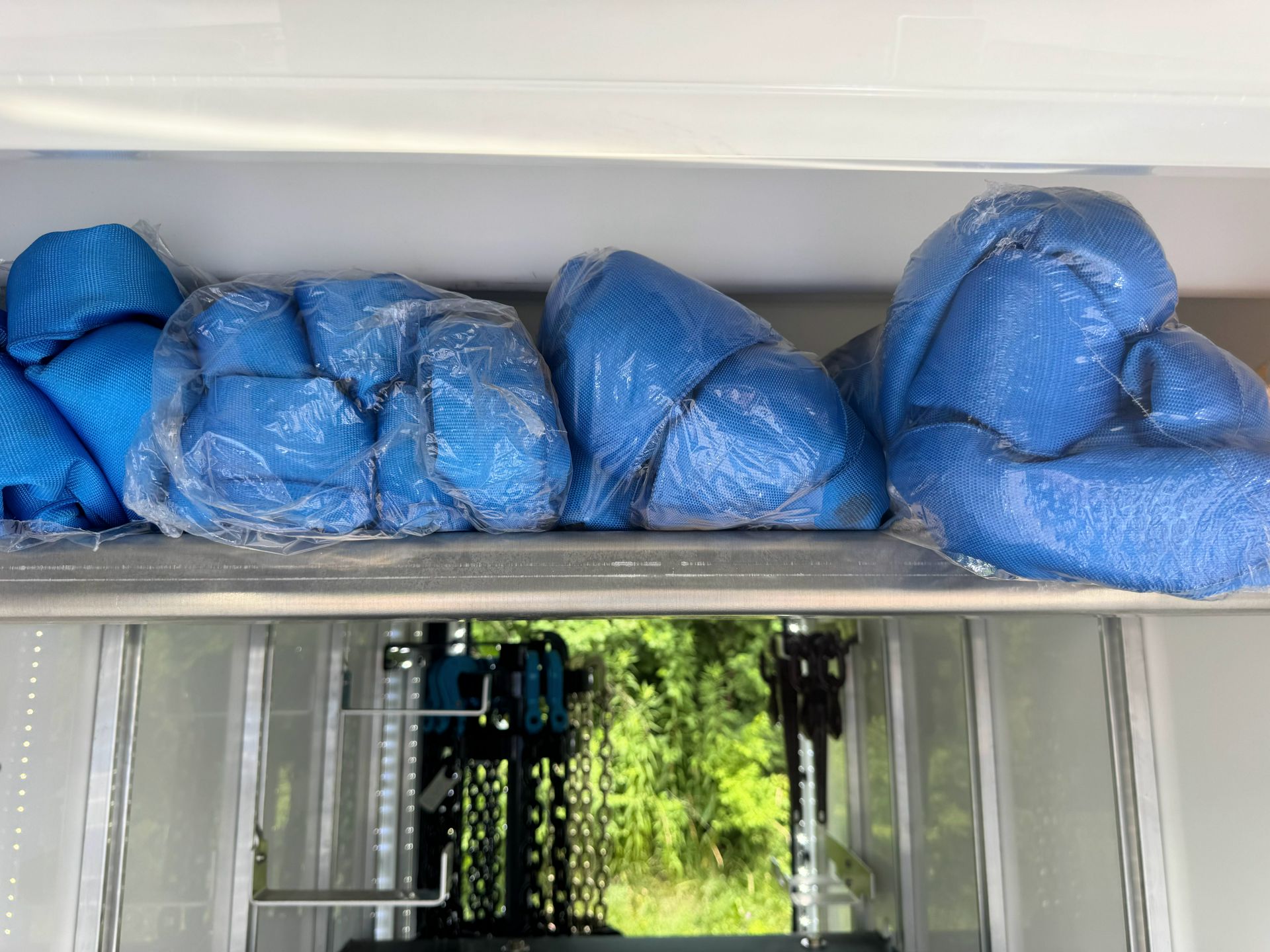

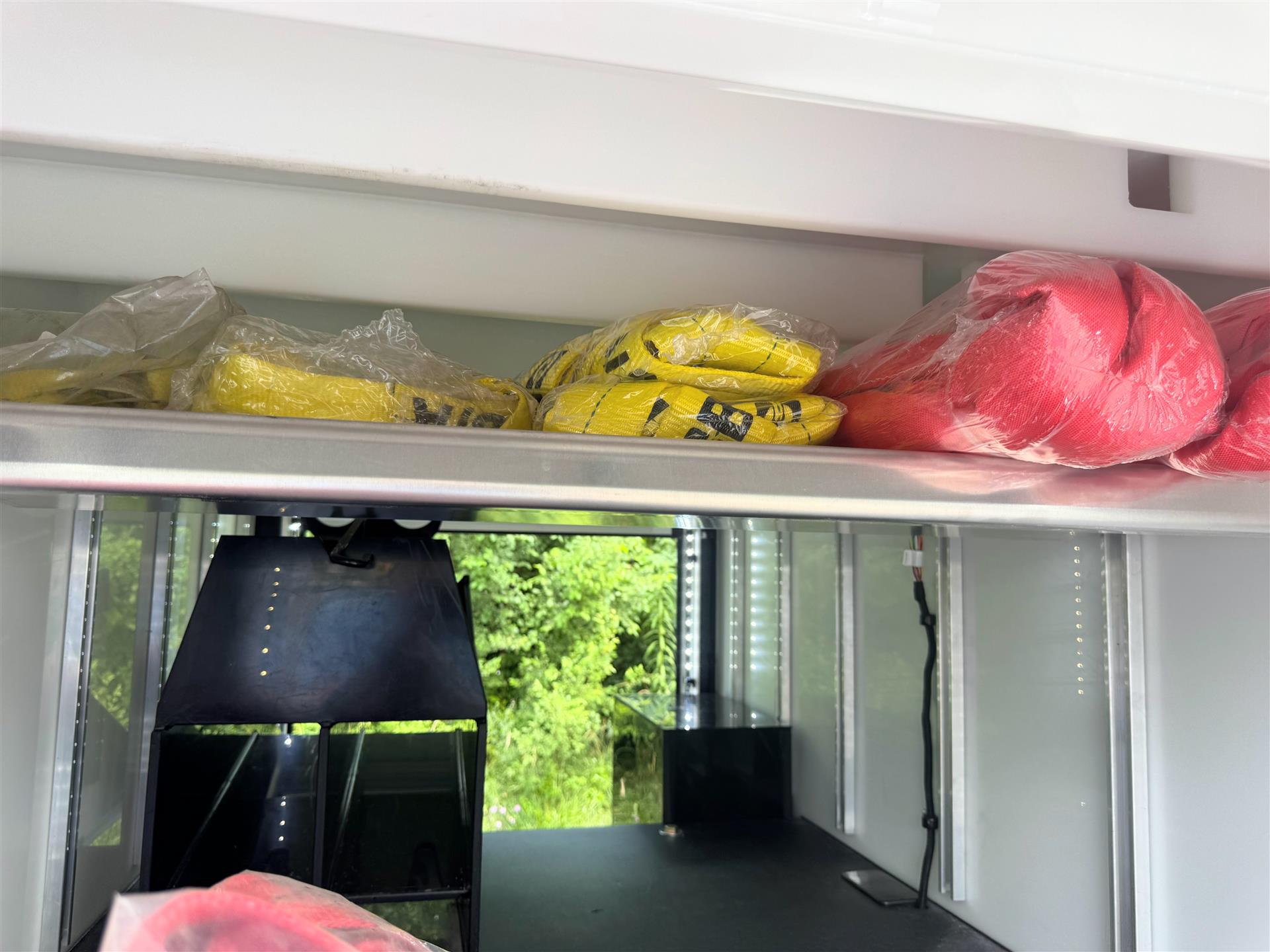

1  Endless Loop Sling Kit Package - Level 2
     (2) 4' Yellow Round Sling 8,400#
     (2) 6' Yellow Round Sling 8,400#
     (2) 8' Red Round Sling 13,200#
     (2) 12' Red Round Sling 13,200#
     (2) 12' Blue Round Sling 21,200#
     (2) 16' Blue Round Sling 21,200#

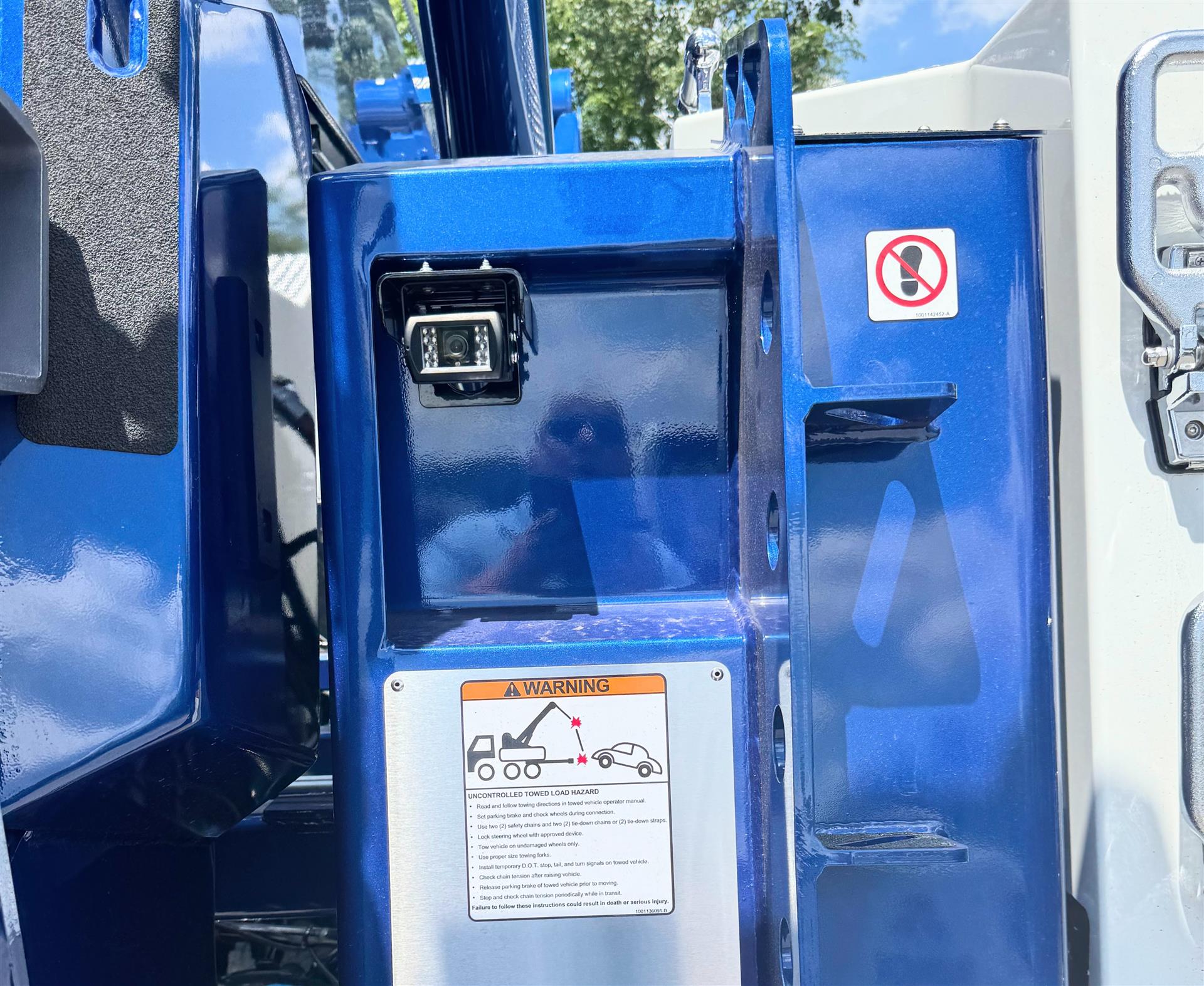

1 PACCAR - Back-up Camera Kit (In-Cab Monitor w/Camera Mtd on Rear Spade Housing)
