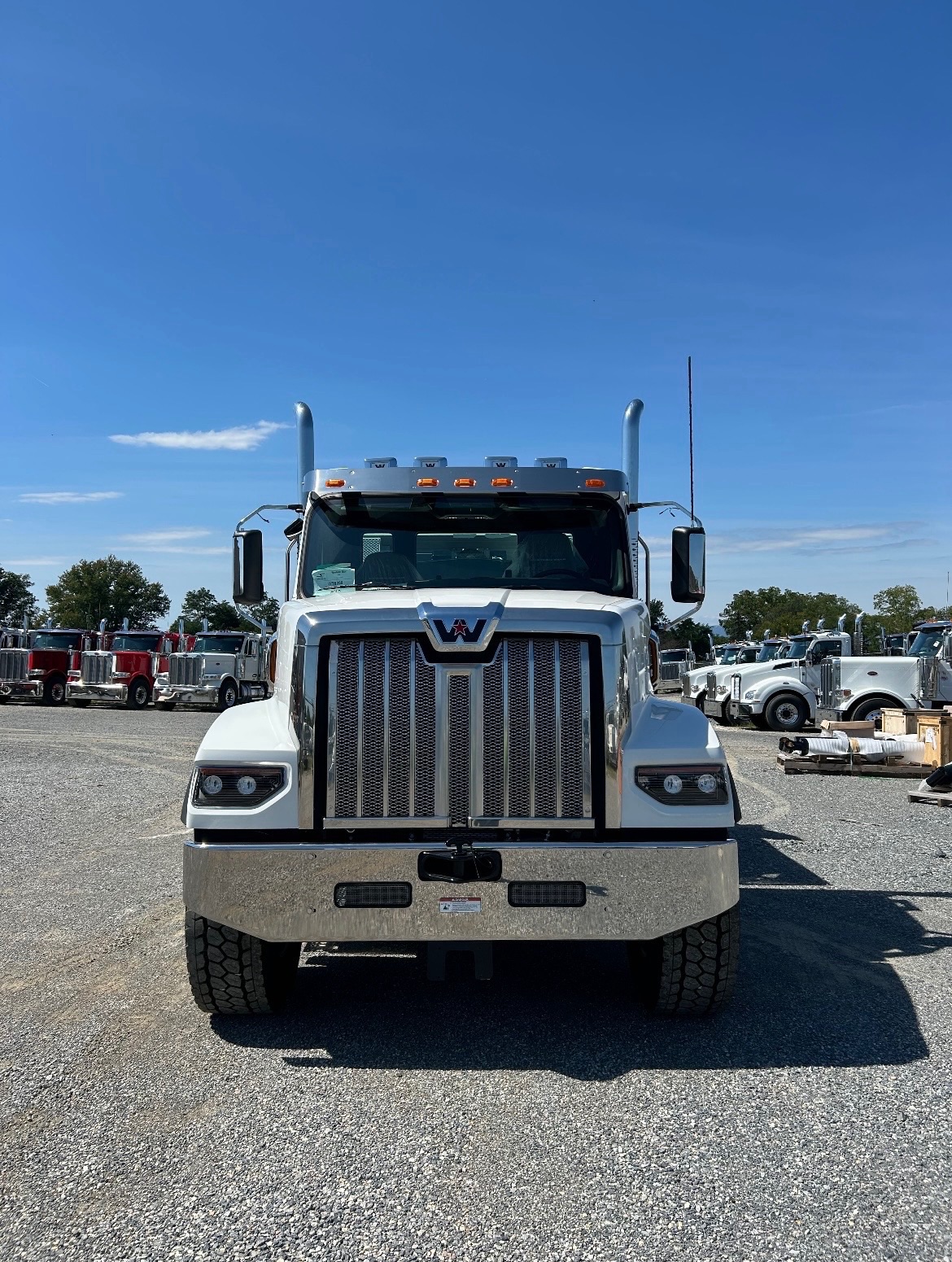

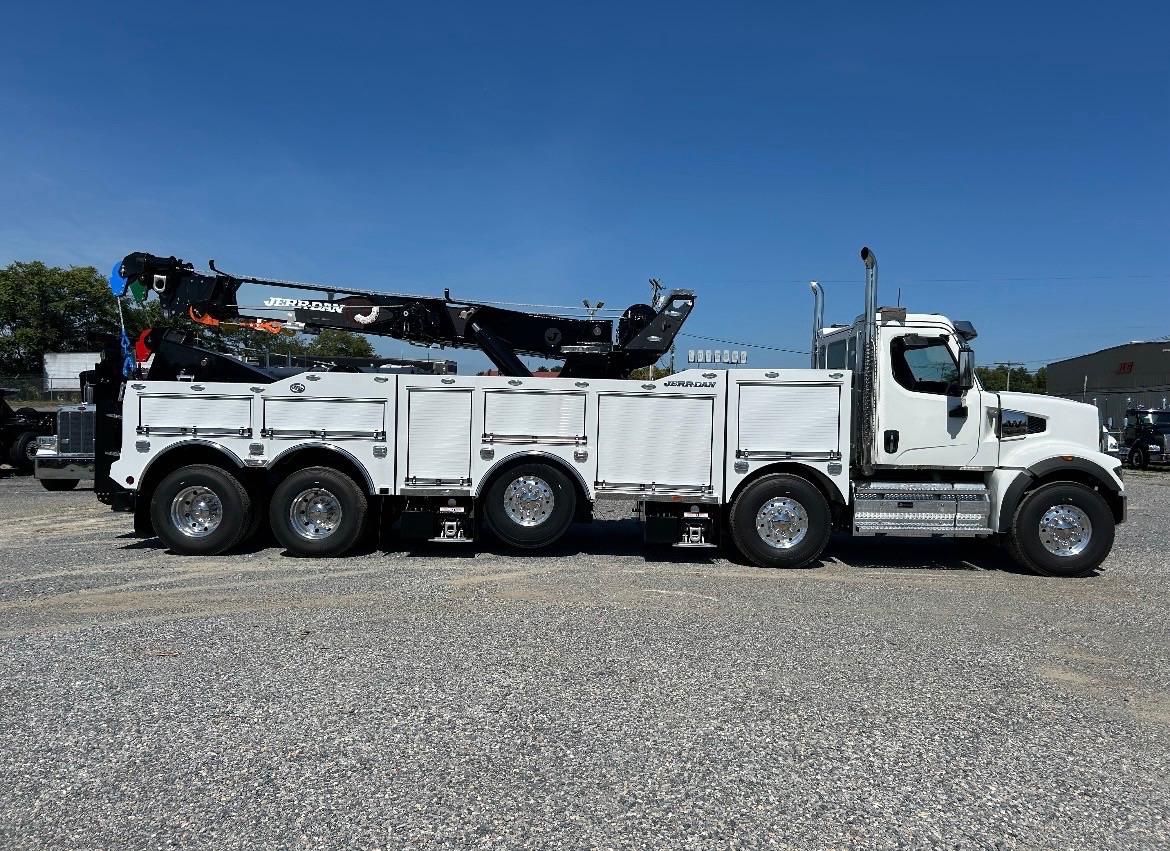

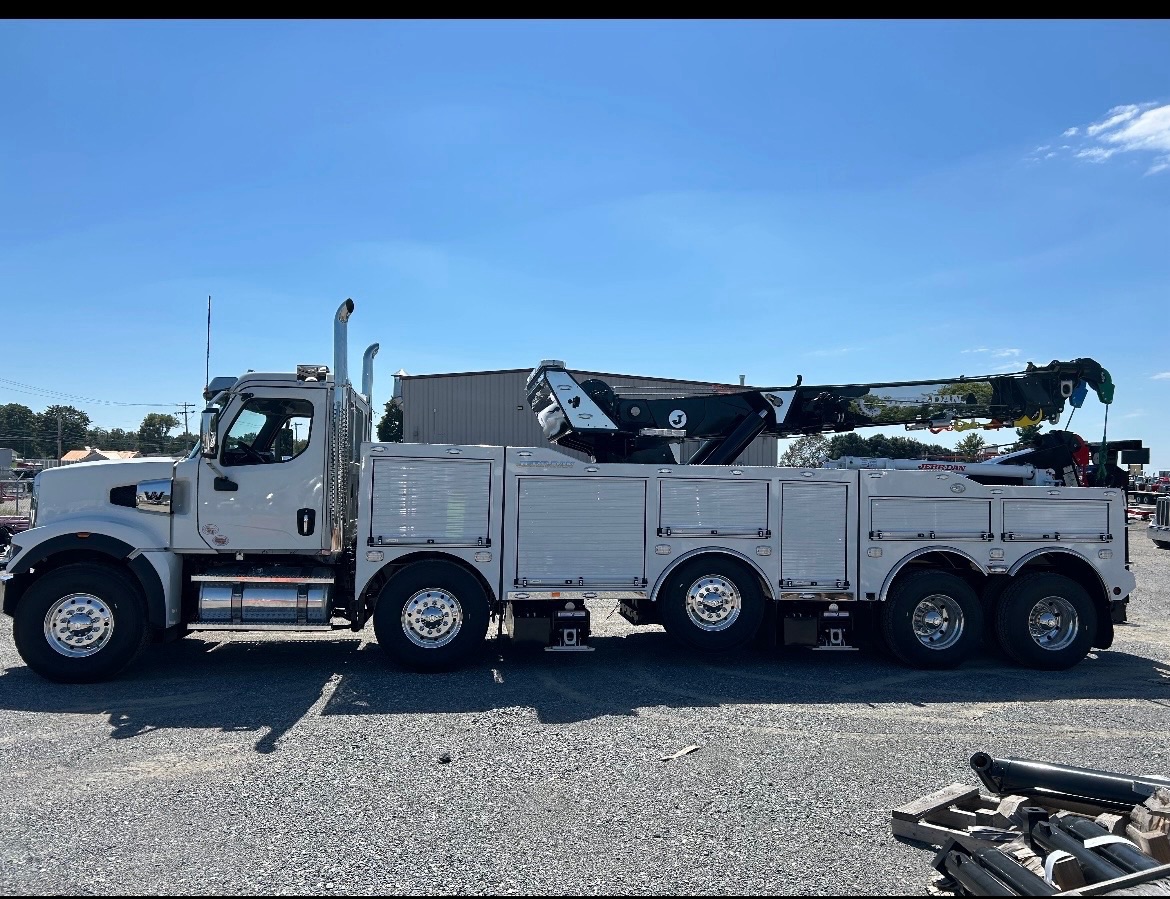

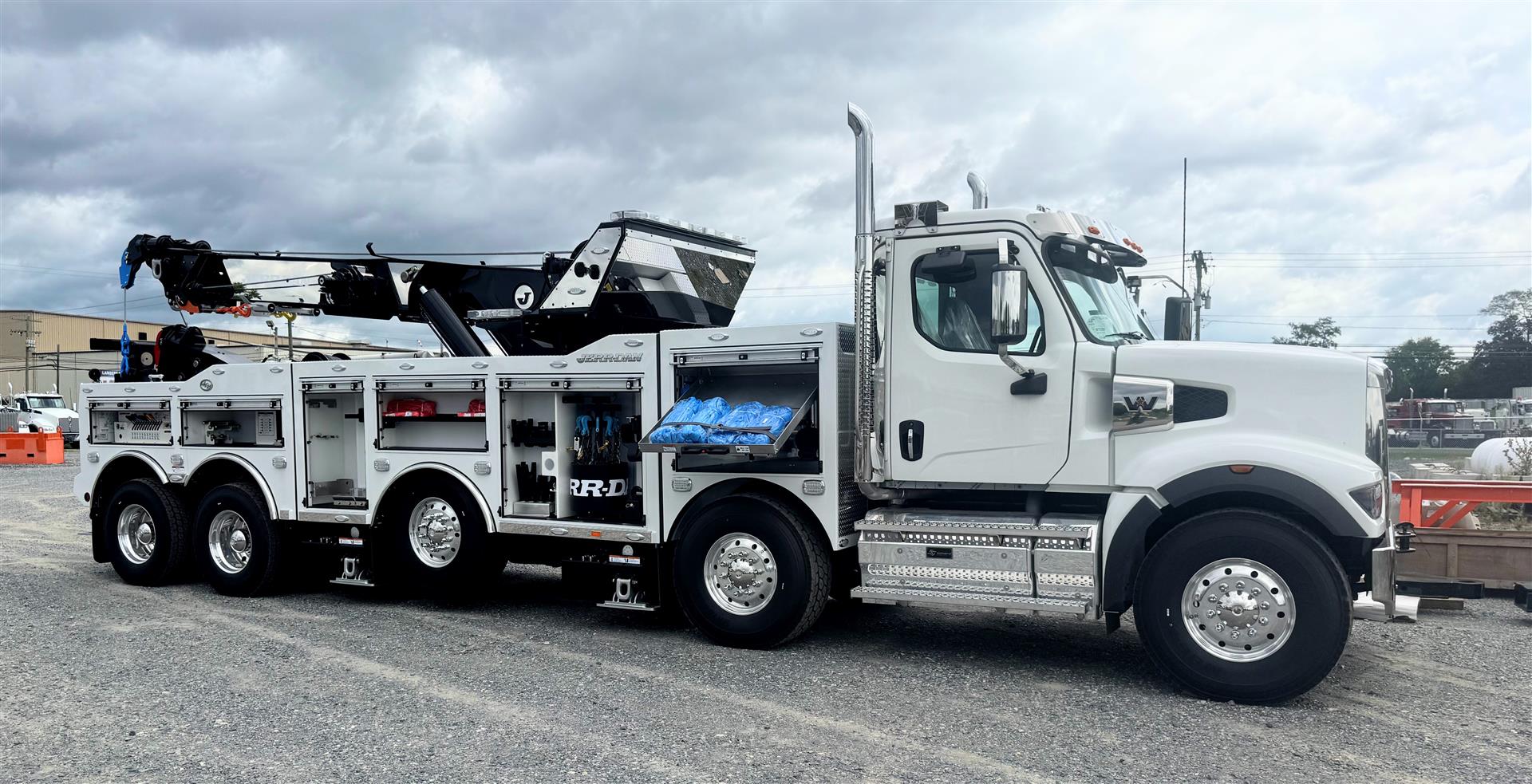

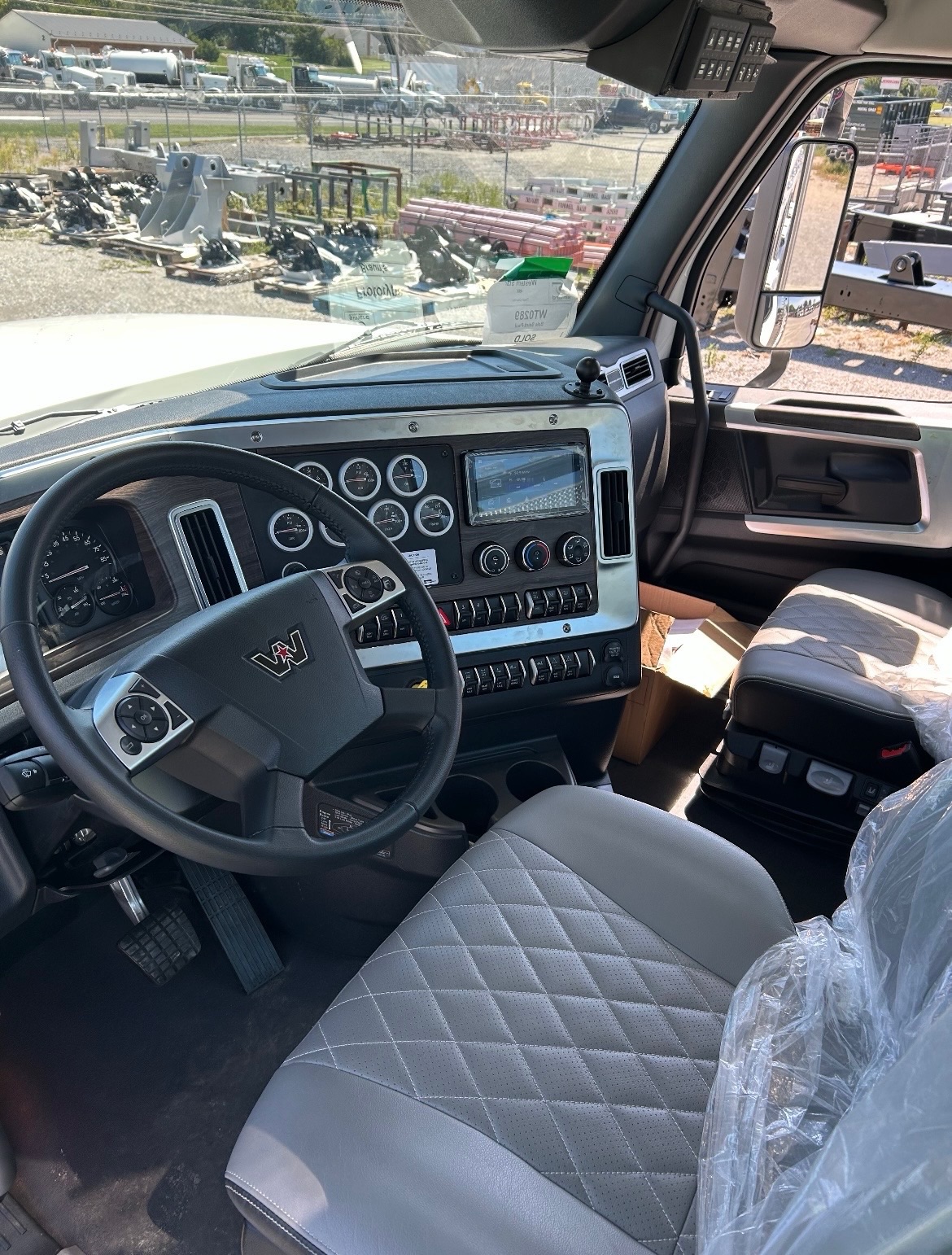

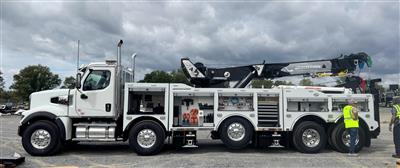

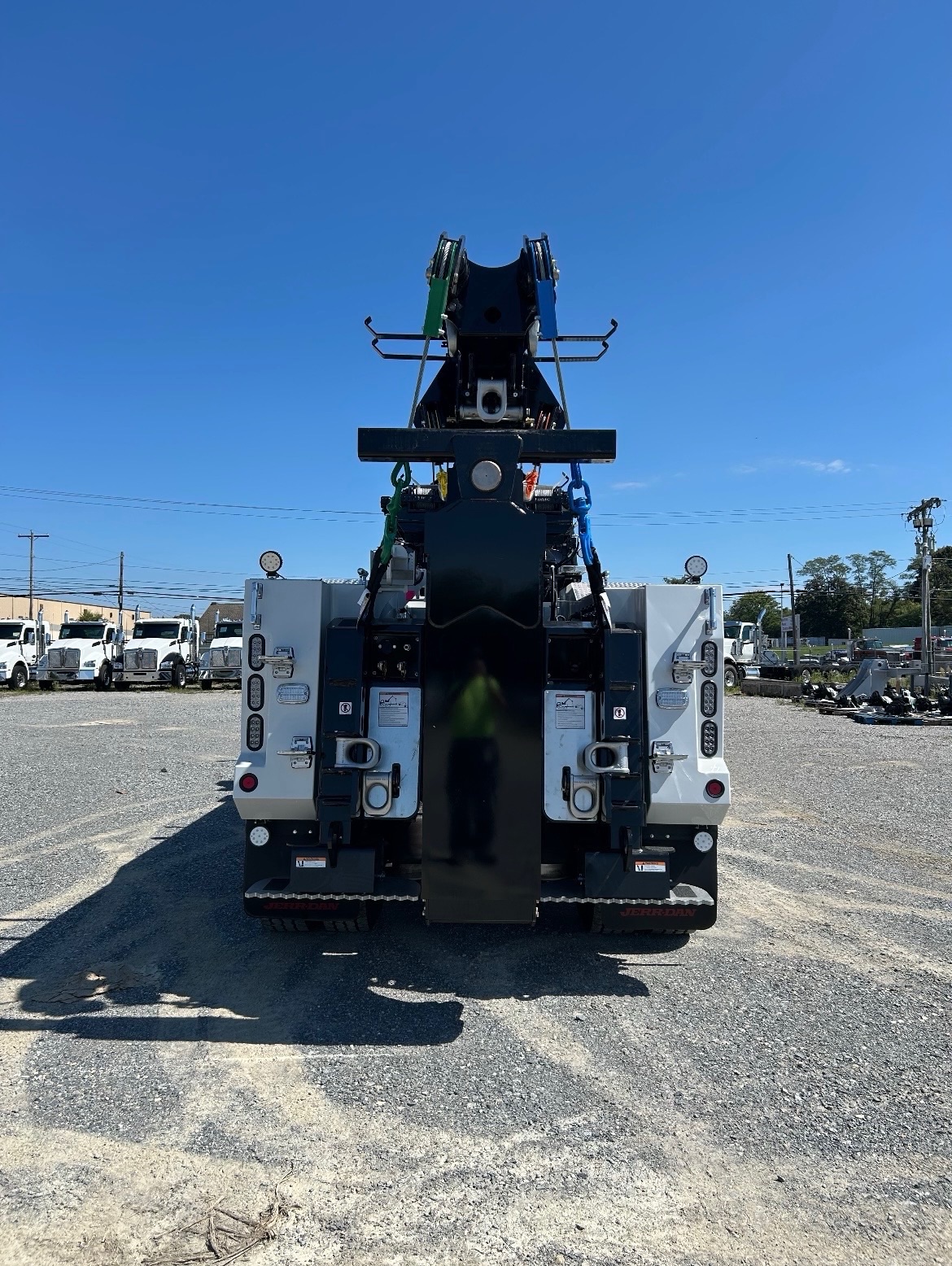

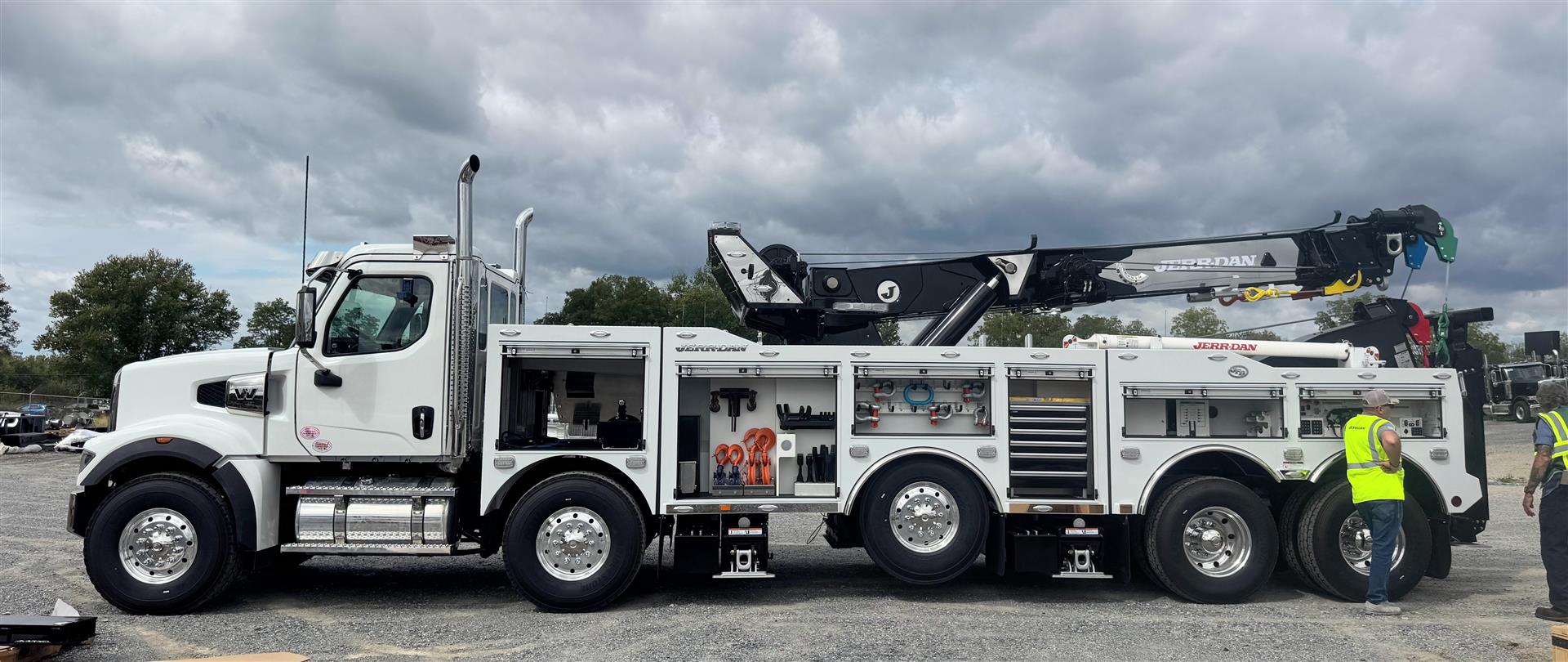

Unit Photos

The strength and stability of the JD50/60 (HDR 1000) comes from the industry leading scissor style outriggers and unique torsion frame design.

Equipped with a 3 Stage 50 Ton High Strength Hydraulic Boom featuring:  Serial:  0230013312

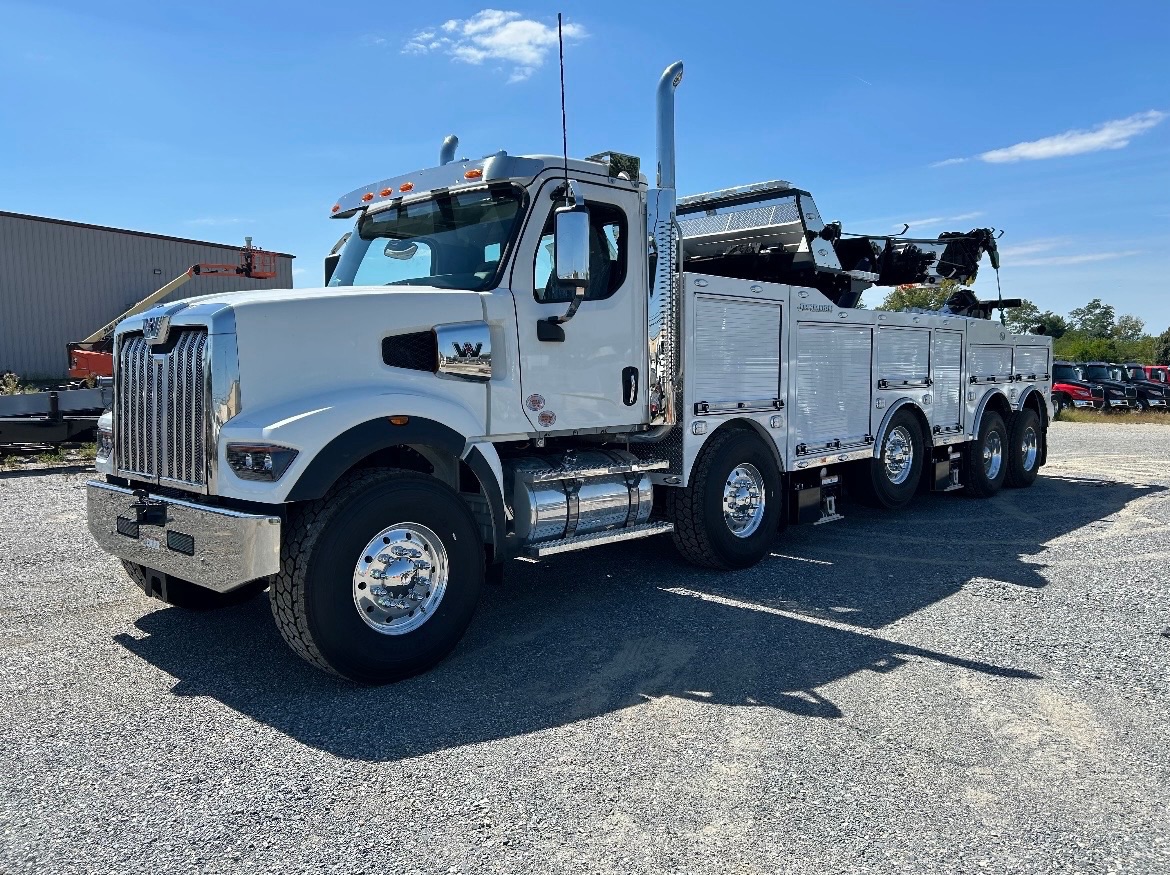

Picture is for visual imaging not actual unit.

• Wireless Proportional Remote for Boom and Winches w/ cord and extra battery & charger
• Max Boom extension 41’ 5”
• Max working height 42’ 8” (Ground to Hook)
• Boom angle indicators
• 360º Continuous Boom rotation

Max Lifting Capacity:

Boom Angle           Retracted             Extended
60º                          120,000 lb.            35,500 lb.
30º                          100,000 lb.            20,000 lb.
0º                              57,600 lb.            17,000 lb.

Equipped with Five (5) Winches:

(2) 50,000lb. Ramsey® 2 Speed Main Winches w/ 3/4” x 250’ Cable  EEIPS
(1) 50,000lb. Ramsey® 2 Speed Underlift Drag Winch w/ 3/4” x 250’ Drag Cable EEIPS
(2) 20,000lb. Ramsey® 2 Speed AUX Winches w/ 9/16” x 135’ Cable EEIPS

500LP Underlift:

• 50,000lb. Retracted lift capacity at 70 inches off tailboard
• 17,000lb. Extended lift capacity at 149 inches off the tailboard
• Non-Proportional Remote

S130 Outrigger w/ Low Profile Scissor-Style Outriggers
– Outriggers Footprint 112-inch-long x 220 inches wide
– Upgrade – Includes six (6) Outrigger 24 inch square Pads

Operator safety is top priority, so this JFB unit is equipped with Driver and Passenger Side Emergency Stop (E-Stop) Controls

Body:  274 5TS

Tunnel Toolbox with Battery Compartment:
1 56" Tunnel for Steer

Lighting Options:
1 Whelen Amber LED 72" Light Bar
1 Lower Hook-up Lights LED (Pair)
1 Upper Hook-up Lights LED (Pair)
1 Upper Work Lights LED (Pair) (Requires Pylon Wing Lights/Brackets)
1 Underlift Light LED1Strobe Light Kit (1-Pair Front/1-Pair Rear/1-Pair Left Body Side/1-Pair Right Body Side)

Light Pylon Options:
1 22" Whelen LED Amber Wing Lights with Mounting Brackets (Pair)

Power Take-off (PTO) Options:
1 PTO E/H 895HAFJW-B5AF A4700
1  GPM Hydraulic Pump 25 GPM

Wireless Control:
1 12-Function Proportional Wireless Paddle Swing Belly Remote
1 6 Function Non Proportional Hand held for U/L

Tow Options:
1 7" Fork Risers
1 5th Wheel Attachment

JFB Gold Storage:

JFB 5 Axle 56” Painted Toolbox w/ Top Battery
A Rotary Chain Rack
– Patent Pending Chain Carousel
– Free rotation with locking mechanism
Chain Binder Storage Compartment
– 4 Designated places for standard chain binders
Tilt Down Drawers
– 1  tilt down drawers each with 180 lbs. capacity (size 36” x 43”)
Snatch Block Storage Spaces
– 8 designated adjustable size places for snatch blocks
Shackle Storage Spaces
– 24 “peg board” style hooks for shackle placement
A C-Tech Brand Toolbox
– All aluminum construction with powder coated finish
A Storage Compartment for Recovery Tools
– Space for an axe
– Storage for a sledge hammer Up to 12 lb.
– Space for 36 inch bolt cutters
Storage Shelves for Miscellaneous Tools
– Aluminum shelves for variety of tools, rigging etc.
– Fully adjustable, can be removed from body
Dedicated Storage Spaces for the following type of equipment (equipment sold separately):
– Traffic Cones accommodates 12 – 36” DOT approved cones
– Ladder
– Tow Light
– Wheel Chocks
– Bottle Jack
– Flashlight
– Fire Extinguisher
– Shovel
– Grizzly Bar
– Spreader Bar

Includes Optional Rigging:

Spreader Bar
JD112" 42K Spreader Bar

Spreader Bar Sling Kit:
2 8' Orange Round Sling
2 12' Blue Round Sling
1 1 1/2" Bow 1 5/8" Pin 30t Alloy Shackle
2  1/2" Bow 1 5/8" Pin 17t Alloy Shackle
2  1/2" Bow 1 5/8" Pin 12t Alloy Shackle

Level 2 Sling Kit:
2 4' Yellow Endless Loop
2 6' Yellow Endless Loop
2 8' Red Endless Loop
2 12' Red Endless Loop
2 12' Blue Endless Loop
2 16' Blue Endless Loop

Level 2 Chain Kit:
2 10'  3/8" Chain - Non Cradle Grab GR 70
2 20'  3/8" Chain - Non Cradle Grab GR 70
4 10'  3/8" Chain - Non Cradle Grab GR 100
4 10'  1/2" Chain - Non Cradle Grab GR 100
2 Ratcheting Chain Binders

Level 2 Shackle Kit:
2 1 1/4" Alloy Master Link
2 1" Screw Pin Shackle
6 1 1/4" Screw Pin Shackle
2 1 1/2" Screw Pin Shackle

Snatch Block Kit:
2 6" 8T Snatch Block
2 10" 12T Snatch Bock
